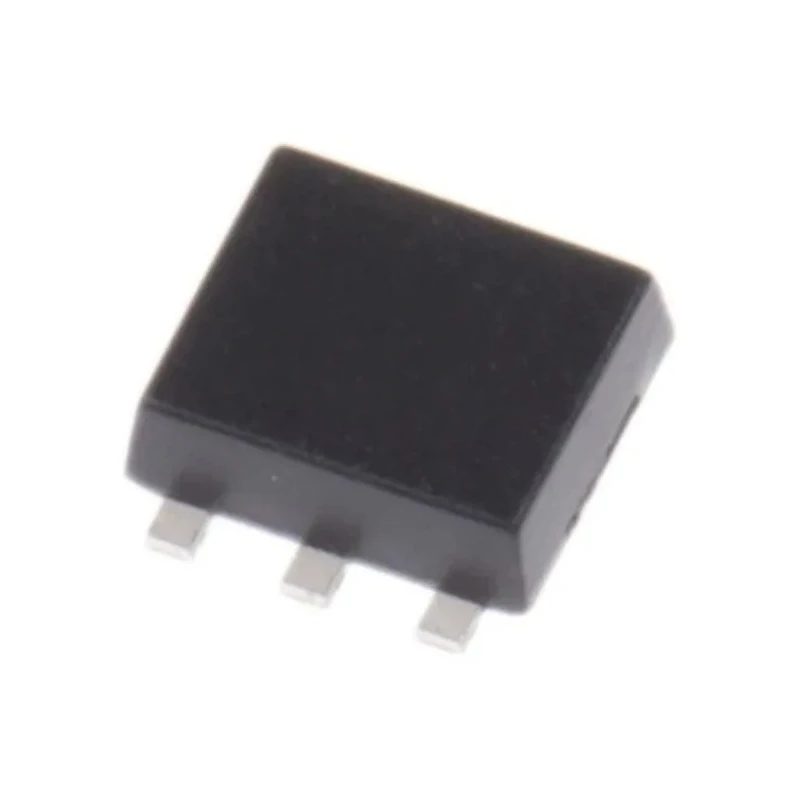

Toshiba Inverter IC 5-Pin SOT-553 Surface Mount TC7SZ04FE

Toshiba TC7SZ04FE is an inverter integrated circuit designed for logic inversion applications in electronic circuits. It is housed in a compact 5-pin SOT-553 surface mount package, enabling easy integration into modern PCB assemblies.

This device functions with a wide operating voltage range of 1.65 V to 5.5 V, making it suitable for varied power environments. It provides a high output current capability of ±24 mA at 3.0 V, ensuring robust performance for driving loads.

The inverter IC operates efficiently over a broad temperature range from -40°C to 125°C, making it ideal for automotive and industrial applications. It features a maximum propagation delay time of 6 ns at typical load conditions, supporting high-speed signal processing needs.

The TC7SZ04FE inverter includes advanced features like 5.5 V tolerant inputs and power down protection output for enhanced reliability and protection in complex circuits. The logic family of this chip is LMOS, with one logic element per chip, optimized for CMOS input compatibility.

Certified to meet automotive quality standard AEC-Q100, this inverter IC ensures dependable performance in stringent environments such as automotive electronics, industrial controls, and advanced instrumentation.

Wide operating voltage range from 1.65 V to 5.5 V. High output current of ±24 mA at 3.0 V VCC. Operating temperature range of -40°C to 125°C. Compact 5-pin SOT-553 surface mount package. 5.5 V tolerant inputs and power down protection output.

High-speed operation with propagation delay time of 6 ns. Automotive standard AEC-Q100 compliant. Logic family LMOS with CMOS input type.

This Toshiba inverter IC is suited for a broad range of industrial, automotive, and electronic manufacturing applications requiring reliable logic inversion and signal conditioning. It fits modern surface mount manufacturing lines and supports designs demanding high speed and temperature resilience.
