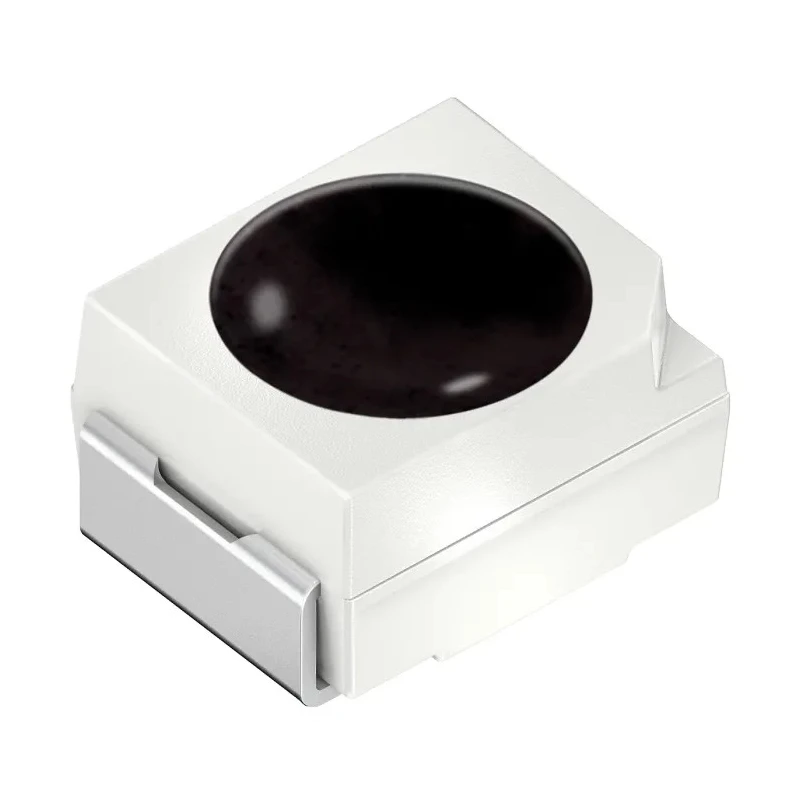

ams OSRAM TOPLED 120° Infrared Phototransistor Surface Mount 2-Pin PLCC Package SFH 320 FA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.4mm |
| Brand | ams OSRAM |
| Height | 2mm |
| Length | 3.4mm |
| Model | SFH 320 FA |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | TOPLED |
| Maximum Operating Temperature | 100°C |
| Package Type | PLCC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | IEC 62471:2006 |
| Number of Pins | 2 |
| Typical Fall Time | 7μs |
| Automotive Standard | AEC-Q101 |
| Peak Wavelength | 980nm |
| Spectrums Detected | Infrared |
| Angle of Half Sensitivity | 120 ° |
| Collector Current | 15mA |
| Standards/ApprovalsIEC 62471 | 2006 |
| IEC 62471 | 2006 |
| Maximum Light Current | 16μA |
| Maximum Dark Current | 50nA |
| Collector Emitter Voltage | 35V |
| Half angle | 60° |
Key Features
- Detects infrared spectrum with peak wavelength at 980 nm.
- Exhibits high linearity and fast switching times with typical rise and fall times of 7 microseconds.
- Operates reliably in temperatures from -40°C up to 100°C.
- Maximum collector current is 15 mA with maximum light current of 16 µA and dark current of 50 nA.
- Compact dimensions of 3.4 mm length, 3 mm width, and 2 mm height in a PLCC-2 package.
- Suitable for surface mount applications with robust construction compliant to IEC 62471 and automotive standard AEC-Q101.
- Clear or daylight diffused lens for flexible integration into electronic assemblies.
Product Description
ams OSRAM SFH 320 FA is a high-quality infrared phototransistor from the TOPLED® series designed for reliable detection of infrared light in electronic applications. This device is housed in a compact surface mount 2-pin PLCC package featuring a wide 120° half angle for sensitivity and high linearity, making it suitable for precision optoelectronic circuits.
The phototransistor detects infrared light with a peak wavelength of 980 nm, ensuring efficient performance in infrared sensing and communication applications. With typical rise and fall times of 7 microseconds, it provides rapid response suitable for fast switching and detection tasks.
Operating temperatures range from -40°C to 100°C, conforming to rigorous automotive standards such as AEC-Q101 and international safety standards IEC 62471:2006. Electrical characteristics include a maximum collector current of 15 mA, maximum light current of 16 µA, and very low dark current of 50 nA, which enhances sensitivity and reduces noise in detection circuits.
The device’s dimensions - 3.4 mm in length, 3 mm in width, 2 mm in height, and a 2.4 mm diameter lens - allow easy integration on PCBs where space and weight are important constraints. It is supplied in tape and reel packaging optimized for automated assembly processes.
Detects infrared spectrum with peak wavelength at 980 nm. High linearity with fast response times of 7 μs rise/fall time. Surface mount PLCC-2 package with 2 pins for SMD assembly. Wide 120° half sensitivity angle suitable for broad detection fields.
Complies with IEC 62471:2006 safety standard and automotive AEC-Q101 standard. Operates in a harsh temperature range from -40°C to 100°C. Low dark current of 50 nA ensures accuracy in low light conditions. Compact dimensions facilitate PCB integration in industrial, automotive, and consumer electronics.
This phototransistor is ideal for use in industrial and automotive infrared sensing applications, electronic instrumentation, automated assembly systems, and other optoelectronic devices requiring precise infrared detection in a robust and compact package.
Explore ams OSRAM products at EnvMart for industrial-grade infrared Phototransistors with guaranteed quality and compatibility.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared phototransistor is 980 nm, which allows it to efficiently detect infrared light.
This model exhibits typical rise and fall times of 7 microseconds, making it suitable for fast switching applications.
The maximum collector current for this phototransistor is 15 mA, which supports its operation in various electronic applications.
The dimensions of the PLCC package are 3.4 mm in length, 3 mm in width, and 2 mm in height, facilitating compact PCB integration.
It operates reliably in temperatures ranging from -40°C to 100°C, suitable for various environmental conditions.
This model complies with the IEC 62471:2006 safety standard and the automotive AEC-Q101 standard, ensuring its reliability in sensitive applications.
It is supplied in tape and reel packaging, which is optimized for automated assembly processes.
The angle of half sensitivity for this phototransistor is 120°, allowing for broad detection fields.
The maximum light current for this model is 16 µA, which enhances its sensitivity in detection circuits.
This phototransistor is designed for surface mount applications, making it suitable for compact electronic assemblies.
The maximum dark current for this phototransistor is 50 nA, which helps improve accuracy in low light conditions.
The SFH 320 FA has 2 pins, designed for SMD assembly in electronic circuits.
