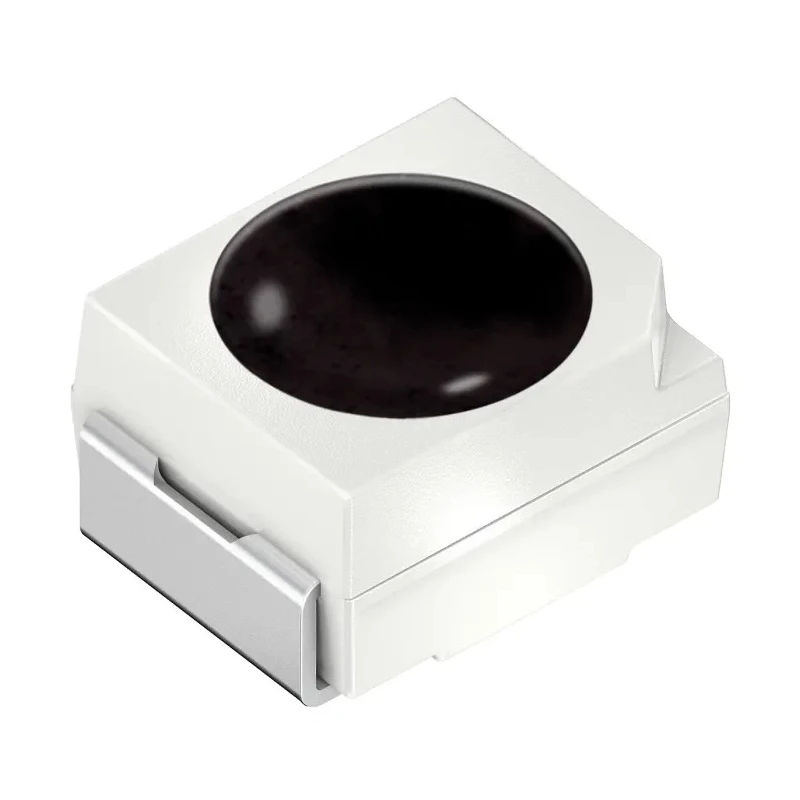

ams OSRAM TOPLED 120 ° Infrared Phototransistor, Surface Mount 2-Pin PLCC Package SFH 320 FA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.4mm |
| Brand | ams OSRAM |
| Height | 2mm |
| Length | 3.4mm |
| Model | SFH 320 FA |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | TOPLED |
| Maximum Operating Temperature | 100°C |
| Package Type | PLCC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | IEC 62471:2006 |
| Number of Pins | 2 |
| Typical Fall Time | 7μs |
| Automotive Standard | AEC-Q101 |
| Peak Wavelength | 980nm |
| Spectrums Detected | Infrared |
| Angle of Half Sensitivity | 120 ° |
| Collector Current | 15mA |
| Standards/ApprovalsIEC 62471 | 2006 |
| IEC 62471 | 2006 |
| Maximum Light Current | 16μA |
| Maximum Dark Current | 50nA |
| Collector Emitter Voltage | 35V |
| Half angle | 60° |
Key Features
- The phototransistor operates with a peak wavelength of 980nm.
- It features a low typical fall and rise time of 7 microseconds each for fast switching.
- Maximum collector current is 15mA with a collector-emitter voltage of 35V.
- Maximum dark current is 50nA ensuring high sensitivity in low-light conditions.
- Suitable for surface mounting with a compact PLCC-2 package and 2 pins.
- Thermal operating range from -40°C up to 100°C supports diverse industrial environments.
- Typical applications include detection in industrial automation, electronic instrumentation, and optoelectronic systems.
Product Description
ams OSRAM SFH 320 FA is a high-performance infrared phototransistor designed for surface mounting in a 2-pin PLCC package. This phototransistor belongs to the TOPLED® series known for its high linearity and robust surface mount construction. It provides excellent infrared sensitivity with a peak detection wavelength of 980nm and a wide half angle sensitivity of 120°, enabling reliable detection of infrared signals over a broad field.
With its fast typical rise and fall times of 7 microseconds, it is ideal for high-speed switching applications. The device handles a maximum collector current of 15mA and withstands collector-emitter voltages up to 35V. The typical dark current of 50nA ensures high signal-to-noise ratio, making it suitable for precise electronic measurement and control tasks.
The phototransistor's compact dimensions (length 3.4mm, width 3mm, height 2mm, diameter 2.4mm) along with surface mount PLCC-2 package support easy integration into densely populated PCBs. It is built to operate reliably across a wide temperature range from -40°C to 100°C, making it suitable for automotive and industrial environments meeting the AEC-Q101 automotive qualification standards.
This device is compliant with IEC 62471:2006 photobiological safety standards ensuring safe operation in various industrial and commercial applications. Applications include optoelectronic sensing, automation control, object detection, and electronic instrumentation.
High infrared sensitivity at 980nm peak wavelength. Fast response with 7μs fall and rise times. Robust surface mount PLCC-2 package with 2 pins. Wide operating temperature range from -40°C to 100°C. AEC-Q101 automotive standard compliant for enhanced reliability.
IEC 62471:2006 photobiological safety certification. Compact and lightweight for space-constrained electronic devices. Explore more reliable Phototransistors and optoelectronics at EnvMart for your industrial and electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The phototransistor operates with a peak wavelength of 980nm, making it highly sensitive to infrared light.
This model can handle a maximum collector current of 15mA, suitable for various electronic applications.
It features a low typical rise and fall time of 7 microseconds each, allowing for fast switching capabilities.
The dimensions of the PLCC package are 3.4mm in length, 3mm in width, and 2mm in height, with a diameter of 2.4mm.
It operates reliably across a wide temperature range from -40°C to 100°C, making it suitable for diverse environments.
This model supports surface mounting, which facilitates integration into densely populated PCBs.
It is compliant with IEC 62471:2006 photobiological safety standards, ensuring safe operation in various applications.
The SFH 320 FA has 2 pins, which is typical for its PLCC package design.
The maximum collector-emitter voltage is 35V, allowing it to be used in various electronic circuits.
Typical applications include detection in industrial automation, electronic instrumentation, and optoelectronic systems.
The phototransistor has a wide half angle sensitivity of 120°, enabling reliable detection of infrared signals.
It complies with the AEC-Q101 automotive standard, enhancing its reliability for automotive applications.
