onsemi Schmitt Trigger Input CMOS Inverter 1 Element 5-Pin TSOP Surface Mount 2-6V MC74HC1G14DTT1G

onsemi MC74HC1G14DTT1G is a high-speed CMOS inverter featuring Schmitt Trigger input technology, designed for surface mounting in a 5-pin TSOP package. It belongs to the 74HC1G14 series known for single-gate devices within the 74HC CMOS logic family. Operating voltage ranges from 2 to 6 volts, making it suitable for various low-power electronic circuits.

This device integrates one inverter element per chip equipped with Schmitt trigger inputs to enhance noise immunity and signal integrity. The inverter output is inverting, with a maximum propagation delay time of 15 nanoseconds at capacitive load. The maximum output current for high logic level is -2.6mA and for low logic level is 2.6mA, ensuring effective switching performance.

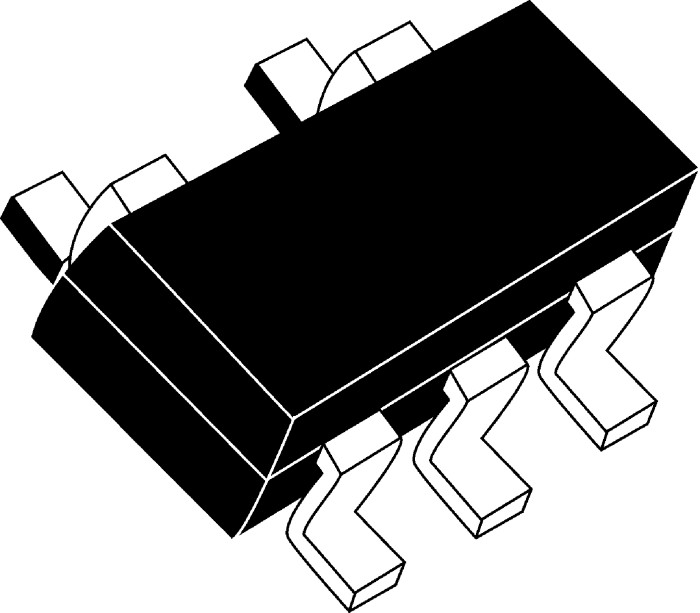

The compact TSOP 5-pin surface mount package measures approximately 3mm by 1mm by 1mm, enabling space-efficient PCB layouts in industrial, automotive, and consumer electronics applications. It is compliant with automotive standard AEC-Q100 for reliability in harsh environments and supports operating temperatures from -55°C to 125°C, making it suitable for automotive and industrial temperature demands.

Safety and environmental standards are maintained with UL 94 V-0 flammability rating and RoHS compliance, ensuring the product's suitability for modern manufacturing protocols. The onsemi MC74HC1G14DTT1G inverter is compatible with CMOS level inputs and outputs, facilitating its integration into a range of logic circuit designs.

This device is ideal for use in industrial automation system controls, signal processing, embedded system designs, and automotive electronics requiring robust inverter logic with Schmitt trigger inputs. The small footprint TSOP package aids in high-density circuit designs.

Explore more logic ICs, semiconductor devices, and surface mount components in EnvMart’s Electronics & Electricals category to enhance your designs with quality and reliability. High-speed CMOS logic operation with Schmitt Trigger input.

Surface mount 5-pin TSOP package for space saving designs. Wide operating voltage range from 2V to 6V. Automotive standard AEC-Q100 compliance and extended temperature range. UL 94 V-0 flammability rating and RoHS compliant.

Single inverter element per chip with inverting output. Typical propagation delay time of 15ns ensuring fast switching. Compatible with CMOS logic input and output levels.
