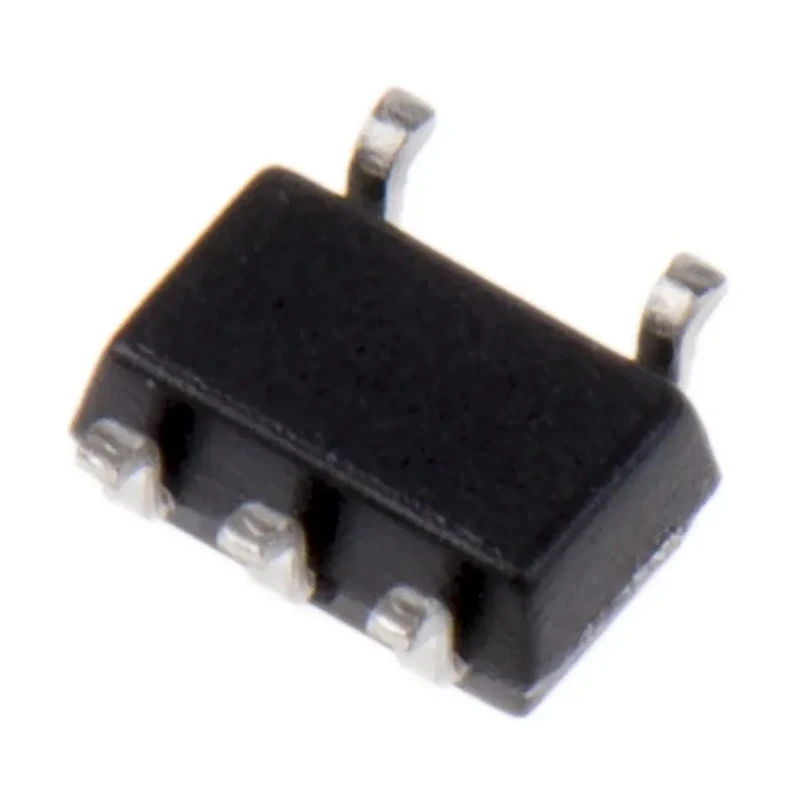

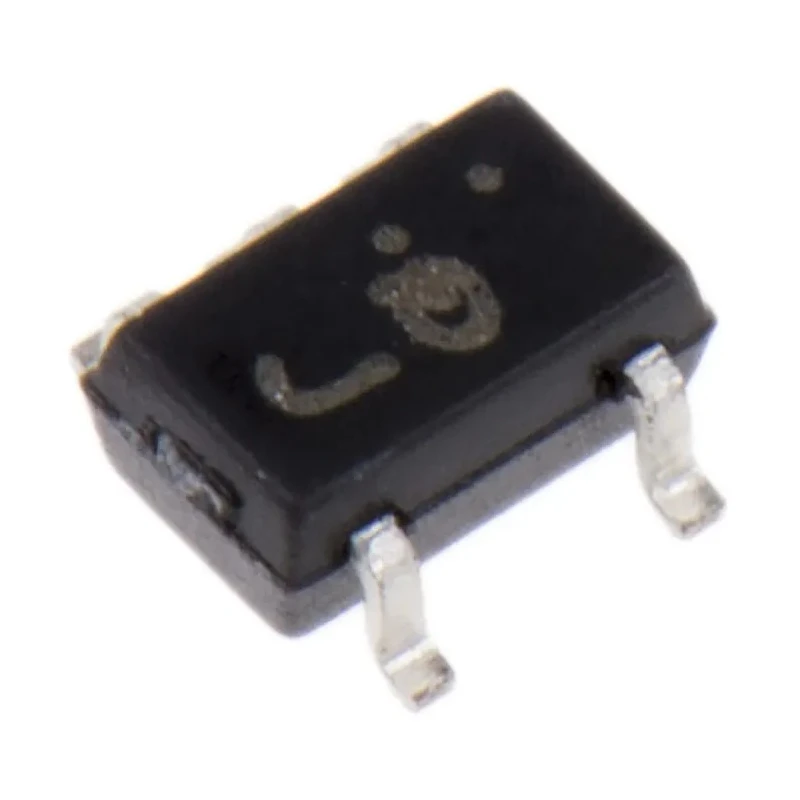

onsemi Voltage Level Shifter Voltage Level Translator 2 Low Voltage 5-Pin SC-88A NLSV1T34DFT2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 2.2mm |
| Model | NLSV1T34DFT2G |
| Mount Type | Surface |
| Output type | 3 State |
| Series | NLSV1T34 |
| Maximum Operating Temperature | 85°C |
| Package Type | SC-88A |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Number of Elements per Chip | 2 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 4.5V |
| Logic Family | Translator |
| Logic Function | Voltage Level Translator |
| Minimum Supply Voltage | 900mV |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 3.3ns |
| Direction Type | Uni-Directional |
| Maximum Low Level Output Current | 24mA |
| Translation | Low Voltage |
Key Features
- This device operates with a minimum supply voltage of 0.9V and a maximum supply voltage of 4.5V.
- It provides 3-state output with a maximum low-level output current of 24mA and a maximum high-level output current of -24mA.
- The maximum propagation delay at capacitive load is 3.3 nanoseconds, ensuring fast signal translation.
- Designed for operation in a wide temperature range from -40°C to 85°C, suitable for automotive applications with AEC-Q100 standard compliance.
- The compact package size measures 2.2mm in length and 1mm in height, optimized for surface mounting.
- Its low voltage operation translates logic levels efficiently for modern low voltage electronics.
Product Description
onsemi NLSV1T34DFT2G is a high-performance voltage level shifter and translator IC designed for translating logic signals between different voltage domains. This 2-element device supports uni-directional translation and comes in a compact 5-pin SC-88A surface mount package, making it ideal for space-constrained electronic applications.
The device operates with a minimum supply voltage of 0.9V and a maximum of 4.5V, with a maximum propagation delay of 3.3ns at capacitive load, facilitating high-speed signal translation in digital circuits. It features 3-state outputs with up to 24mA output current capabilities, suitable for driving various digital loads.
Operating reliably over a temperature range from -40°C to 85°C, the NLSV1T34DFT2G complies with the automotive standard AEC-Q100, ensuring robustness in automotive-grade environments. Its small package footprint of 2.2mm by 1mm further aids in PCB space optimization, ideal for compact designs.
This voltage level shifter is widely applicable in industrial, automotive, telecommunications, and consumer electronics for level translation, signal interfacing, and logic voltage compatibility purposes where low voltage operation and reliability are essential.
This IC supports uni-directional logic voltage translation between low voltage domains. Designed for surface mounting with a small SC-88A package. Provides fast propagation delay of 3.3ns for high-speed applications. Operates within a temperature range of -40°C to 85°C, fulfilling automotive reliability requirements.
Complies with AEC-Q100 automotive standard for quality assurance. Compact dimensions support space-efficient circuit board layouts. Explore more semiconductor components including Voltage Level Shifters and logic ICs at EnvMart, serving diverse industrial, automotive, and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 4.5V.
It operates reliably in temperatures as low as -40°C.
The maximum propagation delay time at capacitive load is 3.3 nanoseconds.
This model features a 3-state output.
The package measures 1mm in height and 2.2mm in length.
The maximum low-level output current is 24mA.
It complies with the AEC-Q100 automotive standard.
It is suitable for applications in industrial, automotive, telecommunications, and consumer electronics for level translation and signal interfacing.
This unit supports uni-directional voltage translation.
This device contains 2 elements per chip.
The minimum supply voltage for this model is 0.9V.
It is designed for surface mounting.
