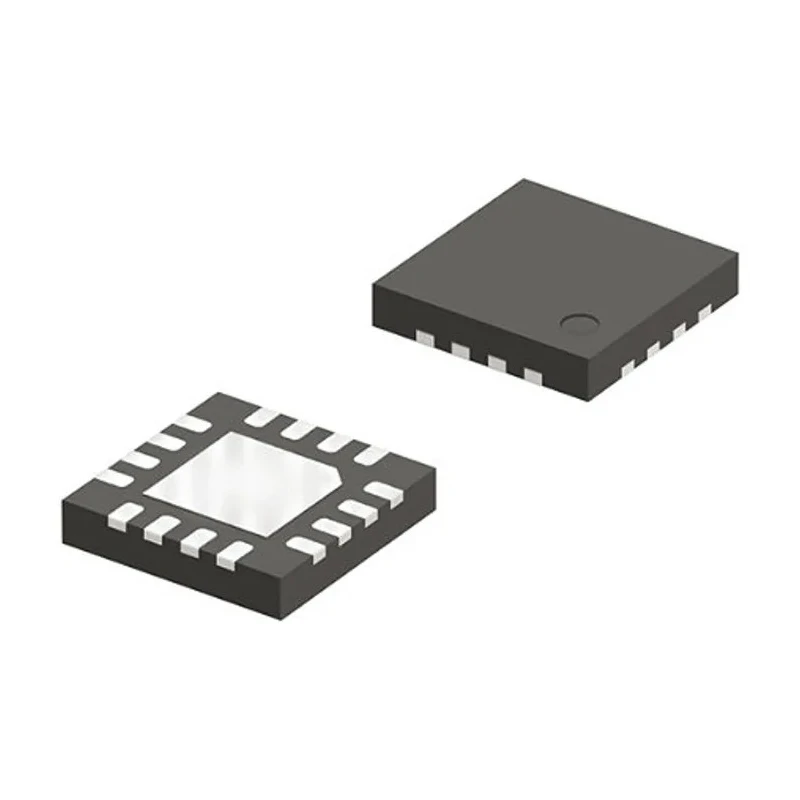

onsemi Voltage Level Shifter Signal Translator 8 Bi-Directional 16-Pin UMLP FXL4TD245UMX

The onsemi FXL4TD245UMX is a high-performance Voltage Level Shifter Signal Translator designed to provide bi-directional logic level shifting with 8 elements contained within a compact 16-pin UMLP surface-mount package.

Operating on a supply voltage range of 1.1 V to 3.6 V, this device delivers reliable signal translation with a propagation delay time of 22 nanoseconds at the specified load capacitance. Its bi-directional voltage translation capability makes it well-suited for interfacing different voltage domains in digital electronic systems.

With a maximum low-level output current of 24 mA and maximum high-level output current of -24 mA, the FXL4TD245UMX supports robust signal driving capability. The 3-state output provides improved signal control, which is critical in bus-oriented systems or multiplexed bus configurations commonly found in industrial electronics and embedded designs.

The device operates reliably across a broad temperature range from -40 degrees Celsius up to 85 degrees Celsius, meeting the demands of industrial and commercial applications. Its small form factor UMLP package, with dimensions of 500 microns in height and 2.6 millimeters in length, enables space-saving PCB layouts and is optimized for surface mounting.

This level shifter IC is based on the FXL logic family technology, offering low power consumption and efficient digital signal translation. It finds applications in industrial electronics, embedded systems, communication devices, and other semiconductor-based solutions where voltage domain interfacing is necessary.

Operates with supply voltages from 1.1 V to 3.6 V for flexible integration. 8 elements integrated for effective signal translation. Bi-directional translation for compatibility across voltage domains. 3-state output supports bus and multiplexed systems.

Compact 16-pin UMLP surface mount package. Wide operating temperature range ensures industrial usability. High drive capability with 24 mA output current ratings.

The FXL4TD245UMX is a trusted solution in the semiconductor category for voltage level shifting, combining efficient design and reliable signal integrity for advanced electronics manufacturing and assembly projects. Explore more onsemi semiconductor devices and logic ICs through EnvMart for your industrial and laboratory needs.
