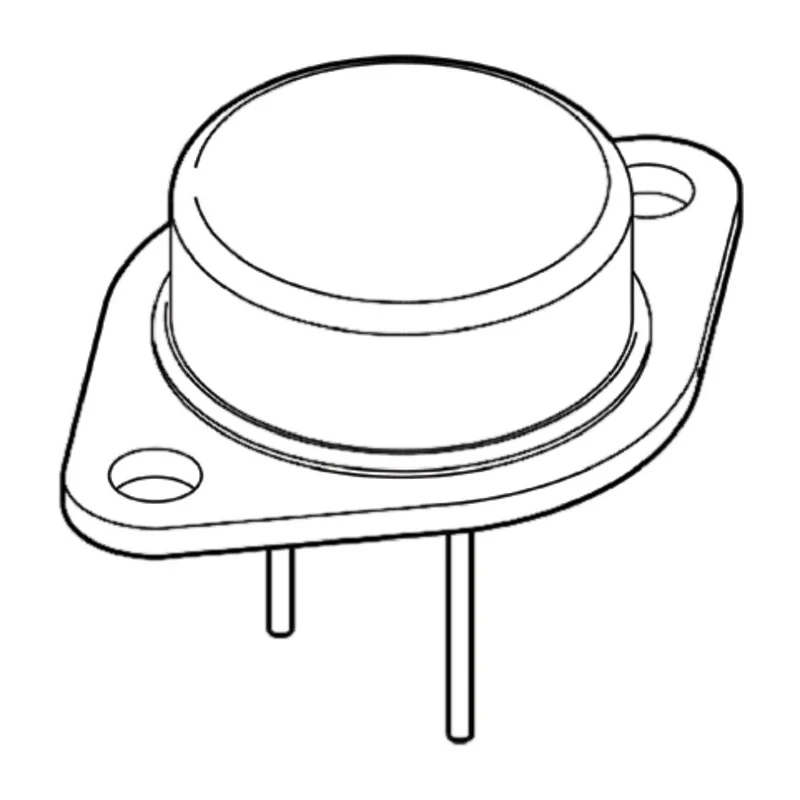

onsemi PNP Power Transistor TO-204AA 15 A 120 V 180 W 2-Pin MJ15016G

onsemi MJ15016G is a PNP power transistor featuring a TO-204AA package type that supports a maximum DC collector current of 15 amperes and a collector-emitter voltage of 120 volts. It is designed for through-hole mounting and suited for high-power industrial electronic applications requiring reliable and efficient transistor switching and amplification.

This single transistor configuration offers robust power dissipation of up to 180 watts, enabling usage in demanding power circuits. With a high maximum operating temperature of 200°C and a minimum operating temperature of -65°C, the transistor ensures stable performance across a wide temperature range, suitable for industrial environments, automotive electronics, and power management systems.

The MJ15016G's electrical characteristics include a maximum collector-base voltage of 200 volts, a minimum DC current gain of 20, and a maximum emitter-base voltage of 7 volts. Its maximum transition frequency of 1 MHz supports fast switching in power electronic applications. The device features 2 pins and compact dimensions (39.37 mm length, 27.67 mm width, 20.7 mm height) for ease of integration on standard PCBs.

This transistor is classified under the MJ15016 series and is manufactured adhering to onsemi quality standards, though it does not carry special automotive certifications. It is ideal for applications in industrial power supplies, motor controls, and other power semiconductor circuits requiring robust PNP transistors.

Maximum DC collector current of 15 amperes for robust power handling. Maximum collector-emitter voltage rating of 120 volts ensuring operational safety. High power dissipation capability of 180 watts for demanding environments.

Through-hole mount type with TO-204AA package for secure and reliable installation. Single transistor configuration with PNP polarity for versatile circuit integration. Operates reliably in temperature range from -65°C to 200°C for industrial applications.

Maximum transition frequency of 1 MHz suitable for switching operations. Pin count is 2, simplifying PCB design and connections. Compact dimensions: length 39.37 mm, width 27.67 mm, height 20.7 mm. Designed with a minimum DC current gain (hFE) of 20 for effective amplification.
