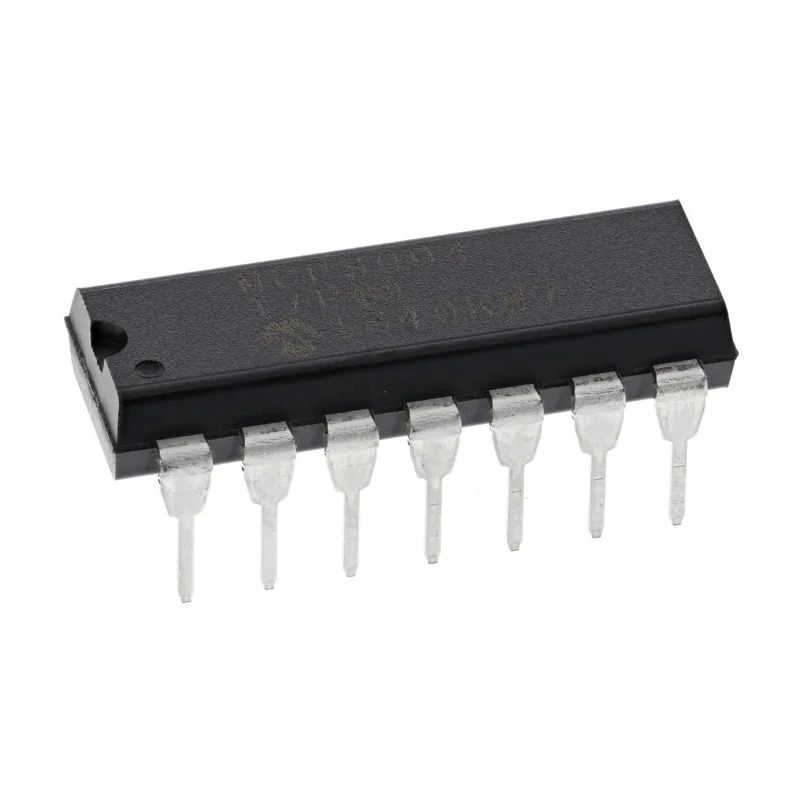

Microchip 4 Channel 10 Bit Analogue to Digital Converter 200 ksps, 14-Pin PDIP MCP3004-I/P
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 10 bit |
| Brand | Microchip |
| Height | 9.14mm |
| Length | 19.69mm |
| Model | MCP3004-I/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Sampling rate | 200ksps |
| Series | MCP3004 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 4 |
Key Features
- Offers 10 bit resolution using successive approximation register (SAR) architecture.
- Supports 4 analogue input channels through SPI interface.
- Operates with a supply voltage range of 5 to 5.5 V.
- Built for through-hole mounting with a compact 14-pin PDIP package.
- Can operate in temperature range from -40°C to 85°C suitable for automotive applications.
- Compliant with RoHS standards ensuring environmentally safe design.
- Meets automotive standard AEC-Q100 for reliability in automotive environments.
Product Description
Microchip MCP3004-I/P is a 4 channel 10 bit analogue to digital converter featuring successive approximation register (SAR) architecture, delivering accurate conversion at a sampling rate of up to 200 ksps. It is designed for use in electronic systems requiring voltage input digitization through a SPI interface.
This device is housed in a 14-pin PDIP package ideal for through-hole mounting on printed circuit boards, providing reliable connections and ease of integration.
Operating voltage ranges from a minimum of 5V to a maximum of 5.5V, with ambient operating temperatures from -40°C to 85°C. The MCP3004-I/P satisfies automotive standard AEC-Q100, making it suitable for automotive electronics and demanding industrial environments.
The compact dimensions (19.69 mm length, 7.11 mm width, and 9.14 mm height) allow it to fit in dense circuit layouts without compromising performance. The device is RoHS compliant, ensuring it meets environmental protection regulations.
Offers 10 bit resolution using SAR architecture for precise analogue to digital conversion. Supports 4 analogue input channels interfaced via SPI protocol. Designed for through-hole mounting in a 14-pin PDIP package footprint.
Operating temperature rated from -40°C to 85°C for harsh conditions. Power supply voltage range is 5 to 5.5 volts for stable operation. Meets strict automotive standard AEC-Q100 ensuring high reliability. RoHS compliant for environmental safety in manufacturing.
Compact physical dimensions facilitate easy PCB integration.
This analogue to digital converter is widely used in industrial equipment, automotive electronics, embedded systems, instrumentation, and control systems where precise and fast voltage measurements are needed. Its robust design and approved automotive reliability standards also make it ideal for transportation and manufacturing applications.
Explore more semiconductor and analogue to digital conversion solutions on EnvMart for enhanced industrial and electronic product sourcing.
Explore more products in our Analogue to Digital Converters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It offers a resolution of 10 bits using successive approximation register (SAR) architecture.
The maximum sampling rate is 200 ksps.
It operates with a supply voltage range of 5 to 5.5 volts.
It supports 4 analogue input channels through a SPI interface.
The dimensions are 19.69 mm in length, 7.11 mm in width, and 9.14 mm in height.
It operates within a temperature range from -40°C to 85°C.
It is designed for through-hole mounting in a 14-pin PDIP package.
Yes, it is RoHS compliant, ensuring environmentally safe design.
It meets the automotive standard AEC-Q100 for reliability in automotive environments.
It uses a SPI interface for communication.
The country of origin is India.
It is suitable for applications in industrial equipment, automotive electronics, embedded systems, instrumentation, and control systems.
