onsemi Voltage Level Shifter Buffer 2 CMOS, 20-Pin TSSOP 74LCX244MTC

Free Delivery in India | Lowest Global Shipping Charges

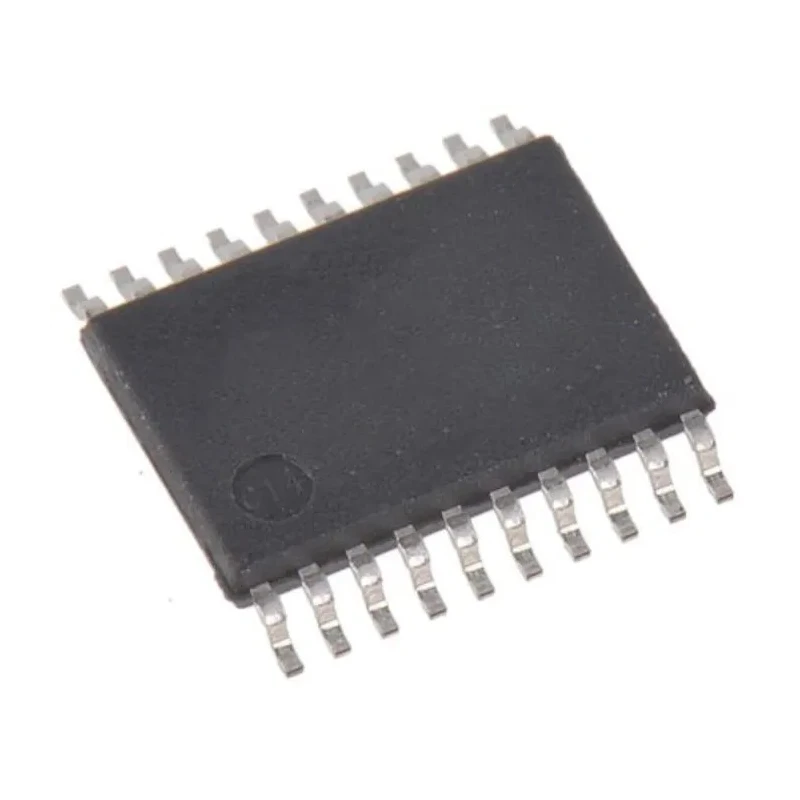

onsemi Voltage Level Shifter Buffer 2 CMOS, 20-Pin TSSOP 74LCX244MTC

Name: onsemi Voltage Level Shifter Buffer 2 CMOS, 20-Pin TSSOP 74LCX244MTC
Brand: onsemi
SKU: 157567
Price: 0.56 USD
Availability: InStock



Category Voltage Level Shifter Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.05mm
Length	6.6mm
Model	74LCX244MTC
Mount Type	Surface
Output type	3 State
Series	74LCX244
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Pin Count	20
Number of Elements per Chip	2
Maximum Supply Voltage	3.6V
Logic Family	LCX
Logic Function	Buffer
Minimum Supply Voltage	2V
Maximum High Level Output Current	-24mA
Maximum Propagation Delay Time @ CL	9ns
Direction Type	Bi-Directional
Maximum Low Level Output Current	24mA
Translation	CMOS

Key Features

Operates with a minimum supply voltage of 2V and a maximum of 3.6V.
Features low propagation delay time of 9 nanoseconds ensuring high-speed operation.
Provides 3-state output buffers with ±24 mA output drive capability.
Supports 5V tolerant inputs and outputs for interfacing with 5V systems.
Operates in a wide temperature range from -40°C to 85°C for industrial applications.
Designed with patented noise and EMI reduction circuitry for stability.
Surface mount TSSOP package with dimensions 6.6mm length and 1.05mm height.

Product Description

onsemi 74LCX244MTC Voltage Level Shifter Buffer 2 CMOS 20-Pin TSSOP is an advanced CMOS technology logic IC designed to facilitate bi-directional voltage level shifting and buffering in electronic systems requiring 2.3V to 3.6V supply voltage operation.

It is specially built for low voltage applications that must interface with 5V signal environments, providing 5V tolerant inputs and outputs to prevent damage and ensure compatibility.

Operating temperature range from -40°C to 85°C makes it suitable for industrial and commercial electronics where environmental robustness is necessary. The device also incorporates patented noise and EMI reduction circuitry, minimizing electromagnetic interference and enhancing signal integrity during operation.

The 74LCX244MTC features a maximum propagation delay of 9 ns at typical load conditions, enabling high-speed digital logic performance. Its output current capability of ±24 mA supports driving moderate loads without additional buffering. Mounting is surface type with the TSSOP package that is compact, with a length of 6.6 mm and height of 1.05 mm, suitable for space-constrained PCB layouts.

This device is ideal for use in industrial machines, manufacturing equipment, communication devices, and other electronics requiring voltage level shifting and buffering of logic signals.

Operates at 2V to 3.6V supply voltage with 5V tolerant inputs/outputs. Bi-directional buffer with 3-state outputs for versatile signal control. Low propagation delay of 9 nanoseconds for fast switching. Robust operating temperature from -40°C to 85°C.

Compact 20-pin TSSOP surface mount package for PCB assembly. Includes patented noise and EMI reduction circuitry to enhance reliability. Supports live insertion and withdrawal improving field maintenance.

Explore our Semiconductor category at EnvMart for more logic ICs and Voltage Level Shifters by onsemi and other leading brands to support your industrial and electronic design needs.
