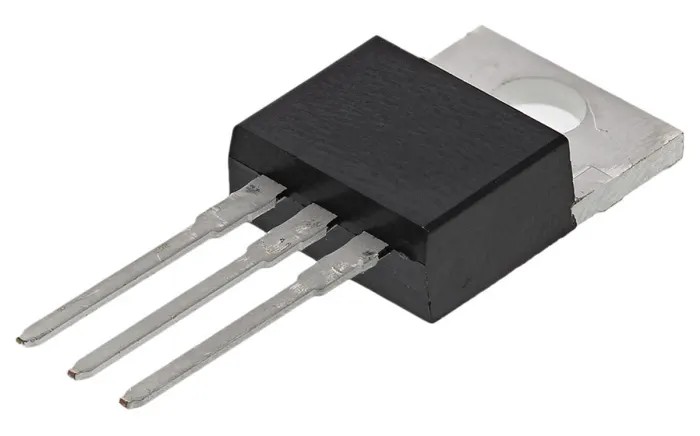

STMicroelectronics Through Hole 3-Pin TRIAC 8A 800V Gate Trigger 1.3V BTA08-600SWRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | BTA08-600SWRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 8A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 84A |
| Maximum Gate Trigger Current Igt | 10mA |
| Maximum Holding Current Ih | 15mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 1mA |
| Peak Gate Power Dissipation | 1W |
| STMicroelectronics Through Hole, 3-pin, TRIAC, 600V, Gate Trigger 1.3V 600VBrand | STMicroelectronics |
Key Features
- Supports a maximum gate trigger voltage of 1.3 volts for reliable switching.
- Configured with a TO-220 package and single configuration for easy PCB mounting.
- Operates between -40°C to 150°C, suitable for industrial temperature ranges.
- Features a low peak gate power dissipation of 1 watt, enhancing durability.
- Has a surge current rating of 84 amperes ensuring robustness under transient conditions.
- Pin count is 3 for standard through-hole applications.
- Maximum holding current is 15 milliamperes for stable operation.
- Repetitive peak off-state current is 1 milliampere, minimizing leakage.
Product Description
STMicroelectronics BTA08-600SWRG is a precision 3-pin TRIAC designed for through-hole mounting applications. It supports an average on-state current (Irms) of 8 amperes and withstands a repetitive peak reverse voltage (VDRM) of 800 volts. With a gate trigger voltage of 1.3 volts and maximum gate trigger current of 10 milliamperes, it ensures reliable and smooth switching in electronic circuits.
This TRIAC is housed in a TO-220 package type favoring efficient heat dissipation and easy assembly on printed circuit boards. It operates over a wide temperature range from -40°C to 150°C, making it suitable for demanding industrial environments.
Featuring a surge current capacity of 84 amperes, holding current of 15 milliamperes, and a low gate power dissipation of 1 watt, the device is engineered for robustness and reliable performance even under stress. Its 3-pin count and single configuration cater to various control applications.
Commonly used in power control applications such as motor speed regulation, lighting dimmers, and heater controls, this semiconductor component is essential in industrial, manufacturing, and HVAC control systems. The intrinsic characteristics offer efficiency, stability, and longevity.
Maximum repetitive peak reverse voltage of 800 volts for high voltage tolerance. Rated average on-state current at 8 amperes suitable for moderate load control. Wide operating temperature range enhances suitability in harsh environments.
Low gate trigger voltage and current for energy-efficient control. TO-220 package allows effective thermal management.
Available with reliable STMicroelectronics quality, the BTA08-600SWRG TRIAC is the preferred choice for industrial semiconductor applications in the Electronics & Electricals sector.
Explore advanced semiconductor components and discrete TRIACs in the Semiconductor category at EnvMart for your specialized industrial and power control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BTA08-600SWRG supports a rated average on-state current of 8 amperes.
It can withstand a repetitive peak reverse voltage of 800 volts.
The maximum gate trigger voltage for this model is 1.3 volts.
This TRIAC has a surge current rating of 84 amperes.
It operates within a temperature range of -40°C to 150°C.
This model is housed in a TO-220 package type.
The BTA08-600SWRG features a pin count of 3.
The maximum holding current for this model is 15 milliamperes.
The maximum gate trigger current is 10 milliamperes.
The peak on-state voltage is rated at 1.55 volts.
It supports through-hole mounting for easy PCB installation.
The country of origin for this TRIAC is India.
