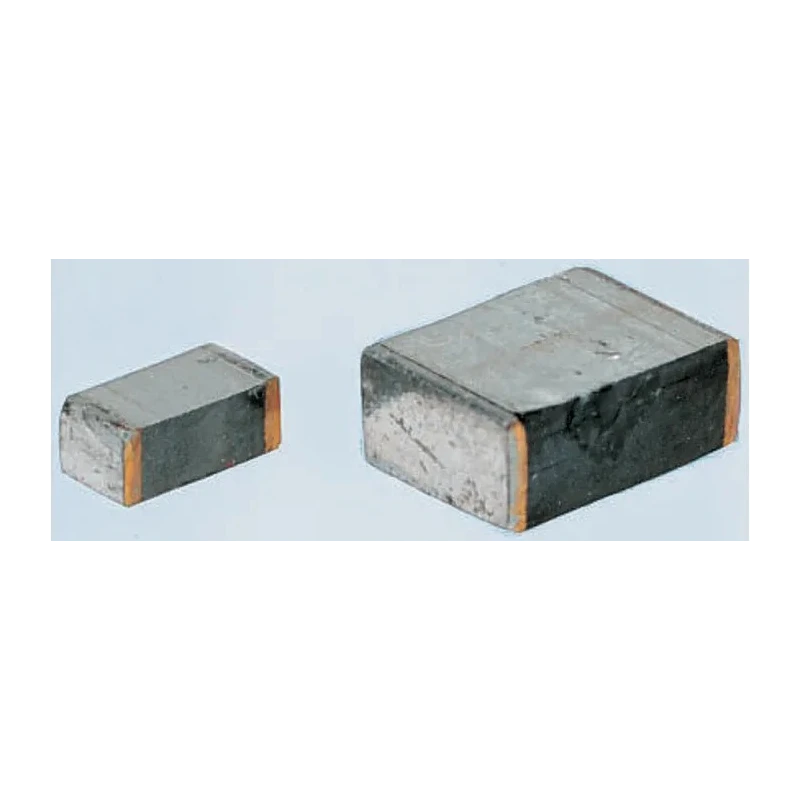

Panasonic ECWU(C) Film Capacitor 100 V dc 470 nF Surface Mount ECWU1474KCV

Panasonic ECWU1474KCV is a high-quality ECWU(C) series film capacitor designed for general electronic circuit use requiring 470 nF capacitance and 100 V dc rated voltage. This surface mount device features a compact and lightweight plastic film construction with a mould-less design, using stacked metallised PEN film as the dielectric to ensure stability and reliability under operational stress.

The capacitor supports a maximum operating temperature of 125°C, making it suitable for most industrial and commercial electronics applications including bypass and coupling functions. Its RoHS compliance guarantees adherence to environmental standards, crucial for modern manufacturing.

With precise dimensions of 7.7 mm in length, 5.5 mm in width, and 4 mm in height, this capacitor provides an efficient footprint compatible with automated PCB assembly and reflow soldering. This allows for improved production efficiency while maintaining compact device layouts.

The Panasonic ECWU1474KCV is specifically engineered for surface mount technology (SMT) and is ideal for use in industrial electronics, power supplies, communications equipment, and consumer electronics. It is not certified for automotive applications but is well suited for a wide range of commercial and industrial circuit designs requiring reliable capacitance and voltage performance.

Compact plastic film capacitor for surface mount applications. Rated voltage 100 V dc with 470 nF capacitance. Maximum operating temperature up to 125°C. Constructed with mould-less stacked metallised PEN film dielectric.

RoHS compliant for environmental safety. Dimensions: 7.7 mm x 5.5 mm x 4 mm for easy PCB mounting. Suitable for bypass and coupling in electronic circuits. Explore EnvMart for more Panasonic Film Capacitors and electronic passive components for optimized industrial and commercial electronics designs.
