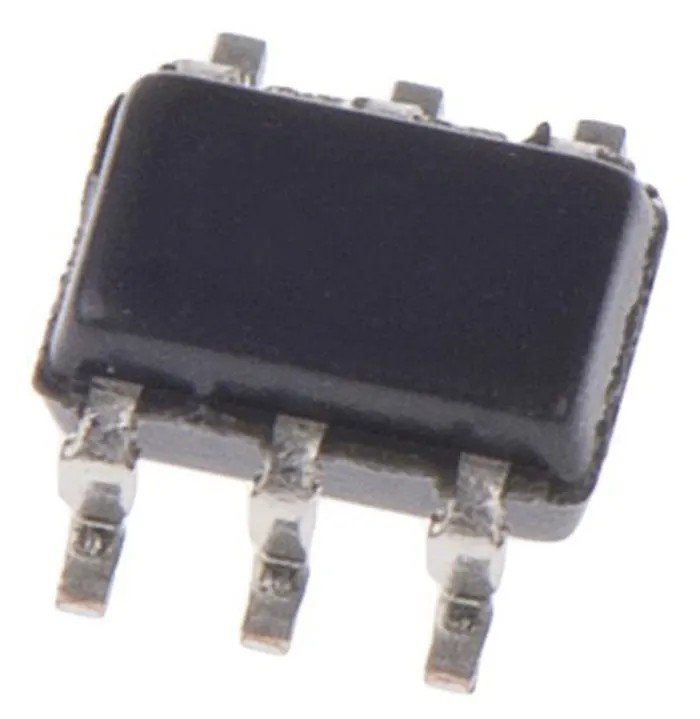

onsemi Rail to Rail Current Sensing Amplifier Single 6-Pin SC-70 NCS214RSQT2G
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 2.2mm |
| Model | NCS214RSQT2G |
| Mount Type | Surface |
| Output type | Rail to Rail |
| Series | NCS214 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 6 |
| Automotive Standard | AEC-Q101 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 2.2V |
| Supply Current | 60μA |
| GBP - Gain Bandwidth Product | 60kHz |
| CMRR - Common Mode Rejection Ratio | 105dB |
| Low Offset Drift | 0.5 μV/°C |
Key Features
- Wide common mode input range from -0.3 V to 26 V allows flexible system design.
- Low offset voltage of ±150 μV max ensures precise current measurement.
- Supply voltage range from 2.2 V to 26 V supports various applications.
- Low supply current of 60μA suitable for low power systems.
- Single channel device packaged in compact 6-pin SC-70 surface mount.
- Gain Bandwidth Product of 60 kHz for accurate amplification.
- Operating temperature range from -40°C to 125°C meets demanding environments.
- Automotive grade with AEC-Q101 certification for reliability.
Product Description
onsemi NCS214RSQT2G is a rail to rail current sensing amplifier designed as a single channel device in a 6-pin SC-70 compact surface mount package. It features a wide common mode input range of -0.3 V to 26 V and operates with a supply voltage from 2.2 V up to 26 V, offering great flexibility for high voltage current sensing applications.
With a low offset voltage of ±150 μV max and a low offset drift of 0.5 μV/°C, this amplifier ensures high accuracy current measurements across its operating temperature range from -40°C to 125°C. The device's gain bandwidth product of 60 kHz supports dynamic signal amplification requirements in various industrial circuits.
The supply current is a low 60μA, making it suitable for power sensitive systems. The output is rail to rail, enabling full utilization of the supply voltage range. The package type is SC-70 with 6 pins, optimized for space-constrained applications, and it mounts via surface mount technology.
This component meets automotive AEC-Q101 standard, assuring robust performance in automotive and other demanding environments. Typical applications include power adapters, LED power supplies, over current protection circuits, closed loop feedback in automotive systems, and power monitoring in laptop and smartphone chargers.
onsemi’s NCS214RSQT2G is engineered for high-side current sensing in high voltage systems using low ohm value current sense resistors. Its wide supply voltage range and high accuracy over temperature improve power efficiency and system reliability in commercial, automotive, and industrial uses.
Wide common mode input range improves system flexibility. Low offset voltage and drift ensure accurate sensing. Low supply current supports power efficient designs. Compact SC-70 package ideal for PCB space saving. Automotive AEC-Q101 qualification guarantees reliability.
Rail to rail output maximizes signal dynamic range. Single channel simplifies integration in current sensing systems. Suitable for power control and feedback circuits in diverse industries. Explore the Electronics & Electricals Semiconductors Amplifiers & Comparators Current Sensing Amplifiers category at EnvMart for more high-quality solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a wide common mode input range from -0.3 V to 26 V, enhancing system design flexibility.
This model is a single channel device, simplifying integration into current sensing systems.
It has a gain bandwidth product of 60 kHz, which supports accurate amplification for dynamic signals.
It is packaged in a compact SC-70 surface mount type, which is ideal for space-constrained applications.
The amplifier features a low offset voltage of ±150 μV max, ensuring precise current measurements.
It meets the automotive AEC-Q101 standard, ensuring reliability in automotive applications.
The SC-70 package has a height of 1 mm and a length of 2.2 mm, which contributes to its compact design.
