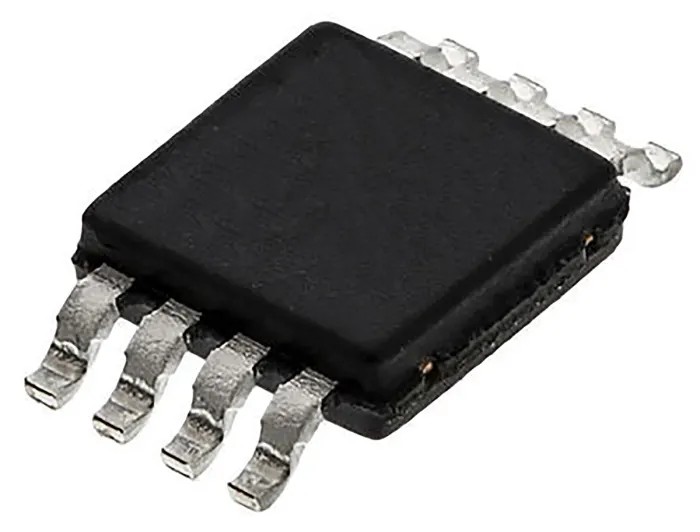

Texas Instruments Current Sensing Amplifier Single Channel 8-Pin MSOP INA200AIDGKT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.97mm |
| Length | 3mm |
| Model | INA200AIDGKT |
| Mount Type | Surface |
| Series | INA200 |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 1.8mA |
| GBP - Gain Bandwidth Product | 500kHz |
| CMRR - Common Mode Rejection Ratio | 123dB |
Key Features
- Operates on single power supply voltage ranging from 2.7V to 18V.
- Features a high Common Mode Rejection Ratio (CMRR) of 123dB for accurate current sensing.
- Supply current is low at 1.8mA ensuring energy-efficient operation.
- Compact surface mount MSOP package with 8 pins measuring 3mm length and 0.97mm height.
- Supports operating temperatures from -40°C to 125°C for robust industrial applications.
- Gain Bandwidth Product of 500kHz enabling high-speed and accurate amplification.
- Single channel design suitable for real-time current monitoring in power rails.
- Ideal for current and power measurement, system protection, feedback control, and high-accuracy monitoring.
Product Description
Texas Instruments INA200AIDGKT is a single channel current sensing amplifier housed in a compact 8-pin MSOP surface mount package. Operating with a single power supply voltage from 2.7V up to 18V, it provides an analogue voltage output proportional to the voltage drop across a low-value resistor, allowing precise current measurement in power rails.
This amplifier features an exceptionally high Common Mode Rejection Ratio (CMRR) of 123dB, ensuring minimal interference from common-mode voltages and enhancing measurement accuracy. The device operates with a low supply current of 1.8mA, making it energy efficient in embedded and portable systems.
The device's small form factor measures 3mm in length and 0.97mm in height, making it suitable for high-density PCB layouts. It supports a wide operating temperature range from -40°C to 125°C, providing reliability in harsh industrial, automotive, and commercial environments.
The gain bandwidth product of 500kHz supports responsive current sensing, suitable for real-time system protection, feedback control, and high-accuracy system monitoring. This amplifier measures current by sensing the voltage across a small resistor in the power rail and outputs an analogue voltage proportional to that measurement.
Applications for the INA200AIDGKT include power management, battery monitoring, motor control, and any system requiring precise current measurement and real-time feedback. Its surface mount design and robust specifications make it ideal for demanding industrial and electronic applications.
Operates from 2.7V to 18V single supply voltage. Common Mode Rejection Ratio (CMRR) of 123dB. Low supply current of 1.8mA. Compact 8-pin MSOP surface mount package. Operating temperature range from -40°C to 125°C. Gain Bandwidth Product of 500kHz.
Single channel current sensing amplifier. Suitable for system protection and feedback control applications. Explore more Current Sensing Amplifiers and semiconductor components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates on a single power supply voltage ranging from 2.7V to 18V.
The INA200AIDGKT features a high Common Mode Rejection Ratio (CMRR) of 123dB, which enhances measurement accuracy by minimizing interference from common-mode voltages.
The gain bandwidth product (GBP) of this unit is 500kHz, enabling high-speed and accurate amplification for current sensing applications.
It operates with a low supply current of 1.8mA, making it energy efficient for embedded and portable systems.
This amplifier has a compact surface mount package measuring 3mm in length and 0.97mm in height.
The INA200AIDGKT supports an operating temperature range from -40°C to 125°C, making it suitable for harsh industrial environments.
It is housed in an 8-pin MSOP surface mount package, suitable for high-density PCB layouts.
This model is a single channel current sensing amplifier, designed for precise current measurement.
It is ideal for applications such as power management, battery monitoring, motor control, and any system requiring precise current measurement and real-time feedback.
The maximum operating temperature for the INA200AIDGKT is 125°C, ensuring reliability in demanding conditions.
The minimum supply voltage for the INA200AIDGKT is 2.7V, allowing it to operate effectively in various applications.
The low supply current of 1.8mA contributes to energy-efficient operation, making it suitable for battery-powered and portable applications.
