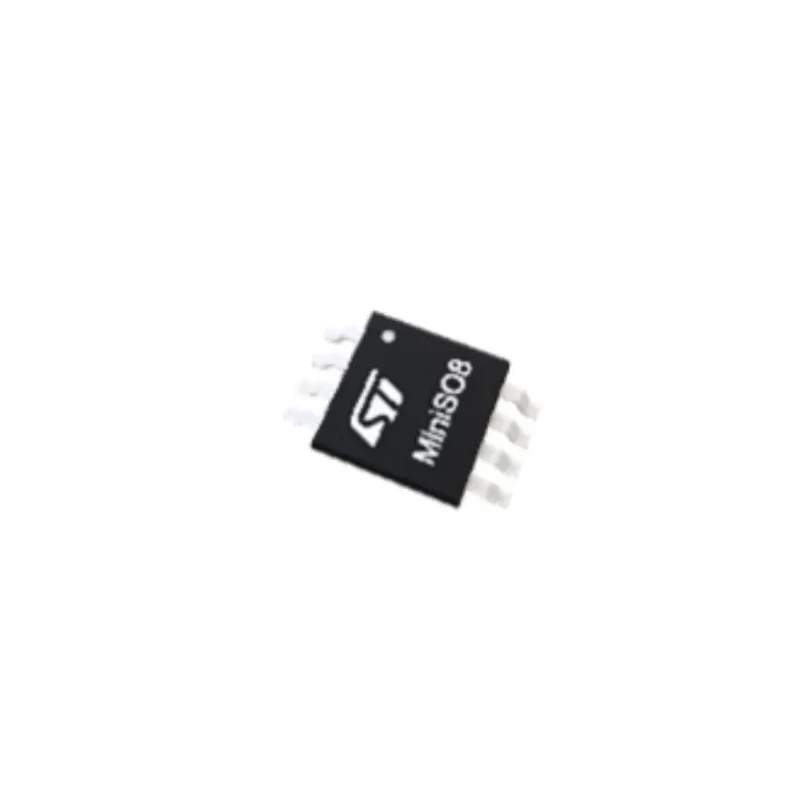

STMicroelectronics High-Side Current Sensing Amplifier Dual Channel 8-Pin MiniSO8 2.7-18 V Supply TSC200IST

STMicroelectronics TSC200IST is a high-side current sensing amplifier providing dual-channel analog voltage output with exceptional accuracy. It operates reliably over a wide supply voltage range from 2.7 V to 18 V, enabling use in diverse industrial and power management systems.

This dual amplifier can sense current via a shunt resistor with a high common mode rejection ratio of 120 dB, ensuring precise signal amplification even in electrically noisy environments. Its integrated amplification gain is 20 V/V.

The device features an internal 0.6 V voltage reference and an open-drain comparator with output latch, enabling adjustable threshold switching with external resistor dividers. The 8-pin MiniSO8 surface mount package is compact and suitable for high-density PCB designs.

Designed to operate over the industrial temperature range from -40° C to +125° C, the TSC200IST is well-suited for demanding applications including industrial automation, automotive current sensing, and power supply monitoring.

Operates at minimum supply voltage of 2.7 V and maximum of 18 V. Dual channel design supports concurrent sensing. High accuracy ensured by 120 dB common mode rejection ratio. Amplification gain fixed at 20 V/V for precise output.

Includes internal reference and latching comparator functionalities. Robust operation across -40 to 125 °C industrial temperature range. Compact MiniSO8 surface mount package with 8 pins.

This current sensing amplifier supports various electronics and power management systems, enhancing current measurement accuracy and system reliability. It is ideal for laboratory instruments, industrial control systems, automotive electronics, and similar applications.
