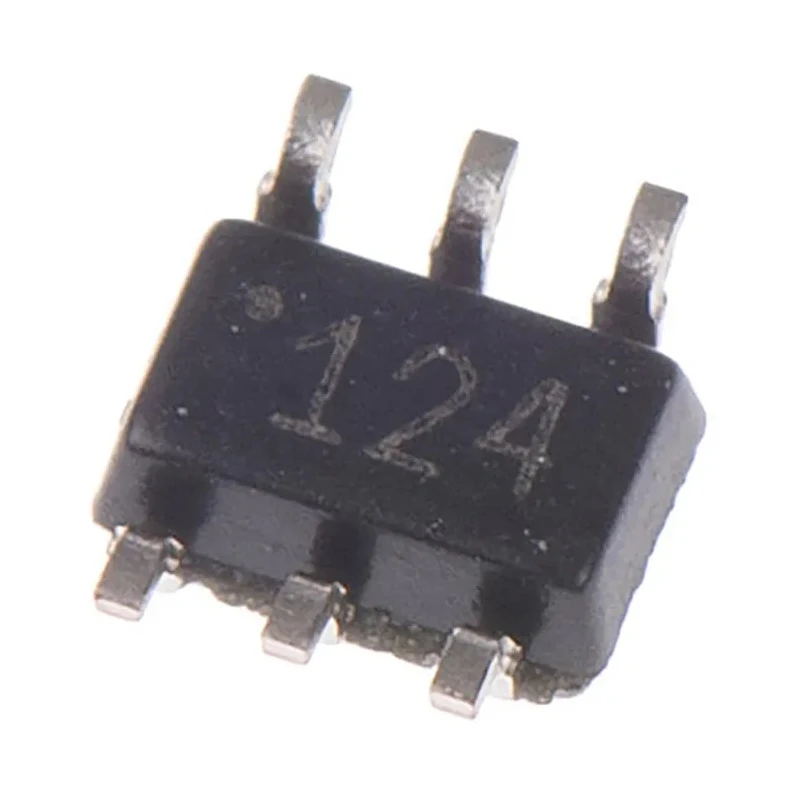

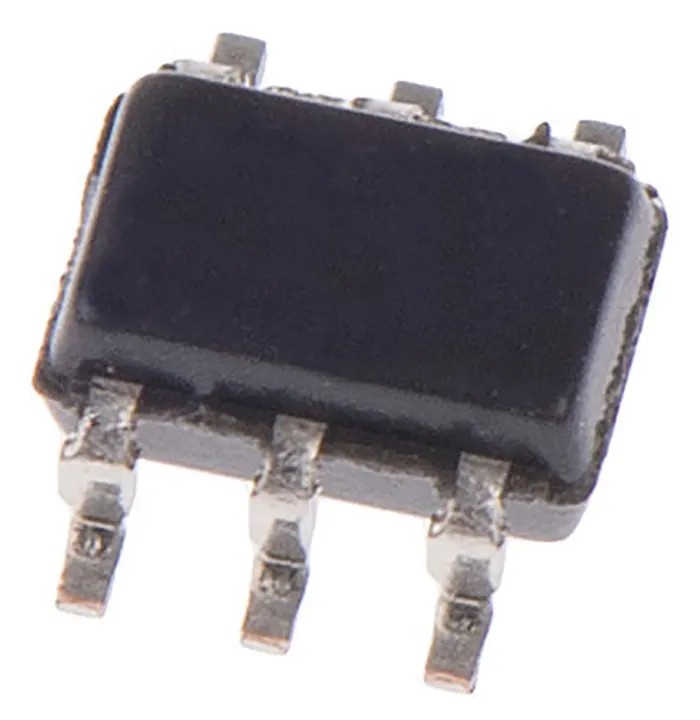

Texas Instruments Current Sensing Amplifier Single Channel 6-Pin SC-70 Package INA214AIDCKT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.9mm |
| Length | 2mm |
| Model | INA214AIDCKT |
| Mount Type | Surface |
| Series | INA214 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 6 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 100μA |
| GBP - Gain Bandwidth Product | 30kHz |
| CMRR - Common Mode Rejection Ratio | 105dB |
Key Features
- Operates with a minimum supply voltage of 2.7V and a maximum of 26V.
- Features a Common Mode Rejection Ratio (CMRR) of 105dB ensuring precise current measurement.
- Low supply current of 100μA supports energy-efficient designs.
- Packaged in surface mount SC-70 with 6 pins suitable for compact PCB layouts.
- Operational temperature range from -40°C to 125°C suited for industrial applications.
- Gain bandwidth product (GBP) of 30kHz supports accurate signal amplification.
- Designed to automotive standard AEC-Q100 for enhanced reliability and robustness.
Product Description
Texas Instruments INA214AIDCKT is a single channel current sensing amplifier designed for real-time current and power measurement applications. This device provides an analog voltage output proportional to the voltage drop across a low-value resistor in a high-current power rail, which enables high-accuracy system monitoring, feedback control, and protection.
This amplifier operates with a supply voltage range of 2.7V to 26V and maintains a low supply current of just 100μA, making it suitable for power-conscious industrial and automotive environments. It features a high Common Mode Rejection Ratio (CMRR) of 105dB that reduces the effect of noise and interference for precise current measurements.
The device is housed in a surface-mount SC-70 package with 6 pins, measuring 2mm by 0.9mm, which allows compact PCB design flexibility. It is qualified to the AEC-Q100 automotive standard, ensuring reliability in severe automotive environments. The operating temperature range from -40°C to 125°C further confirms its suitability for harsh industrial and automotive applications.
With a gain bandwidth product of 30kHz, the INA214AIDCKT supports accurate analog signal processing for current sensing tasks. Its compact size and robust specification make it ideal for use in industrial machines, automotive electronics, HVAC systems, manufacturing equipment, and laboratory measurement systems where accurate current monitoring is critical.
Operates across a wide supply voltage range supporting diverse system requirements. Low quiescent current reduces overall power consumption. High CMRR and gain bandwidth product enhance signal integrity and accuracy. Compact SC-70 package suits space-critical board layouts.
Automotive-grade compliance assures durability under demanding conditions.
This product is an essential component for engineers designing precision current monitoring circuits in electronic controls, power management, and industrial automation. Explore EnvMart’s wide selection of Current Sensing Amplifiers for comprehensive solutions in electronic instrumentation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range of 2.7V to 26V.
The INA214AIDCKT features a Common Mode Rejection Ratio (CMRR) of 105dB, which helps ensure precise current measurements.
It has a low supply current of just 100μA, making it suitable for energy-efficient designs.
The gain bandwidth product (GBP) of the INA214AIDCKT is 30kHz, supporting accurate analog signal processing.
This unit operates within an ambient temperature range of -40°C to 125°C, suitable for harsh industrial and automotive applications.
The SC-70 package measures 2mm in length and 0.9mm in height, allowing for compact PCB layouts.
This model is a single channel current sensing amplifier.
It is designed to meet the AEC-Q100 automotive standard, ensuring reliability in automotive environments.
This amplifier is designed for surface mounting, which is ideal for compact applications.
This current sensing amplifier is suitable for applications in industrial machines, automotive electronics, HVAC systems, and laboratory measurement systems.
It features a pin count of 6, which is typical for its SC-70 package configuration.
The country of origin for this product is India.
