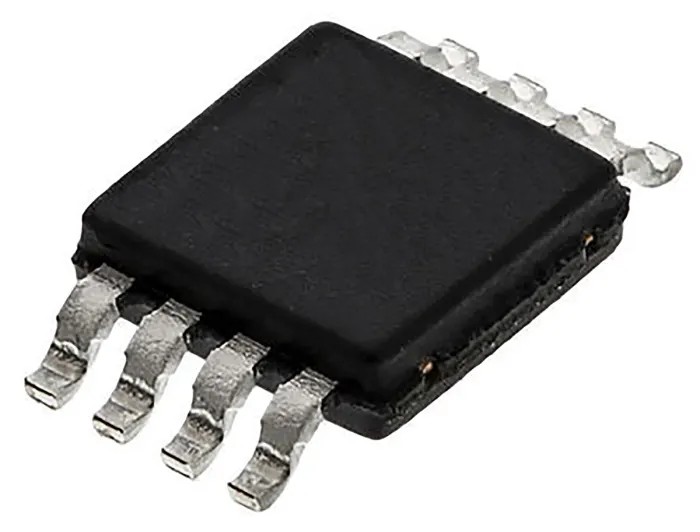

Texas Instruments Current Sensing Amplifier Single 8-Pin MSOP INA200AIDGKT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.97mm |
| Length | 3mm |
| Model | INA200AIDGKT |
| Mount Type | Surface |
| Series | INA200 |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 1.8mA |
| GBP - Gain Bandwidth Product | 500kHz |
| CMRR - Common Mode Rejection Ratio | 123dB |
Key Features
- Operates with supply voltage from 2.7V to 18V.
- Features an 8-pin MSOP package for surface mounting.
- High common-mode rejection ratio of 123dB ensures accurate sensing.
- Low supply current of 1.8mA supports efficient operation.
- Gain Bandwidth Product at 500kHz enables fast response.
- Works within an operating temperature range from -40°C to 125°C.
- Single channel configuration tailored to precise current sensing.
- Compact dimensions with a length of 3mm and height of 0.97mm.
Product Description
Texas Instruments INA200AIDGKT is a Current Sensing Amplifier designed for accurate current and power measurement in industrial, laboratory, and manufacturing systems. It utilizes an analogue output proportional to the voltage drop across a very low-value resistor, facilitating high-accuracy system monitoring and real-time system protection.
This amplifier operates from a single power supply voltage between 2.7V and 18V, suitable for various embedded power management and feedback control applications. The device is housed in a compact 8-pin MSOP surface mount package, making it ideal for space-constrained printed circuit board designs.
Key characteristics include a high Common Mode Rejection Ratio (CMRR) of 123dB, a low supply current consumption of 1.8mA, and a Gain Bandwidth Product of 500kHz, enabling fast and precise current measurement. The amplifier functions efficiently over a broad temperature range from -40°C to 125°C, ensuring reliability in industrial and laboratory environments.
The device is not rated for automotive use and carries no specific industry approvals, making it a specialized component for current sensing in controlled environments. Its compact length of 3mm and height of 0.97mm allow integration into advanced electronics systems with stringent size limitations.
Operates from a single supply voltage (2.7V to 18V). High CMRR of 123dB for accurate current sensing. Low supply current of 1.8mA for efficient power usage. Gain Bandwidth Product of 500kHz supports dynamic measurements.
Temperature rating from -40°C to 125°C ensures operational durability. Compact 8-pin MSOP surface mount package. Designed for industrial, laboratory, and manufacturing applications. No automotive standard compliance. Dimensions: 3mm length, 0.97mm height.
This Texas Instruments component fits neatly into the Semiconductor category and is ideal for applications requiring precise current measurement with minimal footprint. Explore more products in Current Sensing Amplifiers at EnvMart for advanced industrial and electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This current sensing amplifier operates with a supply voltage range from 2.7V to 18V.
The INA200AIDGKT features a high common-mode rejection ratio of 123dB, ensuring accurate current sensing.
It has a low supply current consumption of 1.8mA, which supports efficient operation.
The gain bandwidth product of the INA200AIDGKT is 500kHz, enabling fast response in measurements.
This model operates efficiently within a temperature range from -40°C to 125°C.
The amplifier has compact dimensions, measuring 3mm in length and 0.97mm in height.
This current sensing amplifier is designed with a single channel configuration for precise current sensing.
It is housed in an 8-pin MSOP surface mount package, suitable for space-constrained designs.
This amplifier is designed for accurate current and power measurement in industrial, laboratory, and manufacturing systems.
No, this device is not rated for automotive use and carries no specific industry approvals.
This model utilizes a surface mount type for installation on printed circuit boards.
It belongs to the INA200 series of current sensing amplifiers from Texas Instruments.
