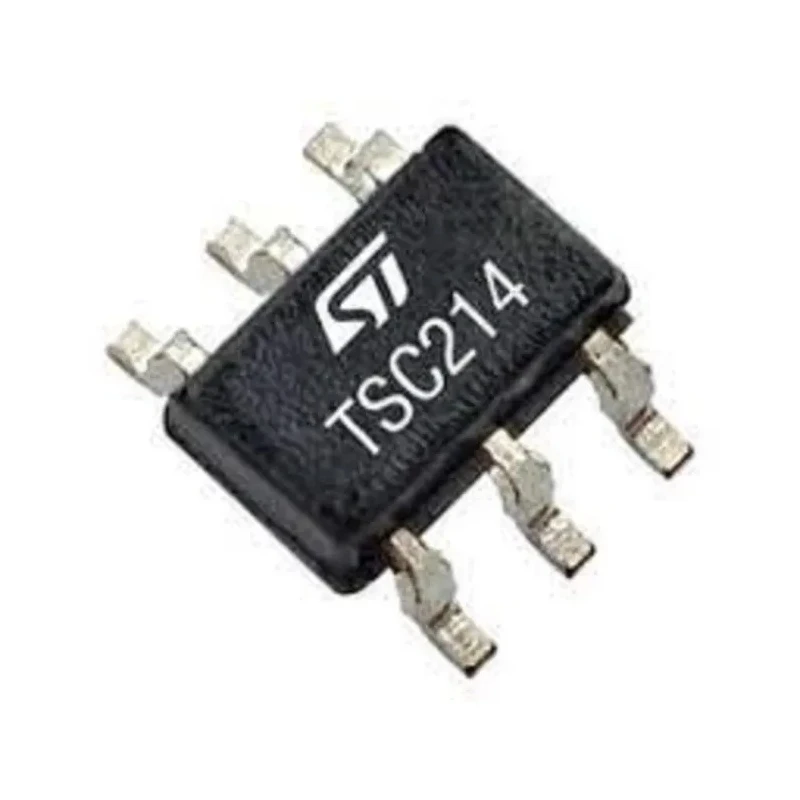

STMicroelectronics Current Sensing Amplifier Single, 6-Pin SC-70-6 Package, 2.7 to 26 V Supply, 5 mA Supply TSC214IYCT

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Current Sensing Amplifier Single, 6-Pin SC-70-6 Package, 2.7 to 26 V Supply, 5 mA Supply TSC214IYCT

Name: STMicroelectronics Current Sensing Amplifier Single, 6-Pin SC-70-6 Package, 2.7 to 26 V Supply, 5 mA Supply TSC214IYCT
Brand: STMicroelectronics
SKU: 423223
Price: 2.51 USD
Availability: InStock



Category Current Sensing Amplifiers Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.1mm
Length	2.2mm
Model	TSC214IYCT
Mount Type	Surface
Series	TSC214
Maximum Operating Temperature	125°C
Package Type	SC-70-6
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	6
Automotive Standard	AEC-Q100
Maximum Supply Voltage	26V
Minimum Supply Voltage	2.7V
Supply Current	5mA
GBP - Gain Bandwidth Product	40kHz
CMRR - Common Mode Rejection Ratio	105dB

Key Features

Operates with supply voltage from 2.7 V to 26 V for wide application range.
Features low supply current of 5 mA for efficient power usage.
Common mode rejection ratio of 105 dB ensures accurate sensing in noisy environments.
Gain bandwidth product is 40 kHz, suitable for demanding signal processing.
Designed with automotive standard AEC-Q100, suitable for automotive use.
Operating temperature range from -40°C to 125°C ensures reliability under harsh conditions.
Compact dimensions of 2.2 mm length and 1.1 mm height optimize PCB space usage.
Single channel design supports precise current measurement via shunt resistor.

Product Description

STMicroelectronics TSC214IYCT is a single-channel current sensing amplifier designed for high precision current measurements with a compact 6-pin SC-70-6 surface mount package. It operates over a wide supply voltage range of 2.7 to 26 V, allowing flexibility for various electronic applications including automotive and industrial environments.

This amplifier features a low quiescent supply current of 5 mA and a common mode rejection ratio (CMRR) of 105 dB, enabling accurate sensing of currents through shunt resistors even in noisy signal conditions. The gain bandwidth product is 40 kHz, suitable for dynamic and precise signal processing tasks.

Designed according to the automotive standard AEC-Q100, the TSC214IYCT is qualified for demanding automotive applications with an operating temperature range of -40°C to 125°C, ensuring performance and reliability under extreme environmental conditions.

The device’s zero-drift architecture minimizes offset voltage, offset drift, and gain drift, resulting in stable and consistent measurements over time and temperature variations. With compact dimensions of 2.2 mm length and 1.1 mm height, the SC-70-6 package facilitates space-saving board layouts and efficient surface mount technology assembly processes.

Operates from 2.7 V to 26 V supply voltage. Low supply current of 5 mA improves power consumption. High CMRR of 105 dB improves measurement accuracy. Gain bandwidth product of 40 kHz supports various signal frequencies. AEC-Q100 certification for automotive reliability.

Wide operating temperature range from -40°C to 125°C. Compact 6-pin SC-70-6 surface mount package. Zero-drift architecture for low offset and stable gain.

This current sensing amplifier is ideal for industrial, automotive, and telecommunications equipment requiring precise current monitoring. Its robust design and compact form factor make it suitable for embedded system integration and high-reliability applications.
