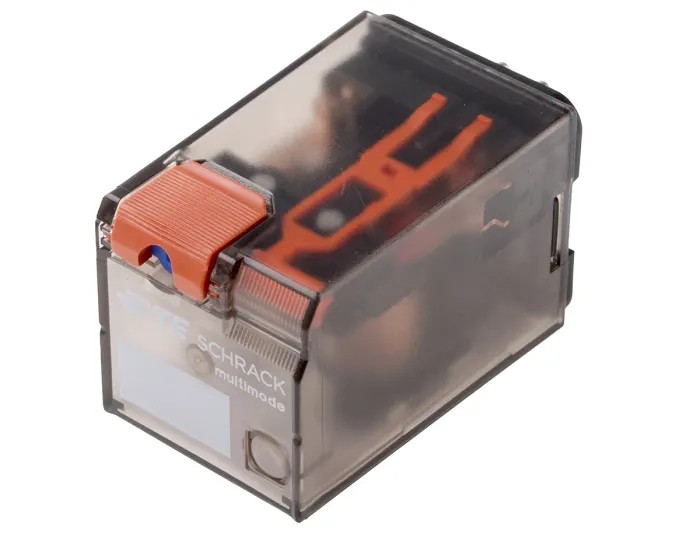

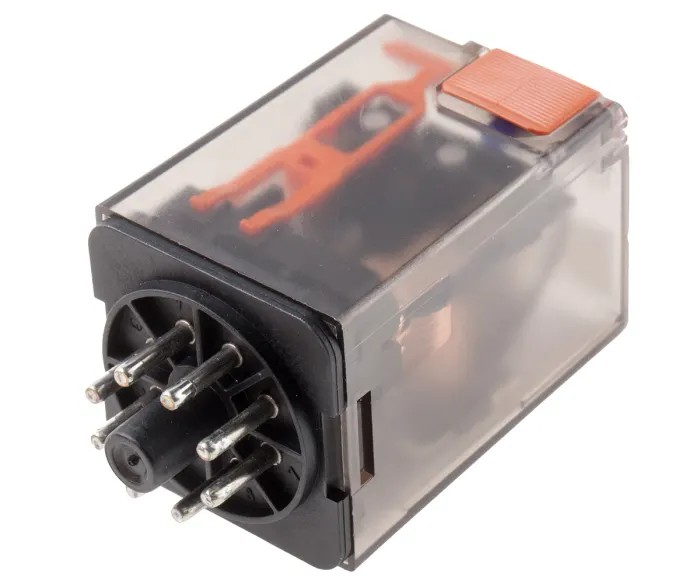

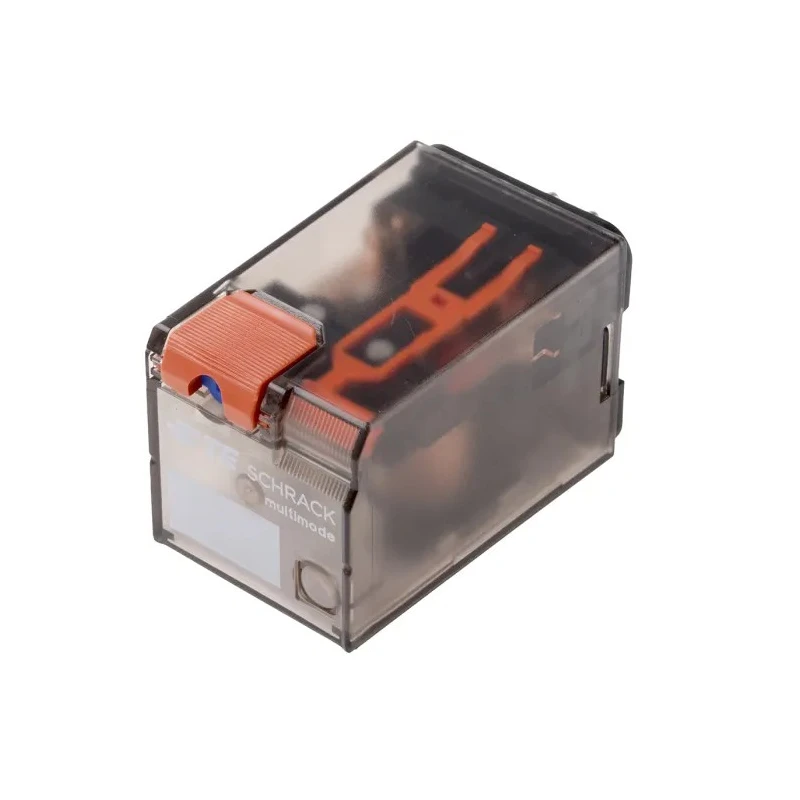

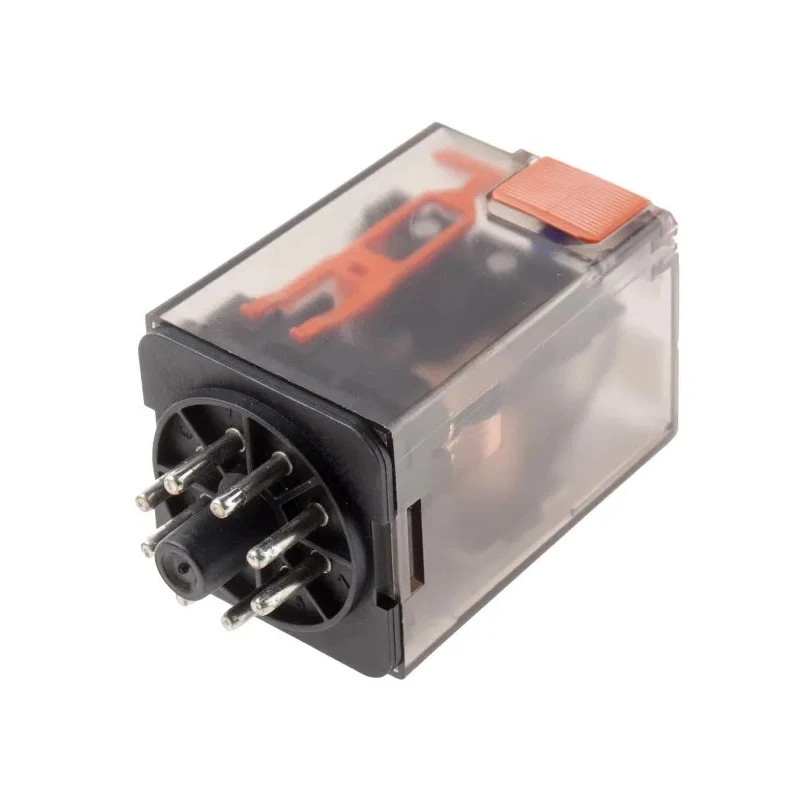

TE Connectivity Panel Power Relay 48V dc Coil 10A Switching Current DPDT MT221048 5-1393090-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 57mm |
| Length | 35.5mm |
| Model | MT221048 5-1393090-1 |
| Width | 35.5mm |
| Mount Type | Panel |
| Contact Material | Silver Nickel Alloy |
| Series | MT |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Standards/Approvals | REACH, IEC, CSA, VDE, UL, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| Coil Resistance | 2kΩ |
| Coil Voltage | 48V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 1.2W |
Key Features
- The relay features a plug-in terminal type designed for panel mounting.
- Operating temperature ranges from -40°C to 60°C.
- Switching AC voltage capability up to 400V ac with 2.5kVA switching power.
- Coil resistance is rated at 2kΩ and coil power is 1.2W.
- Constructed with silver nickel alloy contact material ensuring durability and performance.
- Compact dimensions of 57mm height, 35.5mm length, and 35.5mm width enable versatile installation.
- Meets international standards and approvals, including REACH, IEC, CSA, VDE, UL, and RoHS compliance.
Product Description
TE Connectivity MT221048 5-1393090-1 Panel Power Relay offers exceptional reliability and performance for electrical and industrial automation systems.
This power relay is designed with a 48V dc coil providing 10A switching current with a DPDT contact configuration, making it suitable for controlling circuits in complex electrical systems.
The plug-in terminal type and panel mount design facilitate quick and secure installation, supporting efficient maintenance. The relay withstands operating temperatures ranging from -40°C to 60°C, ensuring operational stability in harsh environments.
Equipped with a coil resistance of 2kΩ and coil power of 1.2W, it ensures optimum power consumption and switching operation efficiency. With switching AC voltage up to 400V ac and switching power rated at 2.5kVA, the relay can handle significant electrical loads safely.
Constructed using silver nickel alloy for contacts, the device guarantees durability and reduced contact resistance over prolonged use. The relay supports industrial, automation, electrical panel, and control gear applications.
It complies with recognized global standards such as REACH, IEC, CSA, VDE, UL, and RoHS, ensuring quality and safety. Compact size with dimensions 57mm height by 35.5mm length and width enhances compatibility with various control panels.
Plug-in terminal type simplifies integration and replacement in existing setups. DPDT (Double Pole Double Throw) contact configuration offers flexible circuit control options. This product is ideal for use in industrial automation, electrical distribution, manufacturing control systems, HVAC control panels, and power management systems.
Explore more high-quality Power Relays and electrical components at EnvMart for reliable industrial and electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a maximum switching current of 10A.
The coil voltage rating for this model is 48V dc.
This relay features a Double Pole Double Throw (DPDT) contact configuration.
The relay has compact dimensions of 57mm in height, 35.5mm in length, and 35.5mm in width.
It can switch AC voltage up to 400V ac.
The contacts are constructed from silver nickel alloy, which ensures durability and performance.
The operating temperature range is from -40°C to 60°C.
It features a plug-in terminal type designed for easy installation.
The coil resistance is rated at 2kΩ.
The coil power is rated at 1.2W.
It meets several international standards, including REACH, IEC, CSA, VDE, UL, and RoHS compliance.
This relay is suitable for industrial automation, electrical distribution, manufacturing control systems, HVAC control panels, and power management systems.
