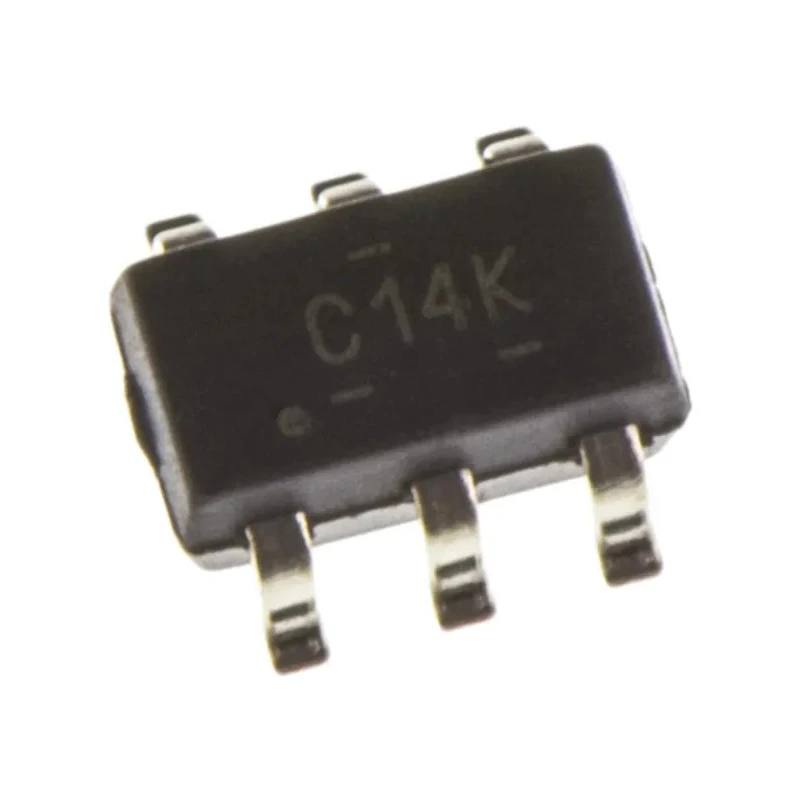

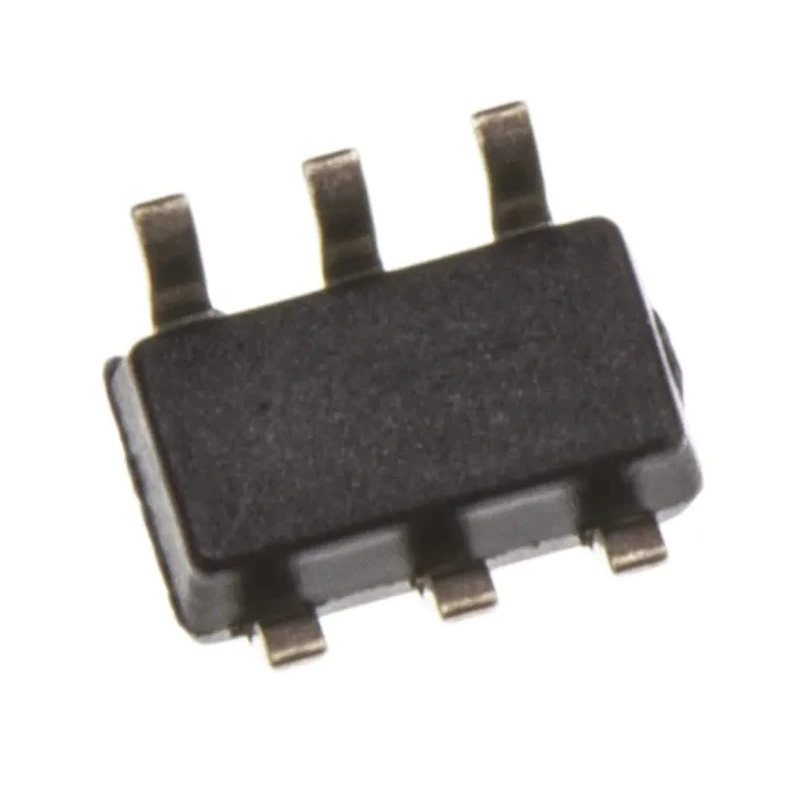

Texas Instruments Schmitt Trigger Input CMOS Inverter 2 Elements 6-Pin SOT-23 SN74LVC2G14DBVR

Texas Instruments SN74LVC2G14DBVR is a CMOS inverter IC with Schmitt Trigger inputs designed for applications requiring reliable and noise-immune logic operations. This device contains two inverter elements integrated within a 6-pin small-outline transistor (SOT-23) package, enabling compact circuit designs.

The inverter operates efficiently over a wide voltage range of 1.65 V to 5.5 V, making it suitable for low-voltage logic applications. With a maximum propagation delay of 10.5 nanoseconds, it provides fast switching performance ensuring optimal signal integrity in digital circuits.

Its maximum high-level output current is -32 mA while the maximum low-level output current is 32 mA, delivering adequate drive capability for subsequent logic stages or devices. The device supports Schmitt Trigger inputs which offer hysteresis to reduce noise and provide cleaner transitions, critical in noisy industrial or laboratory environments.

The package type is surface mounted as a 6-pin SOT-23, with tiny dimensions (2.9 mm length, 1.6 mm width, and 1.15 mm height), allowing space-saving designs on densely packed PCBs common in industrial instruments, manufacturing equipment, automation controls, and electronic instrumentation.

Operates reliably in temperature conditions ranging from -40°C to 85°C, covering most commercial and industrial temperature zones. The logic family Low Voltage CMOS (LVC) ensures low power dissipation while maintaining compatibility with LVTTL/TTL input levels and providing LVCMOS output signals. The product does not carry automotive standard certification, confirming its primary use in standard technical and electronic industrial sectors.

Operates over 1.65 V to 5.5 V supply voltage to support varied power designs. Two inverter gates integrated in a compact SOT-23 package for space efficiency. Schmitt Trigger input ensures noise immunity and clean logic transitions.

High switching speed with propagation delay time of 10.5 ns at typical CL. Wide operating temperature range from -40°C to 85°C for industrial robustness. Maximum output currents of ±32 mA enabling sufficient driving capability.

Compatible with LVTTL inputs and LVCMOS outputs for integration in mixed logic systems. Ideal for industrial automation, electronic measurement instruments, and digital control systems. Compact SMT package reduces footprint and supports modern PCB manufacturing.
