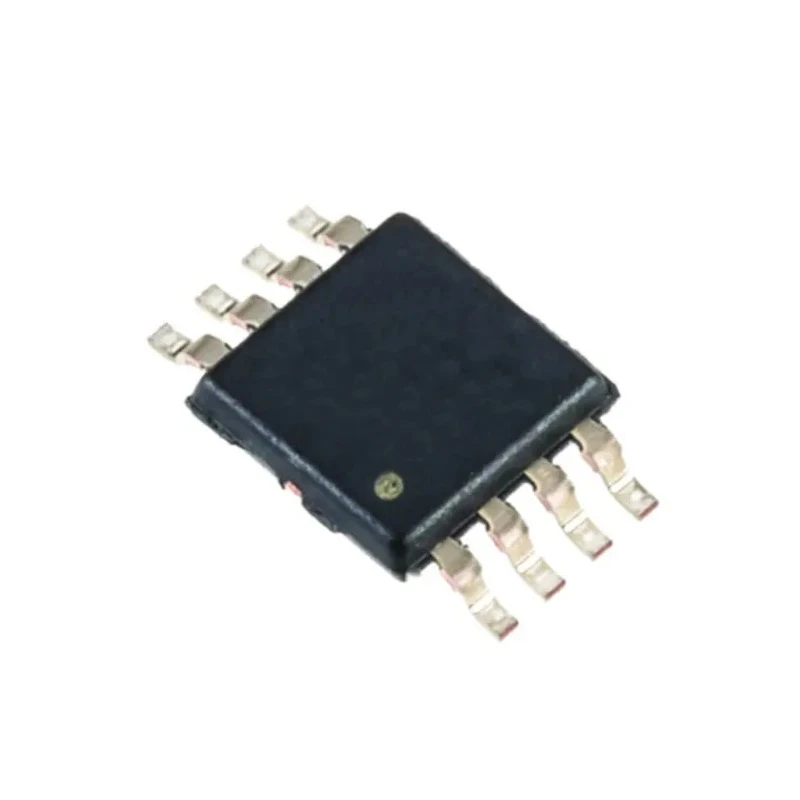

Texas Instruments 2 2-Input NAND Logic Gate, 8-Pin VSSOP SN74LVC2G00DCUT

Texas Instruments SN74LVC2G00DCUT is a 2 2-input NAND logic gate featuring an 8-pin VSSOP surface mount package. It belongs to the 74LVC family of low-voltage CMOS logic devices, offering a flexible operating voltage range from 1.65 V to 5.5 V which suits a wide range of electronic applications. This logic gate integrates two NAND elements each with two inputs, providing reliable NAND function outputs with CMOS input type compatibility.

The device operates effectively within an industrial temperature range of -40°C to 85°C, making it suitable for harsh environments. It has a maximum propagation delay time of 3.8 nanoseconds at a defined load capacitance, ensuring rapid switching speeds necessary in high-speed digital circuits. The device’s high-level output current rating is -32 mA, and the low-level output current tolerance is up to 32 mA, supporting robust output drive capability.

Designed to be used with surface mount technology, the component’s compact 8-pin VSSOP packaging facilitates efficient PCB design and assembly. The model does not incorporate Schmitt Trigger inputs, which may influence signal conditioning for certain applications.

This logic gate is fully compatible with input LVTTL and TTL logic levels, outputting LVCMOS signals, allowing easy interfacing with various logic families and microcontrollers.

The SN74 series from Texas Instruments is renowned for reliable and efficient performance in semiconductor logic circuits, making this IC a dependable choice for digital electronic designs including industrial automation, computing hardware, signal processing, and embedded systems.

Features two independent 2-input NAND Logic Gates in one IC. Wide operating voltage range from 1.65 to 5.5 V enhances design flexibility. Industrial temperature range suitability from -40°C to 85°C. Fast propagation delay enables high-speed digital operations.

Surface mount VSSOP package optimizes PCB space utilization. Compatible with LVTTL/TTL inputs and outputs LVCMOS logic signals. Maximum output currents support stable logic level drives. Part of the robust 74LVC family logic ICs by Texas Instruments.

Available for applications in electronics manufacturing, embedded systems development, industrial controls, and high-speed logic circuits. Explore more semiconductors and related products at EnvMart for advanced electronic equipment needs.
