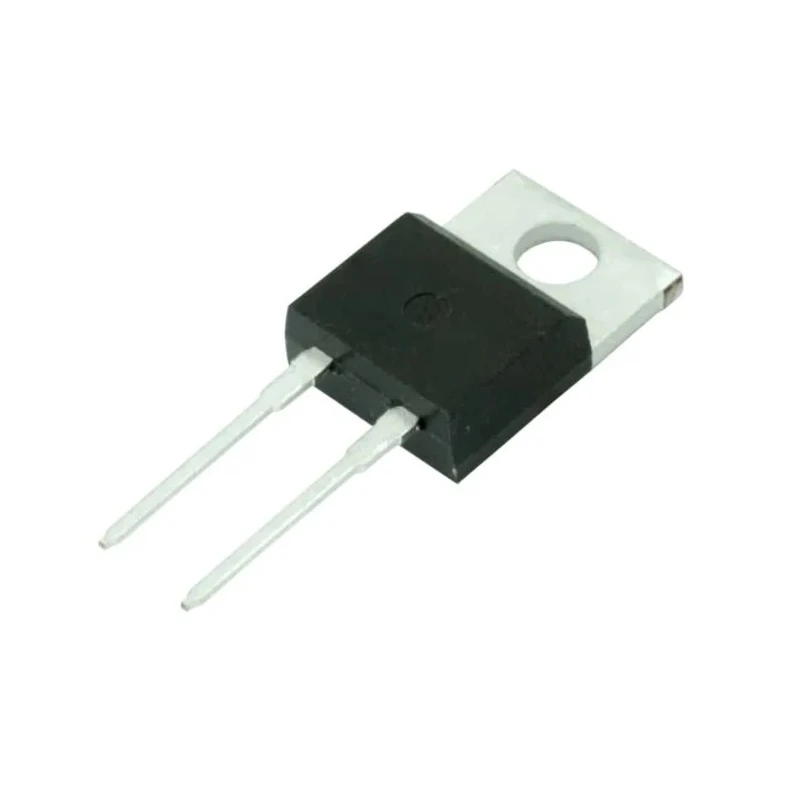

Vishay 650 V 10 A Schottky Diode Single 3-Pin Through Hole TO-220AC 2L VS-C10ET07T-M3

The Vishay VS-C10ET07T-M3 Schottky Diode is a robust semiconductor component designed for high-power and high-voltage applications. This single-diode device has a maximum continuous forward current rating of 10 A and is housed in a through-hole TO-220AC 2L package with three pins, suitable for easy mounting on printed circuit boards.

Constructed using Silicon Carbide (SiC) wide band gap technology, this diode delivers superior performance with low forward voltage (1.8 V max) and minimal switching losses. Its positive temperature coefficient for forward voltage enables straightforward paralleling configurations, enhancing flexibility in power electronics design.

The diode’s peak reverse repetitive voltage of 650 V and a broad operating temperature range from -55°C to 175°C make it well suited for demanding industrial, power conversion, and automotive applications. Its rugged design ensures reliable operation even under forward current surge events, providing high ruggedness and minimal recovery tail characteristics.

Key material and package features include the TO-220AC 2L through-hole mounting style, facilitating thermal management and mechanical stability in power modules. This diode features a maximum continuous forward current of 10 A suitable for power applications.

It offers a peak reverse repetitive voltage rating of 650 V for robust operation. The maximum forward voltage is 1.8 V, contributing to efficient conduction. Designed on wide band gap SiC material, it provides low switching losses and temperature invariant switching behavior.

With an operating temperature range from -55°C to 175°C, it suits demanding industrial environments. The device employs Schottky technology ensuring virtually no recovery tail and excellent ruggedness against current surges.

Its positive forward voltage temperature coefficient facilitates easy paralleling in circuits. The package type TO-220AC 2L allows ease of mounting in various electronic assemblies.

This diode is ideally suited for use in industrial power supplies, power conversion equipment, automotive electronics, and other commercial and HVAC applications requiring efficient high-current rectification at elevated temperatures.
