onsemi PowerTrench N-Channel MOSFET 61 A 150 V Enhancement 8-Pin PQFN NTMFS015N15MC

onsemi NTMFS015N15MC is a PowerTrench series N-Channel MOSFET designed for high-performance power switching applications. It supports a maximum continuous drain current of 61 A and maximum drain-source voltage of 150 V, making it suitable for demanding electronic circuits.

The device utilizes advanced shielded gate technology to achieve low on-resistance of 14 mΩ which reduces conduction losses and enhances overall efficiency in power management systems.

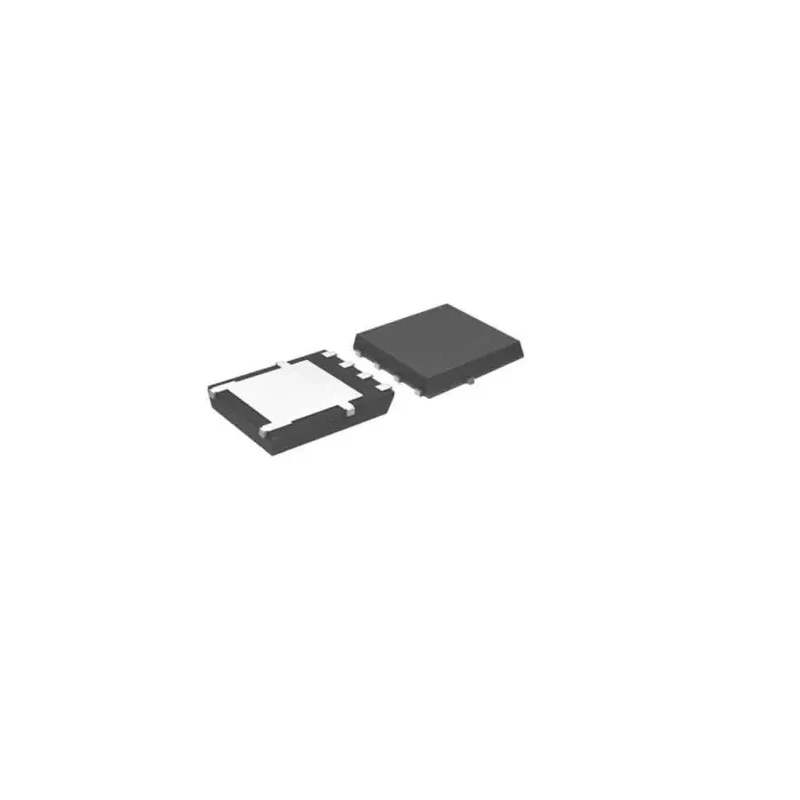

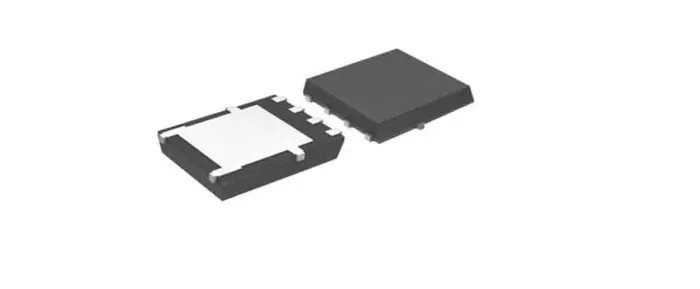

It comes in a compact 8-pin PQFN surface mount package, measuring approximately 5.9 mm by 4.9 mm with a height of 900 μm, suitable for modern PCB layouts requiring minimal footprint.

The MOSFET offers excellent thermal handling with a maximum power dissipation of 108.7 W and an operating temperature range from -55°C to 150°C, supporting industrial and automotive electronic environments where temperature extremes are common.

With a typical gate charge of 27 nC at Vgs, switching losses are minimized, improving performance in switching power supplies and DC-DC converters. Its forward voltage drop is rated at 1.2 V, contributing to low power dissipation during operation.

This component is fully RoHS compliant, ensuring environmental standards are met. The low gate charge and capacitance reduce driver losses making the MOSFET desirable for efficient power management solutions.

Typical applications include industrial power controls, motor drives, DC-DC converters, and other power electronic systems requiring high current capability and low loss switching.

Explore the wide range of semiconductor products in the MOSFET category at EnvMart to find complementary components and enhance your electronic designs. Maximum continuous drain current of 61 amperes ensures high current handling capability.

Maximum drain-source voltage rating of 150 volts supports robust operation under high voltage. Low on-resistance of 14 milliohms minimizes conduction losses and improves efficiency. Compact 8-pin PQFN surface mount package suitable for space-constrained designs.

Rated for maximum power dissipation of 108.7 watts allowing high power dissipation. Operating temperature range from -55°C to 150°C for reliable performance under extreme conditions. Typical gate charge of 27 nC reduces switching losses in high-speed circuits.

Compliance with RoHS standards assures environmental safety and restriction of hazardous substances. Designed with shielded gate technology for optimal switching performance and soft body diode behaviour.
