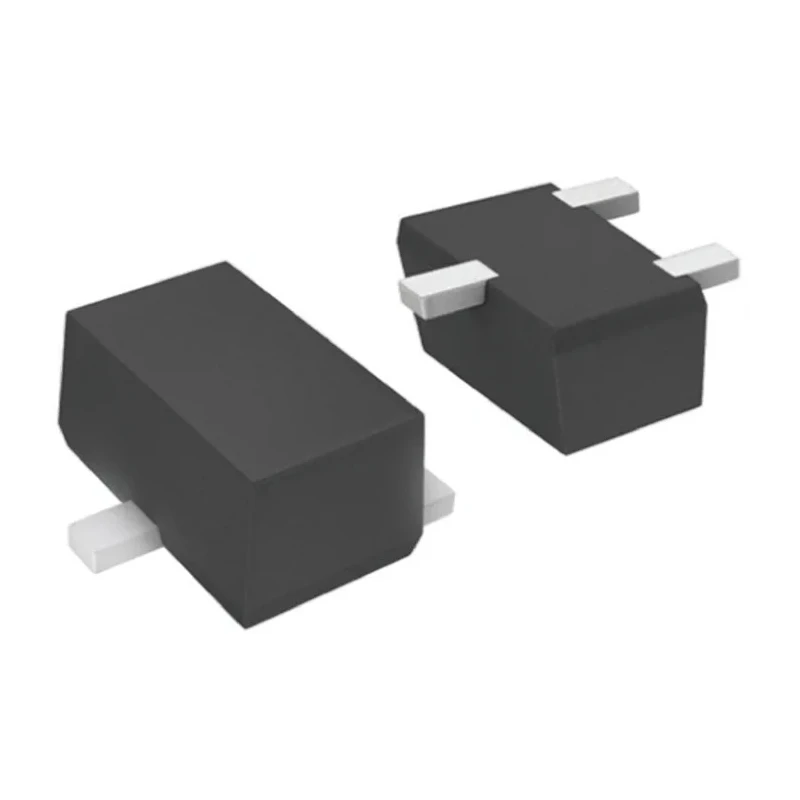

onsemi 2-Element Uni-Directional ESD Protection Diode 240 mW 3-Pin SOT-723 ESD7C5.0DT5G

onsemi ESD7C5.0DT5G 2-Element Uni-Directional ESD Protection Diode is designed to safeguard voltage-sensitive electronic components from electrostatic discharge in space-constrained applications. This diode supports a maximum power dissipation of 240 mW and is housed in a compact 3-pin SOT-723 surface mount package that is ideal for modern portable and automotive electronics.

The protection device features a common anode configuration that allows efficient uni-directional current flow, offering a minimum breakdown voltage of 5 V and a maximum reverse stand-off voltage of 5 V. It is characterized by fast response times under 1 ns and a maximum peak pulse current capacity of 30 A, ensuring high effectiveness during ESD events.

Its operating temperature range from -55°C to 150°C makes it suitable for industrial and automotive environments, compliant with the AEC-Q101 automotive standard. The device's low reverse leakage current of 500 nA contributes to enhanced circuit reliability.

Due to its small body outline dimensions of 1.25 mm length, 0.85 mm width, and 0.55 mm height, along with a low body height of 0.5 mm, it is well-suited for compact electronic designs such as cellular phones, digital cameras, MP3 players, and other portable or sensitive electronic equipment.

This diode ensures excellent protection in electrical and electronic assemblies where board space is limited, and ESD protection is critical for device longevity. It is widely used in industrial, electronic component manufacturing, and automotive sectors for safeguarding sensitive circuitry.

The diode configuration features a common anode design for efficient ESD protection. It supports a uni-directional current flow with a minimum breakdown voltage of 5 V. Compact surface mount package SOT-723 with 3 pins enhances space conservation on PCB.

Built to operate in a wide temperature range from -55°C to 150°C for reliability in harsh environments. Maximum peak pulse current reaches 30 A ensuring robust protection against transient surges. Low reverse leakage current of 500 nA helps maintain circuit integrity.

Includes 2 elements per chip to increase protection level for sensitive electronics. Complies with automotive standard AEC-Q101 for high quality automotive applications. Small outline dimensions of approximately 1.25 mm length and 0.85 mm width suit miniaturized electronic devices.
