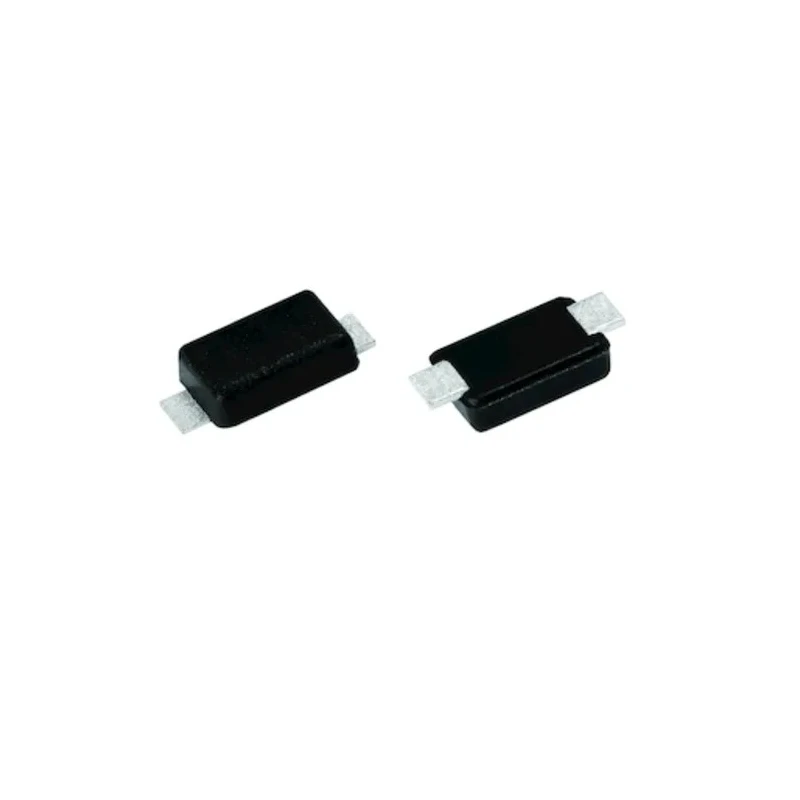

Vishay 60 V 2 A Surface Mount Trench MOS Barrier Schottky Rectifier Diode DO-219AB V2F6HM3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 3.9mm |
| Model | V2F6HM3/H |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | V2X |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-219AB |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.6V |
Key Features
- Features a low profile DO-219AB package suitable for automated placement.
- Offers a maximum continuous forward current of 2 A and reverse repetitive voltage of 60 V.
- Has a maximum forward voltage drop of 0.6 V, ensuring efficient operation.
- Operates reliably in a temperature range from -40°C to 150°C.
- Supports peak non-repetitive forward surge current up to 50 A for transient conditions.
- Complies with automotive standard AEC-Q101, making it suitable for automotive applications.
- Single diode configuration with 2-pin lead format.
Product Description
Vishay V2F6HM3/H is a surface mount Schottky diode packaged in DO-219AB form factor, incorporating advanced Trench MOS Barrier technology. It delivers a continuous forward current of 2 A and can withstand peak reverse voltages up to 60 V, providing robust performance in power conversion and rectification.
This diode is designed for high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits in commercial, industrial, and automotive environments. Its low forward voltage drop of 0.6 V enhances efficiency, minimizing power loss and heat generation.
The device operates over a wide temperature range from -40°C to 150°C, fulfilling rigorous automotive quality standards with AEC-Q101 certification. Its compact size (3.9 mm length, 1.9 mm width, 1.08 mm height) allows for space-saving PCB layouts and automated surface mount assembly processes.
The diode has a peak non-repetitive forward surge current rating of 50 A, enabling it to handle transient current spikes common in power electronics applications. With its 2-pin configuration, it is easy to integrate into diverse electronic circuit designs requiring reliable Schottky rectification.
Low profile DO-219AB package optimized for automated PCB mounting. High efficiency due to low forward voltage drop. Wide operating temperature range and automotive grade quality. High surge current capability for transient protection.
Compact dimensions suitable for space-constrained designs. Single diode, 2-pin configuration for versatile circuit implementation.
This Vishay Schottky diode is ideal for applications in industrial power supplies, automotive electronics, and telecommunications equipment where efficiency and reliability are paramount. EnvMart offers this component for professionals designing and manufacturing high-performance electronic systems.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 2 A.
The maximum forward voltage drop is 0.6 V, enhancing its efficiency during operation.
This diode operates reliably within a temperature range from -40°C to 150°C.
It supports a peak non-repetitive forward surge current of up to 50 A.
The diode is packaged in a low profile DO-219AB format, suitable for automated placement.
This model features a 2-pin configuration, making it easy to integrate into various circuit designs.
It complies with the automotive standard AEC-Q101, making it suitable for automotive applications.
The dimensions are 3.9 mm in length, 1.9 mm in width, and 1.08 mm in height.
This model is a Schottky rectifier, which is known for its low forward voltage drop.
The country of origin for this diode is China.
