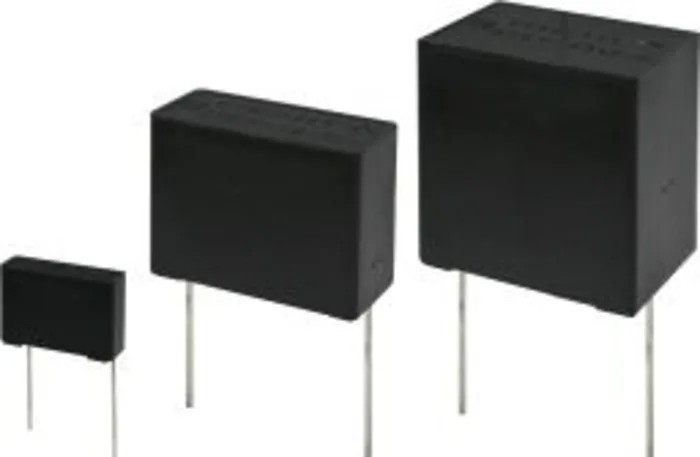

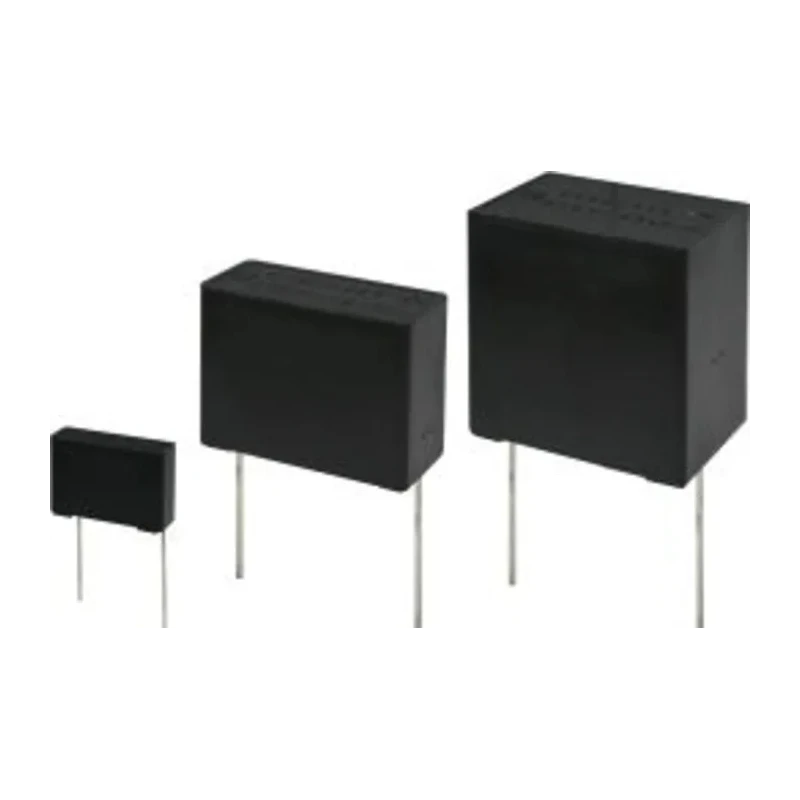

Panasonic Film Capacitor ECQUAAF224S1 X2 Suppression Class, ±20 %, 220 nF, 275 V AC, Through Hole Mount

Panasonic ECQUAAF224S1 film capacitor is a high-quality passive electronic component designed for interference suppression in automotive and industrial applications. Featuring a capacitance of 220 nF and an X2 suppression class, it operates reliably at a rated AC voltage of 275 V. The device is mounted using through hole technology with a 15 mm lead pitch and solder type terminals for secure PCB affixing.

This capacitor incorporates a built-in safety function that ensures operational safety and reliability. It demonstrates excellent performance under harsh environmental conditions, including high humidity resistance verified by the THB test (85 °C, 85% humidity, 240 V AC, 1000 hours) and outstanding thermal shock resistance with tested cycles between -40°C and 85°C.

The flame-retardant plastic case along with non-combustible resin housing provides additional safety against fire hazards, making it suitable for automotive industry standards such as AEC-Q200. Certifications include CSA E60384-14, EN 60384-14, and UL 60384-14, ensuring compliance with international safety and quality requirements.

Key mechanical dimensions include a width of 7.5 mm, height of 14 mm, and length of 17.5 mm, with lead length of 20 mm and lead diameter of 0.6 mm facilitating easy mounting and soldering. The tolerance of ±20% capacitance supports diverse circuit design needs.

Typical applications include interference suppression in automotive electronic systems and other industrial electrical assemblies requiring robust film capacitors with high safety and reliability standards.

High safety with built-in safety function for reliable operation. High humidity resistance tested at 85 °C, 85% humidity, 240 V AC for 1000 hours. Excellent thermal shock resistance from -40°C to 85°C for 1000 cycles. Flame-retardant plastic case and non-combustible resin housing.

Through hole mount with 15 mm lead pitch and 0.6 mm lead diameter for solder terminal type. Rated for 275 V AC with ±20% capacitance tolerance. Complies with automotive standard AEC-Q200 and certifications CSA E60384-14, EN 60384-14, UL 60384-14 standards.

Compact dimensions: 7.5 mm width, 14 mm height, and 17.5 mm length. Lead length is 20 mm ensuring ease of PCB mounting.
