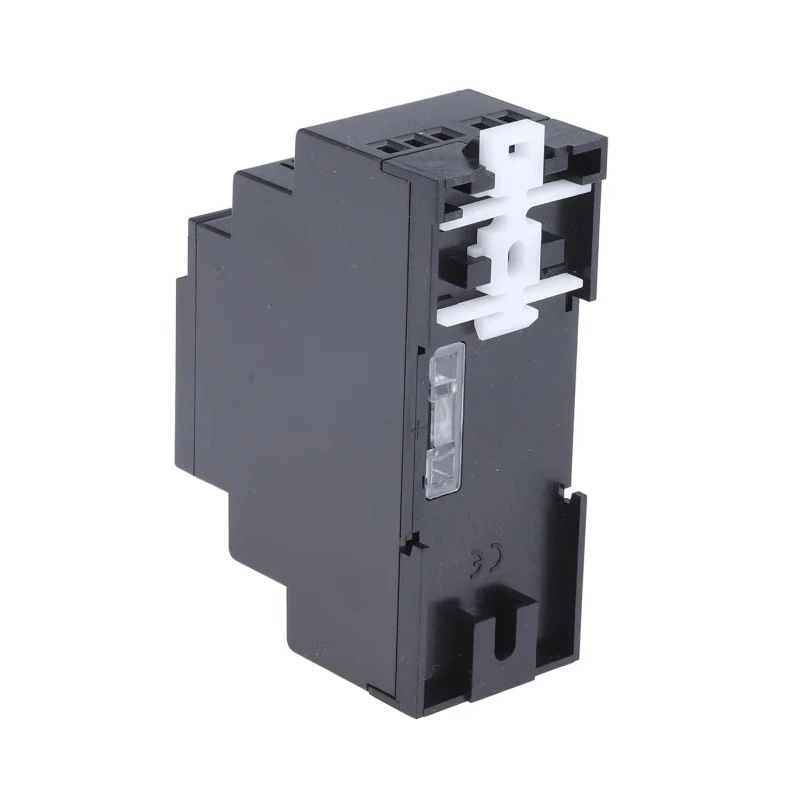

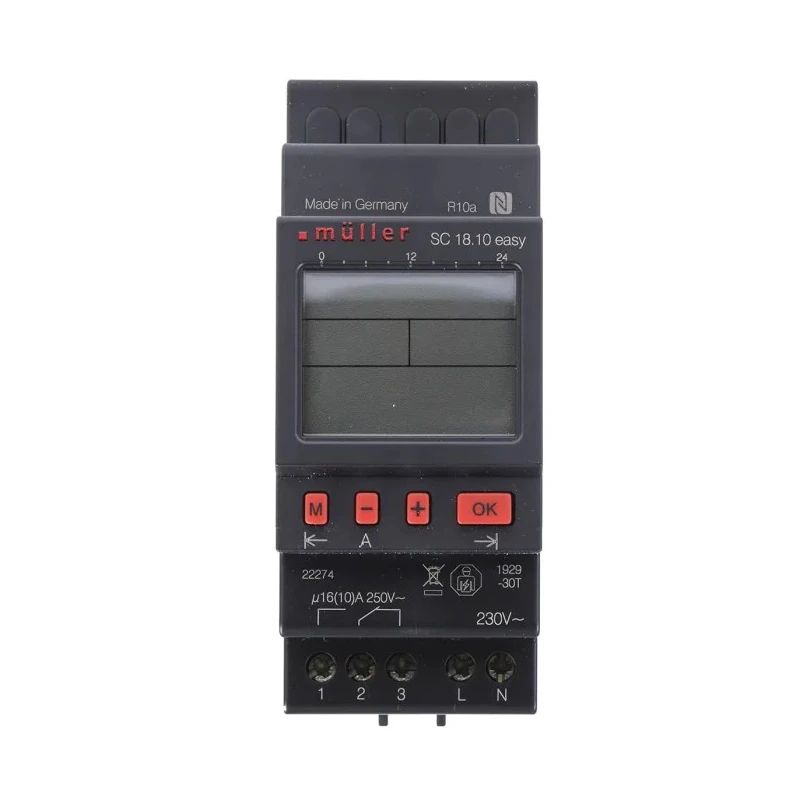

Muller Digital SC 18 DIN Rail Time Switch 230V AC Single Channel Digital Timer SC 18.10 EASY 230V 50-60HZ

Muller SC 18.10 EASY 230V 50-60HZ is a high-performance digital DIN Rail Time Switch designed for precise timing control in various industrial and commercial applications. It operates on a 230V AC supply and supports a single channel with a switching capacity of 16 A.

This device offers versatile programming options including daily, weekly, and yearly schedules with additional switching times to cover complex timing requirements. It features 56 memory locations to store diverse programs and a segment length of 1 minute for fine resolution.

With an integrated NFC interface conforming to ISO 15693 standard, users can easily program the device wirelessly using the free Save 'n carry smartphone app. The time switch incorporates a replaceable CR 2032 battery that provides up to 10 years of battery life, ensuring uninterrupted operation and data retention in power outages.

The illuminated display with a clear text line enhances visibility and ease of use, while manual override and permanent mode options provide flexibility for on-demand control. The device also includes security features such as PIN code protection to prevent unauthorized access.

Muller SC 18.10 EASY operates fully automatically with daylight-saving time adjustments and records elapsed time and pulse counts for diagnostics. Designed in accordance with DIN EN 60730-1 and DIN EN 60730-2-7 standards and compliant with RoHS and ISO 15693 certifications, it ensures reliable and safe performance.

This timer is ideal for controlling illumination of private and industrial areas, street and shop-window lighting, air conditioning regulation, flushing operations, motors, pumps, machinery, and presence simulation.

Features 1 channel with digital daily, weekly, and yearly programmable schedules. Powered by 230V AC supply with a switching capacity of 16 A per channel. Incorporates NFC for smartphone programming via free Save 'n carry App.

Equipped with a replaceable CR 2032 battery ensuring up to 10 years battery reserve. Includes illuminated display and easy manual override for real-time control. Supports automatic daylight-saving time adjustments for accuracy.

Offers security through PIN code protection and non-volatile memory for data safety. Suitable for illumination control, HVAC regulation, motor and pump operation, and presence simulation. Constructed in compliance with DIN EN 60730 and RoHS standards.
