Muller 7-Digit Motor Driven Panel Mount Hour Meter 12-48V DC 4.4mm Digit Height BG 40.27 12-48V DC

Free Delivery in India | Lowest Global Shipping Charges

Muller 7-Digit Motor Driven Panel Mount Hour Meter 12-48V DC 4.4mm Digit Height BG 40.27 12-48V DC

Name: Muller 7-Digit Motor Driven Panel Mount Hour Meter 12-48V DC 4.4mm Digit Height BG 40.27 12-48V DC
Brand: Muller
SKU: 155718
Price: 75.56 USD
Availability: InStock



Category Counters Brand Muller Condition New

Specifications

Country of Origin	Germany
Brand	Muller
Model	BG 40.27 12-48V DC
Series	BG 40
Number Of Digits	7
Digit height	4.4mm
Reset Method	No Reset

Key Features

Provides precise measurement of operating hours with 0.01 hour accuracy.

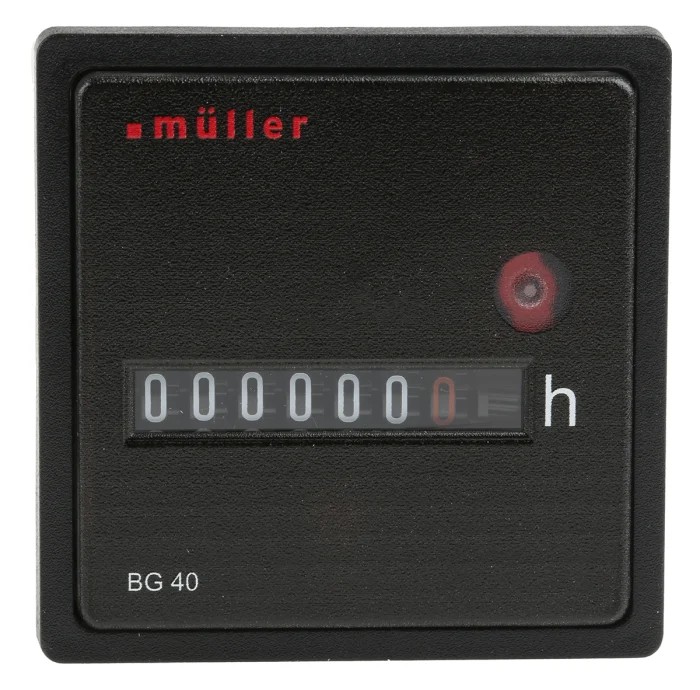

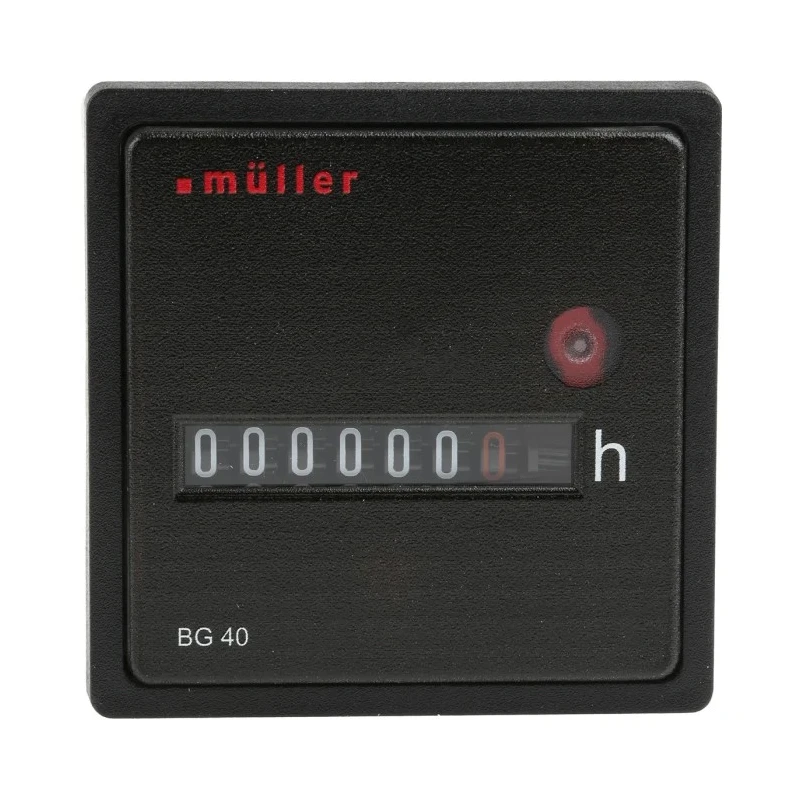

Features a 7-digit motor-driven display with decimal and white/red digits.
Quartz stabilized and designed for low noise operation.

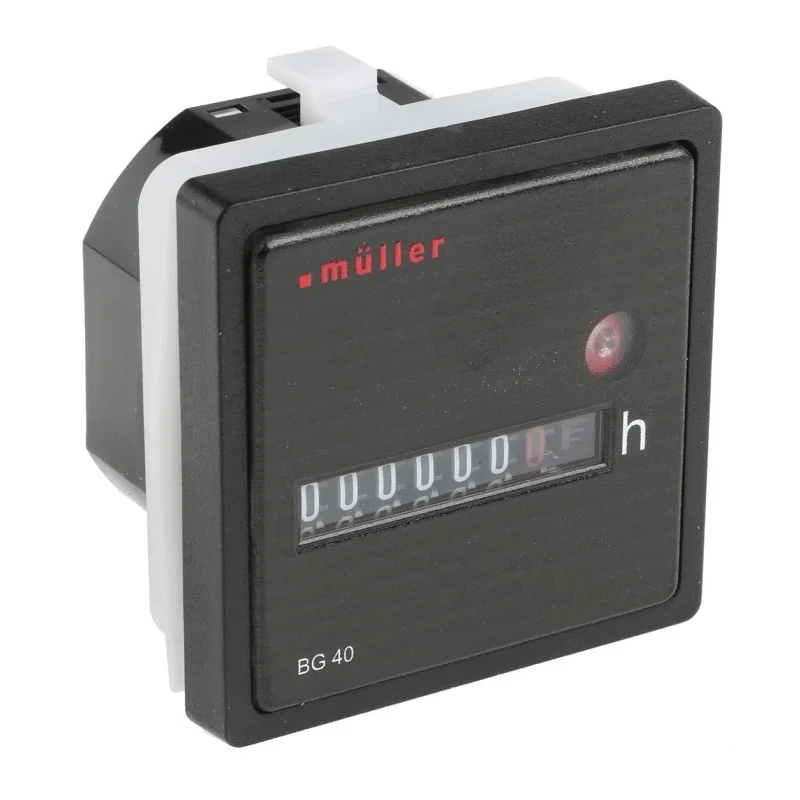

Supplied with bezel and panel clip for mounting through 50mm diameter hole.

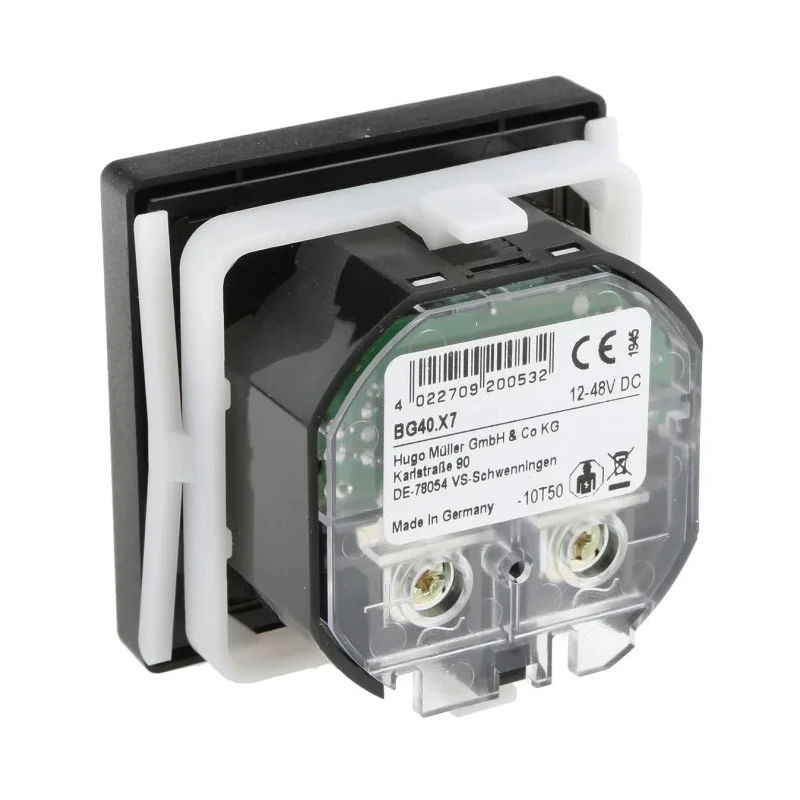

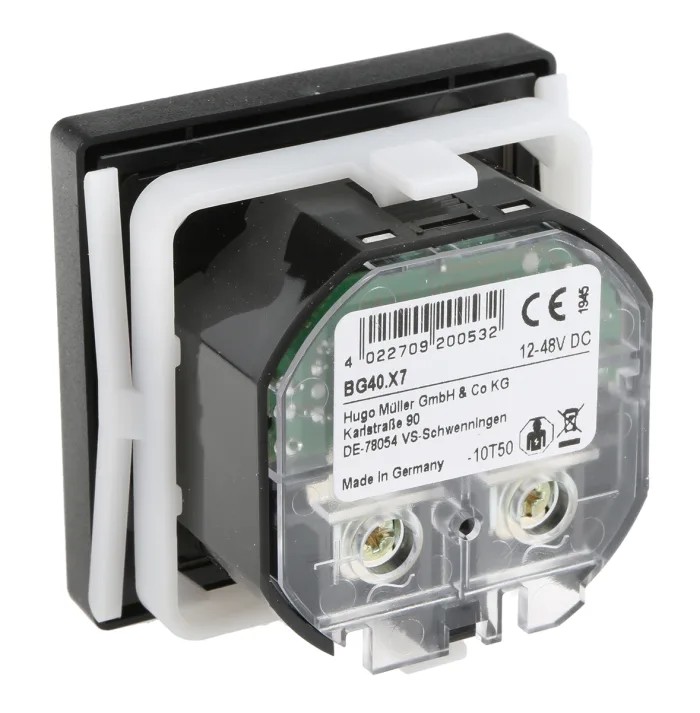

Touch proof screw terminals accessible from rear for easy wiring.
Front face dimension of 48mm x 48mm fits standard panel cutouts.
Measurement range from 0 to 9999999 hours, non-resettable.
Operation temperature range between -10°C to 50°C for diverse environments.

Product Description

The Muller BG 40.27 12-48V DC is a precision 7-digit motor-driven hour meter specifically designed for panel mounting applications. It is ideal for industrial, electrical, and automation control environments requiring accurate operating hour measurement.

The hour meter utilizes quartz-stabilized timing for excellent accuracy with a measurement resolution of 0.01 hours. Its robust design includes a non-resettable counter with decimal digits in white and other digits highlighted in red, facilitating clear time logging. The unit includes a panel clip and bezel for easy installation through a 50mm diameter panel hole and features screw terminals accessible from the rear that are touch proof to ensure safety during wiring.

With a front dimension of 48mm by 48mm, it seamlessly integrates within control cabinets and plants. The operating temperature range of -10°C to 50°C allows reliable performance under various industrial conditions. Its IP54 rating ensures protection against dust ingress and water splashes, enhancing the device's durability and reliability in demanding settings.

This hour meter is commonly utilized for monitoring the operating hours of pumps, machines, and other industrial equipment, enabling effective maintenance scheduling and operational oversight. The device's low noise and ease of connection further contribute to its suitability for integration into automation and process control systems.

Precise timing with quartz stabilization and 0.01-hour accuracy. Durable motor-driven 7-digit count display with color-coded digits. Simple installation with panel clip and bezel for 50mm cutout. Rear-access screw terminals with touch proof design enhance safety.

Compact 48mm x 48mm front panel dimension fits standardized panels. Wide voltage range from 12 to 48V DC supports flexibility in applications. Operation from -10°C to 50°C provides versatility for different environments.

IP54 rated housing protects against dust and splashes. Essential for industrial process monitoring, machine and pump hour tracking. Explore more automation and control gear products like Muller Counters at EnvMart for reliable and accurate process control instrumentation.
