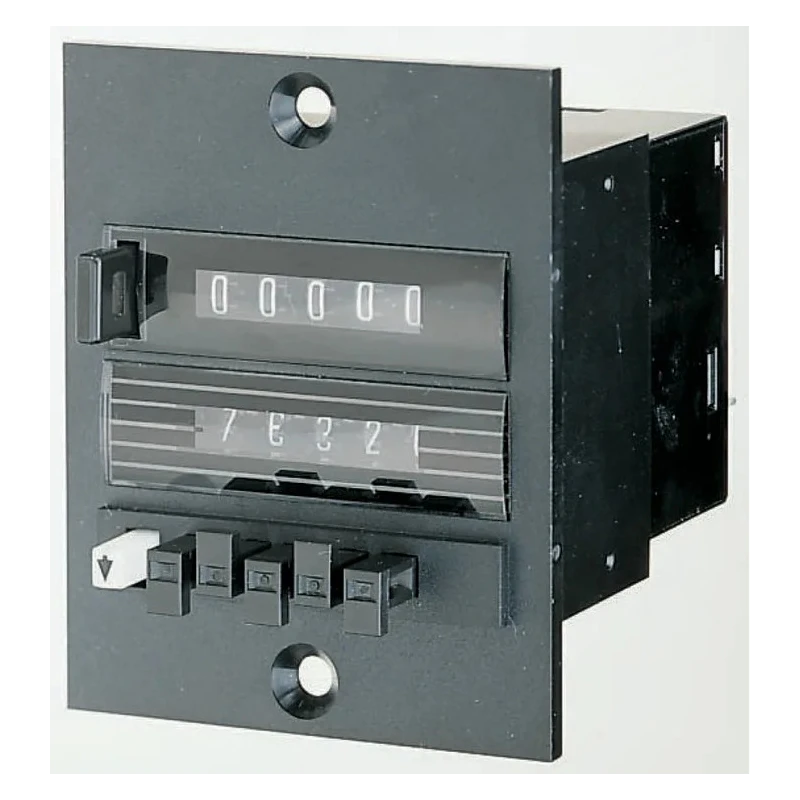

Hengstler Panel Mount 5 Digit Predetermining Batch Counter, Impulse Count Mode, 10 Hz Maximum Count Frequency 0 886 239

Hengstler 0 886 239 is a high-precision panel mount predetermining batch counter featuring a five-digit display. It operates on an impulse count mode with a maximum count frequency of 10 Hz and a digit height of 4mm, powered by a 115V AC supply. This counter is designed for industrial applications requiring accurate impulse counting and preset batch control.

The device incorporates an isolated Single Pole Double Throw (SPDT) micro switch that changes over when the counter reaches the preselected batch count value. The changeover contact is rated to handle up to 220V AC at 20VA load. The preset value is interlocked to prevent accidental adjustment but can still be changed during ongoing counting processes. Both manual and electrical reset versions are available, with contacts returning to their original position upon reset.

With its operating temperature range from -10°C to 50°C, this Hengstler model 0 886 239 counter is suitable for diverse industrial environments. Manufactured in Germany, it reflects stringent quality and reliability standards essential for measurement and control in manufacturing, automation, and electrical impulse counting applications.

Panel mount design suitable for industrial equipment installation. Impulse counting mode allows accurate counting of electrical impulses. Five digits with 4mm digit height for clear display. Maximum count frequency of 10 Hz ensures efficient counting performance.

Isolated SPDT micro switch triggers on reaching preset count values with changeover contacts rated at 220V AC 20VA. Preset value locking prevents accidental changes during operation. Operating temperature range from -10°C to 50°C for reliable use in various environments.

Changeover contacts automatically reset to initial position upon counter reset, available in manual or electrical reset versions. Manufactured in Germany ensuring high-quality standards. No formal standards or approvals specified.

This product is ideal for industrial, electrical, and manufacturing applications where reliable batch counting and impulse control are critical. EnvMart provides this Hengstler 0 886 239 counter to support professional and industrial customers in achieving precise measurement and control.
