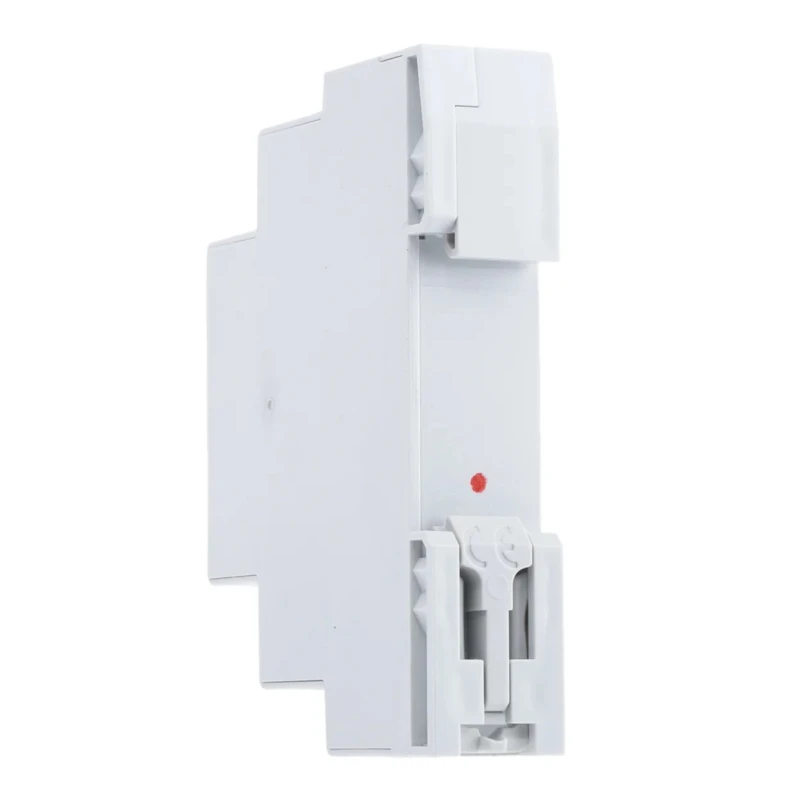

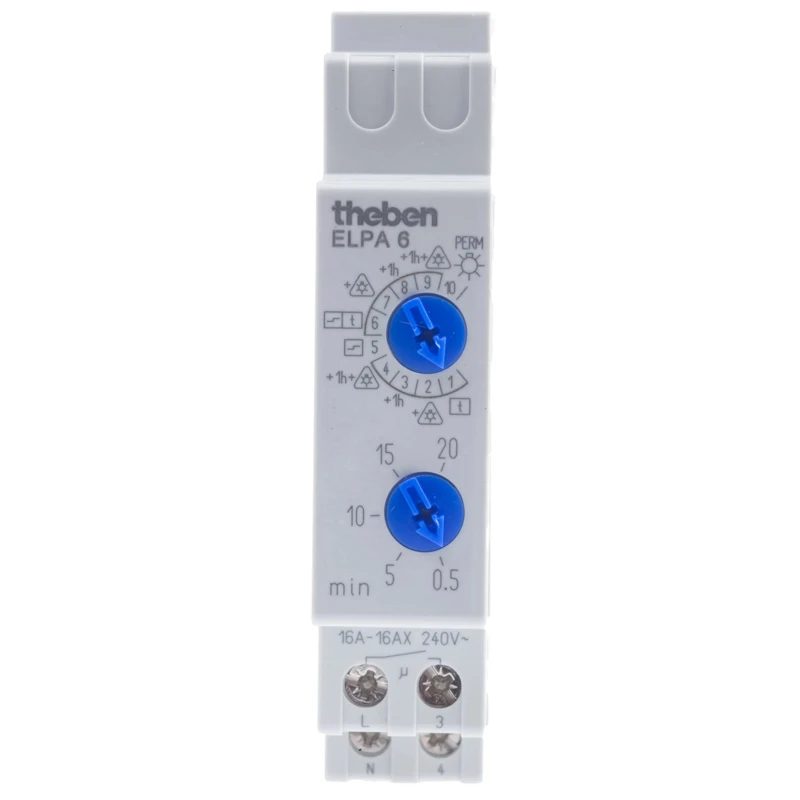

Theben Timer Light Switch 230V AC 1 Channel SPNO Contact ELPA 6 PLUS

Theben ELPA 6 PLUS timer light switch is a high-performance Time Switch designed for controlling lighting circuits and staircase lighting in commercial and residential electrical systems. It operates at a maximum supply voltage of 230V AC and provides 1 channel with a single pole normally open (SPNO) contact configuration.

This timer switch offers an adjustable continuous switching interval ranging from 0.5 to 20 minutes, allowing precise time control tailored to user requirements. The switching is performed via the zero crossing of the AC waveform to minimize electrical stress on contacts, thereby enhancing durability and preventing premature contact wear.

The ELPA 6 PLUS features a multifunction system offering 10 different operational modes selectable via front panel controls. These include functions such as warning interrupt with double flashes to comply with DIN 18015-2 standards, a 60-minute long-duration switching mode, instant reset mode for staircase timer applications, pulse switch modes with drop-out time delay, and permanent lighting options.

Automatic detection of either 3 or 4 conductor wiring simplifies installation and integration into existing electrical setups. The device's compact physical dimensions - 128 mm height and 65.5 mm depth - allow for easy DIN rail mounting within standard electrical distribution boards.

Manufactured in Germany, this timer light switch emphasizes quality, reliability, and compliance with applicable industrial standards, although no specific certifications are listed. It is ideally suited for industrial automation, building management systems, and residential staircase lighting control.

Adjustable continuous switching interval from 0.5 to 20 minutes. Switching via zero to protect electrical contacts. Multi-function system with 10 selectable functions. Automatic conductor detection for streamlined installation.

Compact design with DIN rail mounting compatibility. Designed to extend lamp service life in staircase lighting. Manufactured in Germany ensuring product reliability. Suitable for industrial, commercial, and residential applications.
