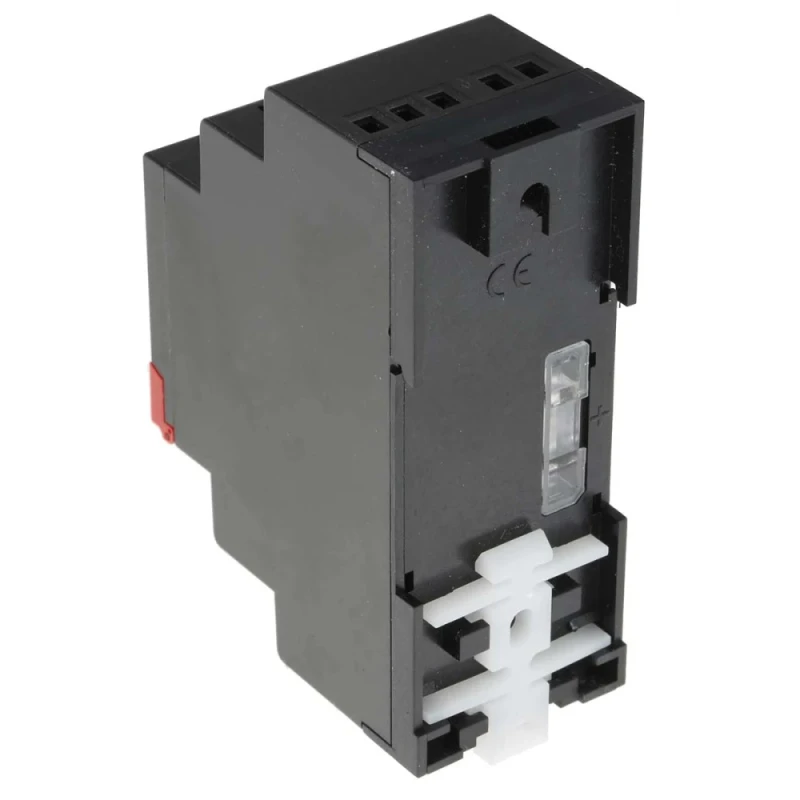

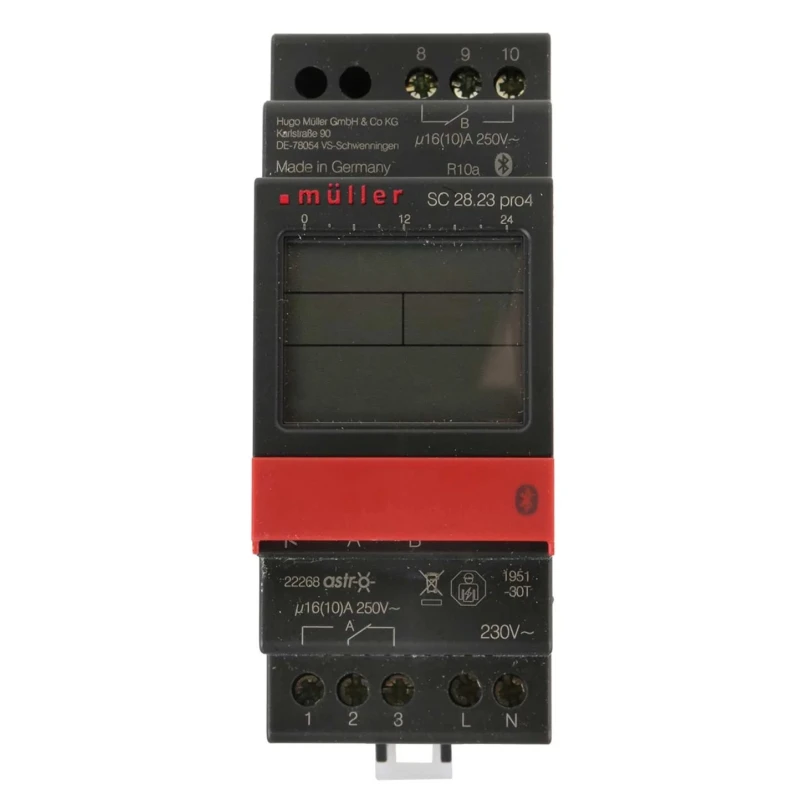

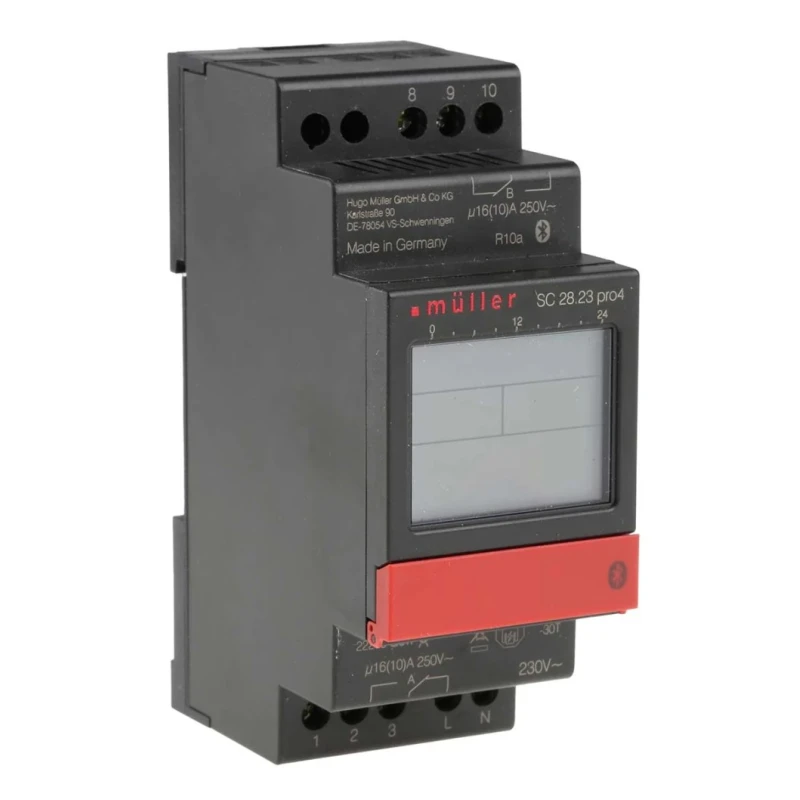

Muller Digital DIN Rail Time Switch 2-Channel 230V AC SC 28.23 PRO4 230V 50-60HZ
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Muller |
| Battery Life | 10year |
| Height | 90mm |
| Model | SC 28.23 PRO4 230V 50-60HZ |
| Depth | 63mm |
| Contact Configuration | DPDT |
| Sub Type | Digital |
| Terminal type | Pull up |
| Number Of Channels | 2 |
| Maximum Supply Voltage | 230V ac |
| Units Measured | Minutes |
| Memory Spaces | 100 |
| Segment Length | 1min |
| Muller Digital SC DIN Rail Time Switch 230V acBrand | Muller |
| 2 channel 24hr/7day time switch,SC28.23Brand | Muller |
Key Features
- Supports daily and weekly programmable schedules for versatile operation.
- Includes an Astro program and economical night function to optimize energy use.
- Equipped with 100 memory locations to store diverse timing configurations.
- Manual permanent mode and override functions allow flexible user control.
- Built-in Bluetooth connectivity enables programming via PC and smartphone apps.
- Switching capacity of 16A per channel supports various industrial loads.
- Features a 10-year battery life with exchangeable CR 2032 battery for long-term reliability.
- Complies with standards DIN EN 60730-1, DIN EN 60730-2-7, RoHS, and ISO 15693.
Product Description
Muller SC 28.23 PRO4 230V 50-60HZ digital DIN Rail time switch is a reliable automation device designed for industrial, commercial, and residential control applications requiring precise timing functions. Operating at a supply voltage of 230V AC, this two-channel time switch enables automated scheduling for illumination, HVAC systems, pump control, and machinery management.
The device supports daily and weekly programming with up to 100 memory spaces, incorporating an Astro program for astronomical timing and an economical night program to optimize energy consumption. Users can program the device via PC or smartphone using Bluetooth connectivity, with free apps available for iOS, Android, and Windows platforms.
Additional features include manual permanent mode, manual override, cycle and random functions, and fully automatic daylight saving time adjustment, ensuring versatile and adaptive time control. The switching capacity of 16 amps per channel allows driving a variety of electrical loads, suitable for private and industrial lighting, motor controls, and presence simulation.
The time switch is designed to DIN rail standards with compact dimensions of 90 mm height and 63 mm depth. It conforms to DIN EN 60730-1 and DIN EN 60730-2-7 safety and performance standards, and adheres to RoHS and ISO 15693 compliance for environmental and quality assurance. The device uses a long-lasting exchangeable CR 2032 battery with an estimated 10-year battery reserve for program retention during power outages.
Supports 2 independent channels for simultaneous control points. Programmable for minutes with a segment length of 1 minute for precision scheduling. Terminal type is pull-up with DPDT contact configuration. Memory capacity of 100 spaces enables complex sequences.
Compact design fits standard DIN rail enclosures for installations. Ideal for industrial, laboratory, HVAC, water treatment, commercial lighting, and manufacturing process control applications.
This Muller digital DIN Rail time switch combines advanced features and robust design, making it an ideal choice for precise automation tasks with long-term reliability. It is a premium solution for time-based electrical switching on DIN rails in various industrial and commercial setups.
Explore more high-quality industrial automation products in the Time Switch category at EnvMart for optimized control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching capacity of this model is 16A per channel, allowing it to support various industrial loads.
It supports daily and weekly programmable schedules, with up to 100 memory locations for diverse timing configurations, including an Astro program and an economical night function.
Programming can be done via PC or smartphone using built-in Bluetooth connectivity, with compatible apps available for iOS, Android, and Windows platforms.
The device has a height of 90 mm and a depth of 63 mm, making it compact for standard DIN rail installations.
It features a 10-year battery life with an exchangeable CR 2032 battery, ensuring long-term reliability and program retention during power outages.
This model is a 2-channel time switch, allowing for simultaneous control of two independent points.
The terminal type is pull-up with a DPDT contact configuration, suitable for various applications.
It complies with DIN EN 60730-1, DIN EN 60730-2-7 safety and performance standards, as well as RoHS and ISO 15693 for environmental compliance.
The segment length for programming is 1 minute, allowing for precise scheduling of events.
It is suitable for industrial, laboratory, HVAC, water treatment, commercial lighting, and manufacturing process control applications.
The maximum supply voltage for this model is 230V AC, making it suitable for standard electrical systems.
Yes, it includes manual permanent mode and manual override functions, allowing for flexible user control over scheduling.
