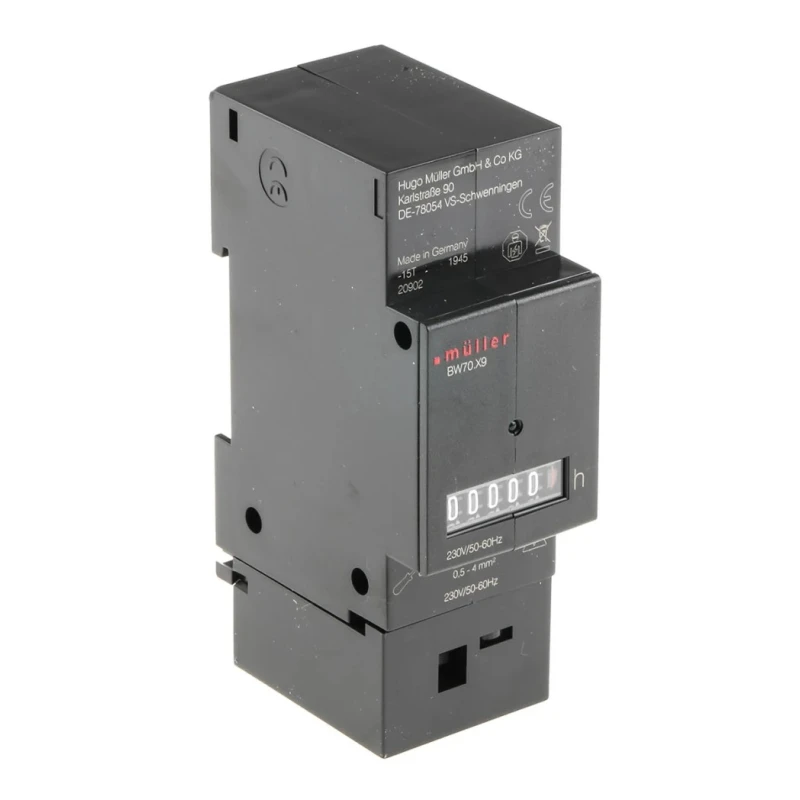

Muller 5 Digit DIN Rail Mounted Hour Counter Meter 230V AC BW70

Muller BW70 is a precision 5 digit hour meter counter with a 230V AC power supply rating, specifically designed for industrial process control applications. It provides elapsed time measurement with a mechanically driven analogue display on a single module suitable for DIN rail mounting.

The counter features non-resettable operation ensuring secure and tamper-proof recording of running hours, making it ideal for monitoring maintenance intervals of machinery such as pumps, motors, and equipment within control cabinets and industrial plants.

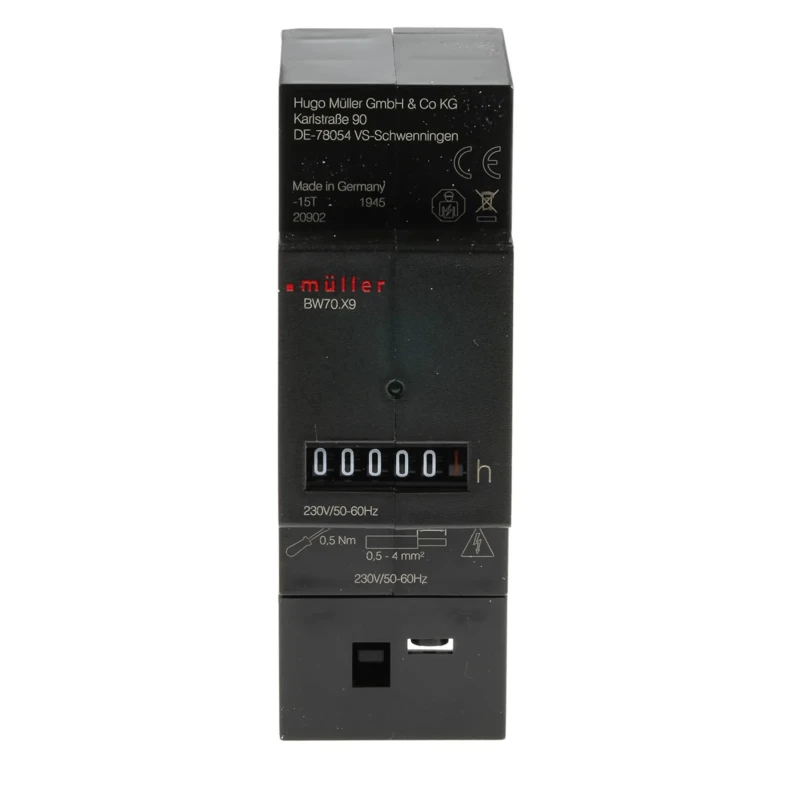

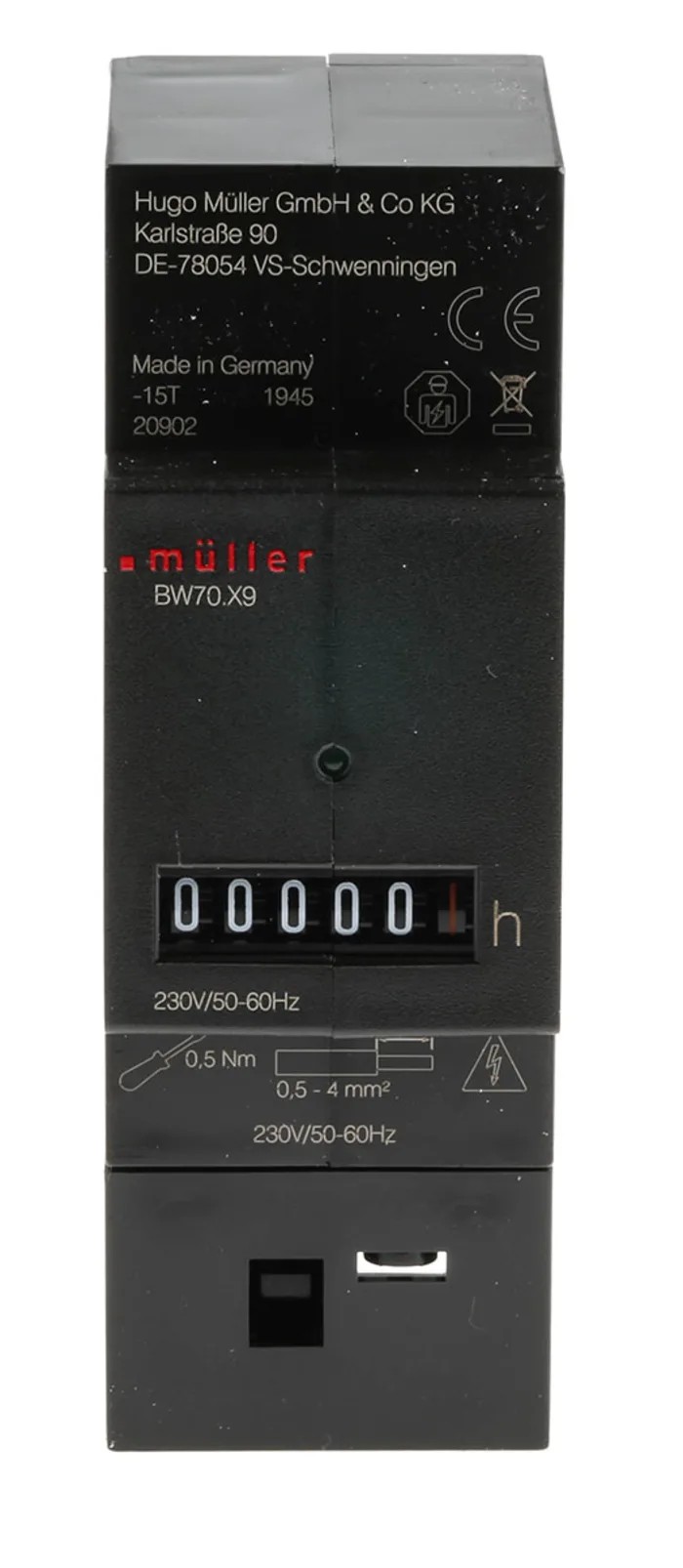

Its numeric display uses white numerals with a red decimal figure enhancing readability under various lighting conditions. The 4.4 mm digit height and flashing LED operation indicator further aid status checks at a glance.

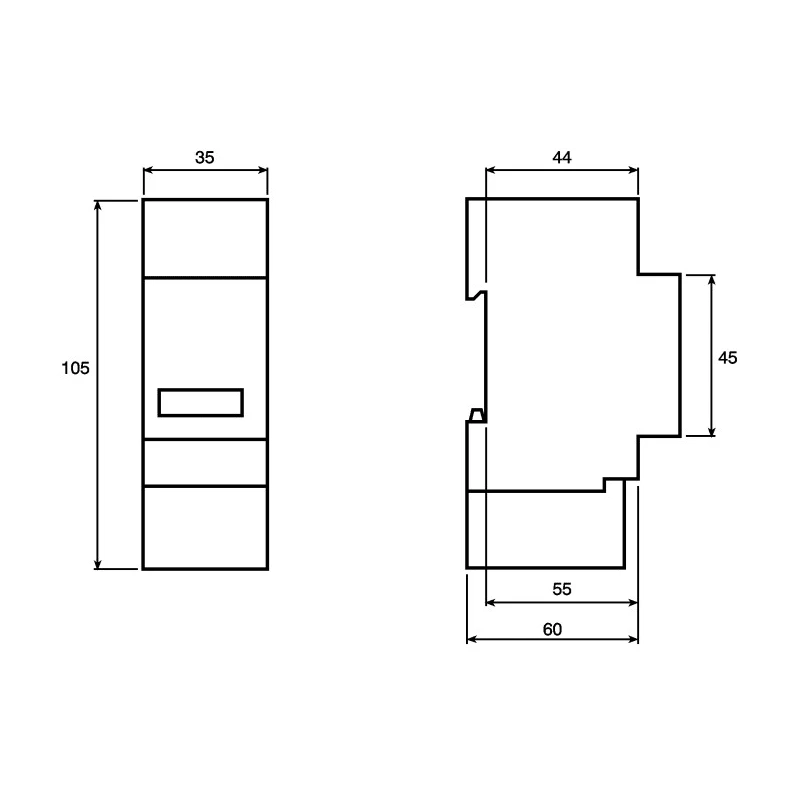

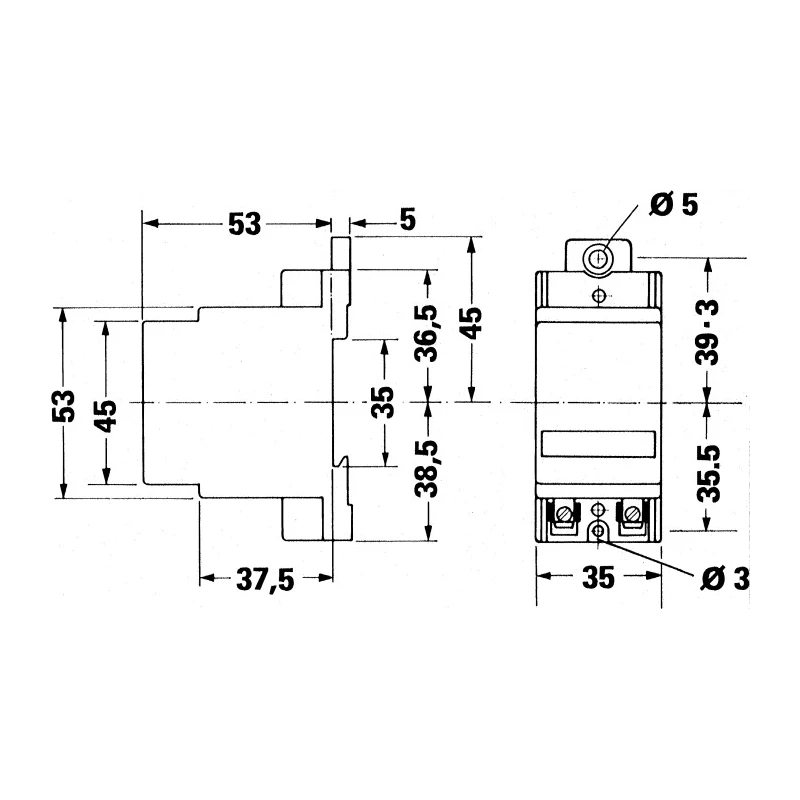

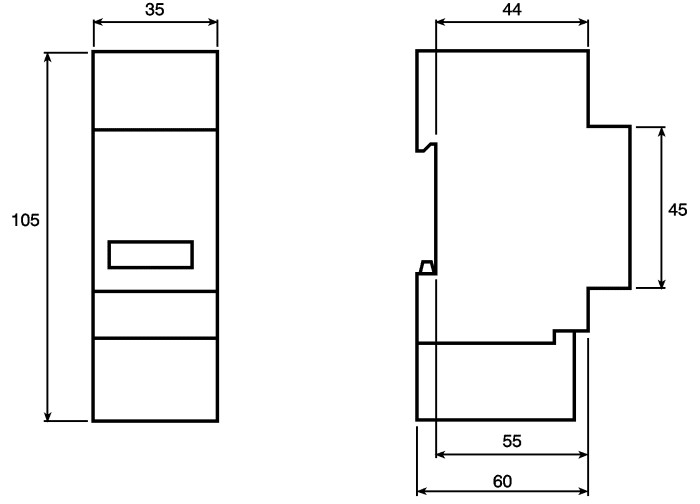

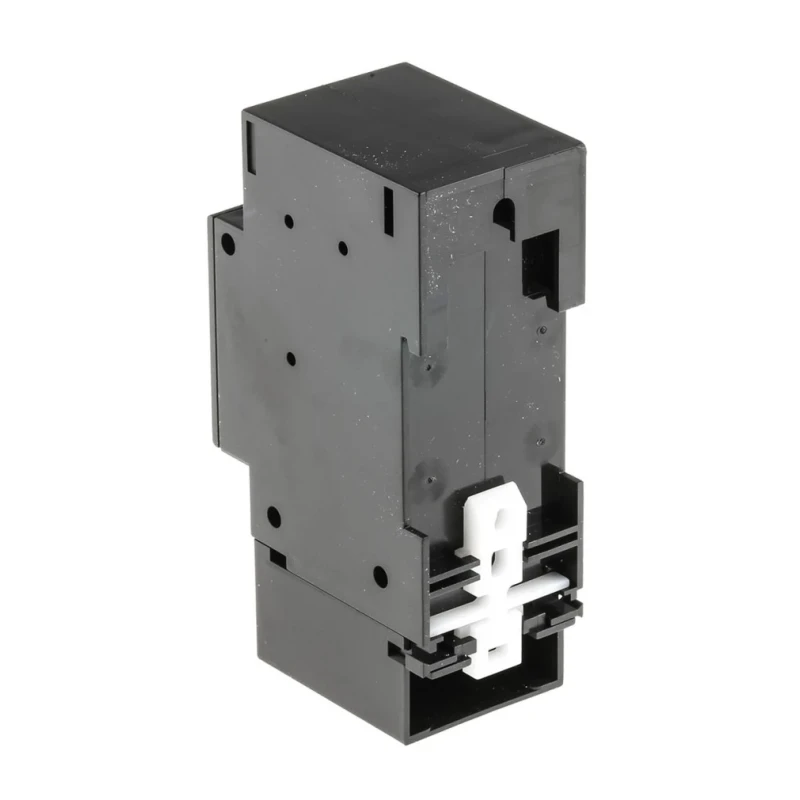

Mounting is via a compact flush mount with dimensions of 45 mm width by 17.5 mm depth, enabling easy integration into control panels. Connection terminal covers and screw pull-up terminals provide safe and reliable wiring with touch-proof safety.

The unit operates accurately over a temperature range of -15°C to 55°C, with a meter accuracy to 0.01 hours, and is rated IP50 for dust protection according to DIN EN 60529 standards.

Muller BW70 is widely used in industrial automation, plant construction, and electrical control systems for tracking equipment usage and scheduling timely maintenance to optimize uptime.

This product is non-resettable for permanent accumulation of operating hours. It is ideally suited for monitoring operating times of pumps, machines, and industrial processes. The compact DIN rail mount design fits standard industrial control cabinets.

Operation indicator LED and clear digit display enable efficient process monitoring. Bearing reliability and sturdy construction ensure long service life in industrial applications. Explore more automation and process control components at EnvMart for your industrial needs.
