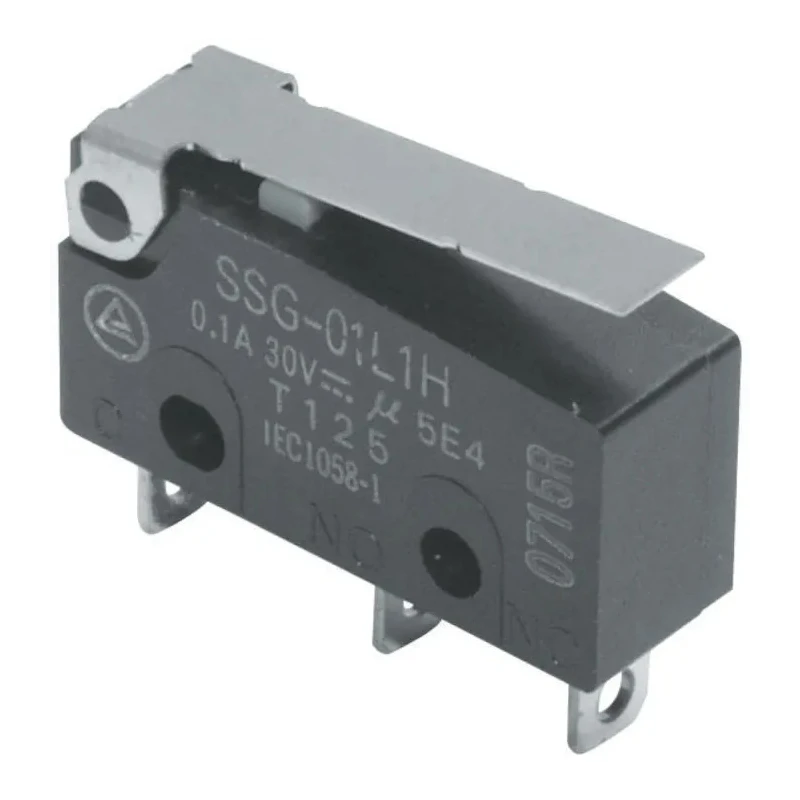

Omron Subminiature Micro Switch Hinge Lever Solder Terminal 100mA 250V AC 30V DC SPDT IP40 SSG-01L1H
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Model | SSG-01L1H |
| IP Rating | IP40 |
| Series | SSG |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.6N |
| Mechanical Life | 10000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
| Dimensions (body) | H9.9mm, W19.8mm, D6.4mm |
Key Features
- Subminiature micro switch in V4 style housing designed for compact installations.
- Rated for 100mA current switching at 250V AC and 30V DC voltages.
- Single pole double throw (SPDT) contact configuration provides versatile switching.
- Constructed with a hinge lever actuator and solder terminal for ease of connection.
- Has an ingress protection rating of IP40 to guard against solid foreign objects.
- Operates with low actuation force of 0.6N for precise switching action.
- Wide operating temperature range from -25°C up to 125°C ensures robust performance.
- Mechanical life rated at 10 million operations for long durability.
Product Description
Omron SSG-01L1H is a high-quality subminiature micro switch featuring a hinge lever actuator and solder terminal connections. This micro switch is engineered to provide reliable switching performance in various industrial, electrical, and automation applications, where compact size and durability are essential.
Designed in a V4 style housing, the switch supports a contact current rating of 100mA at 250V AC and 30V DC, suitable for low voltage control circuits. The SPDT contact configuration allows signal switching versatility, making it ideal for control panels, electronic devices, and instrumentation.
The hinge lever actuator ensures precision and ease of operation with an actuation force of only 0.6N. Its IP40 ingress protection rating safeguards against entry of solid particles exceeding 1mm in size, appropriate for indoor and enclosed environments.
Operating reliably over a wide temperature range from -25°C to 125°C, this micro switch provides a mechanical lifespan of up to 10 million operations, ensuring long service life in demanding industrial and commercial environments.
Manufactured in Japan and compliant with RoHS environmental standards, the SSG-01L1H offers quality assurance and safety. Its compact dimensions of 9.9mm height, 19.8mm width, and 6.4mm depth allow it to be installed in tight spaces where space-saving components are necessary.
Subminiature V4 style housing. 100mA switching capability at 250V AC and 30V DC. SPDT contact configuration for flexible circuit control. Hinge lever actuator with solder terminal connections. IP40 ingress protection against solid debris.
Low operating force of 0.6N for precision switching. Wide temperature tolerance from -25 to 125°C. Long mechanical life rated at 10 million operations. RoHS compliant and made in Japan with high quality. Compact form factor with H9.9mm, W19.8mm, D6.4mm dimensions.
This micro switch is well-suited for use in industrial automation, electrical controls, manufacturing equipment, HVAC systems, and other applications requiring compact, reliable switching components. Explore the full range of Omron Micro Switches and related electrical components at EnvMart to find solutions tailored to your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
This micro switch features a single pole double throw (SPDT) contact configuration.
It operates with a low actuation force of 0.6N, allowing for precise switching action.
The dimensions of this micro switch are 9.9mm in height, 19.8mm in width, and 6.4mm in depth.
It has an ingress protection rating of IP40, which guards against solid foreign objects larger than 1mm.
The mechanical life of this model is rated at 10 million operations.
It is rated for contact voltages of 250V AC and 30V DC.
This model utilizes a hinge lever actuator for its switching mechanism.
This micro switch is manufactured in Japan.
Yes, it is compliant with RoHS environmental standards.
It features solder terminal connections for ease of installation.
This micro switch is suitable for various applications including industrial automation, electrical controls, and HVAC systems.
