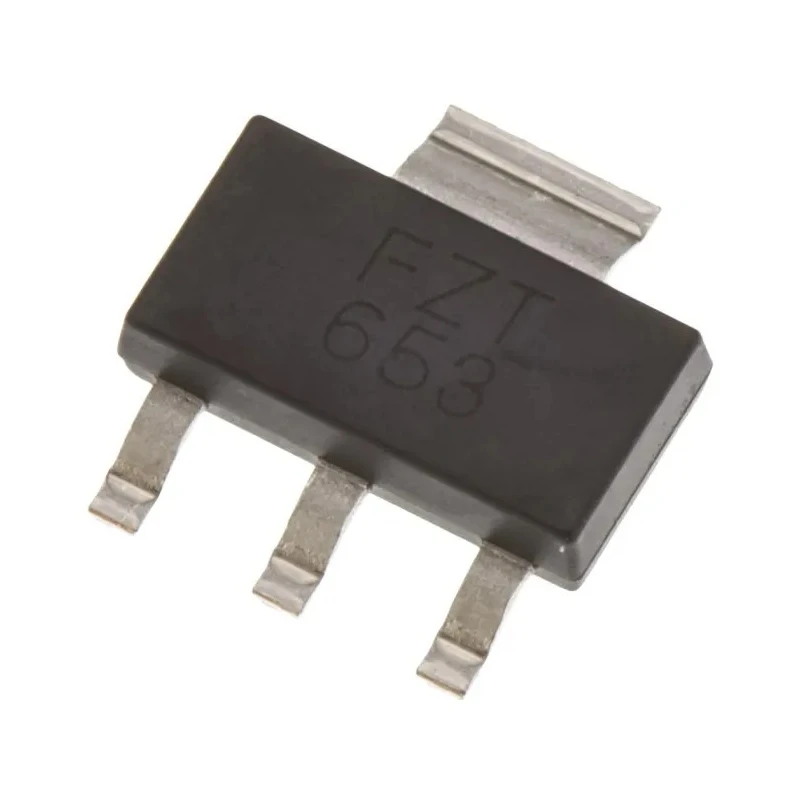

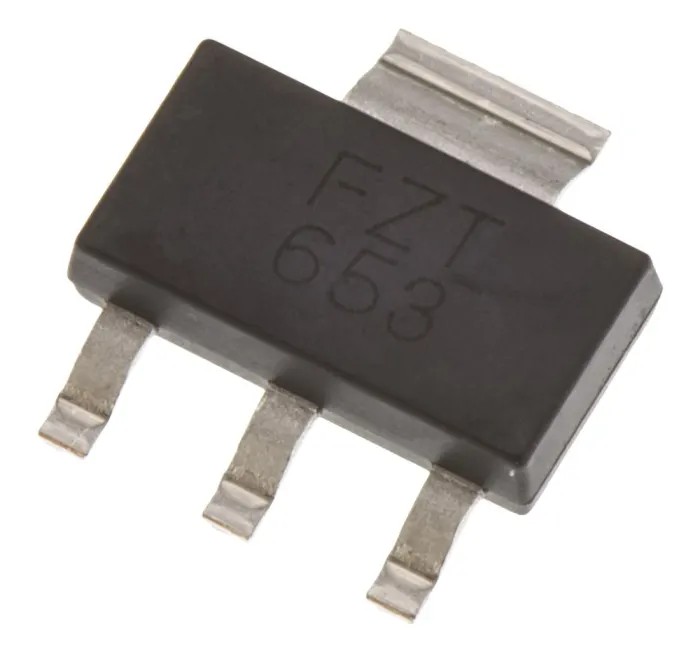

DiodesZetex High Performance 2 A NPN 100 V Bipolar Transistor in 4-Pin SOT-223 Package FZT653TA

DiodesZetex FZT653TA is a high performance NPN transistor designed for electronic applications requiring up to 2 A collector current and a maximum collector-emitter voltage of 100 V. Packaged in a compact 4-pin SOT-223 surface mount package, this transistor ensures efficient operation with low saturation voltage below 300 mV at 1 A.

The device supports a maximum power dissipation of 2 watts, making it well suited for medium power switching and amplification tasks in automotive, industrial, and consumer electronics. It is qualified to meet the stringent AEC-Q101 automotive standard for reliability in harsh environments.

With a wide operating temperature range from -55°C to 150°C, the FZT653TA transistor can be deployed in demanding environmental conditions. Its maximum transition frequency of 175 MHz enables use in moderately high frequency applications.

The 4-pin SOT-223 package has compact dimensions with a length of 6.55 mm, width of 7.1 mm, and height of 1.65 mm, providing easy PCB footprint integration for surface mount technology. The device is RoHS compliant and environmentally friendly with lead-free and halogen-free finishes.

This transistor is suitable for industrial electronics, automotive control systems, power regulation modules, audio amplifiers, and embedded systems. The low saturation voltage characteristic reduces power loss and improves efficiency in switching circuits.

The robust thermal and electrical characteristics ensure stable long-term operation under varying load and temperatures. Typical applications include switching regulators, motor control circuits, and signal amplification.

Package structure provides effective heat dissipation through the tab pin, enhancing reliability during prolonged use. Explore EnvMart categories for a broad selection of transistors and bipolar components ideal for your electronic design and repair needs.
