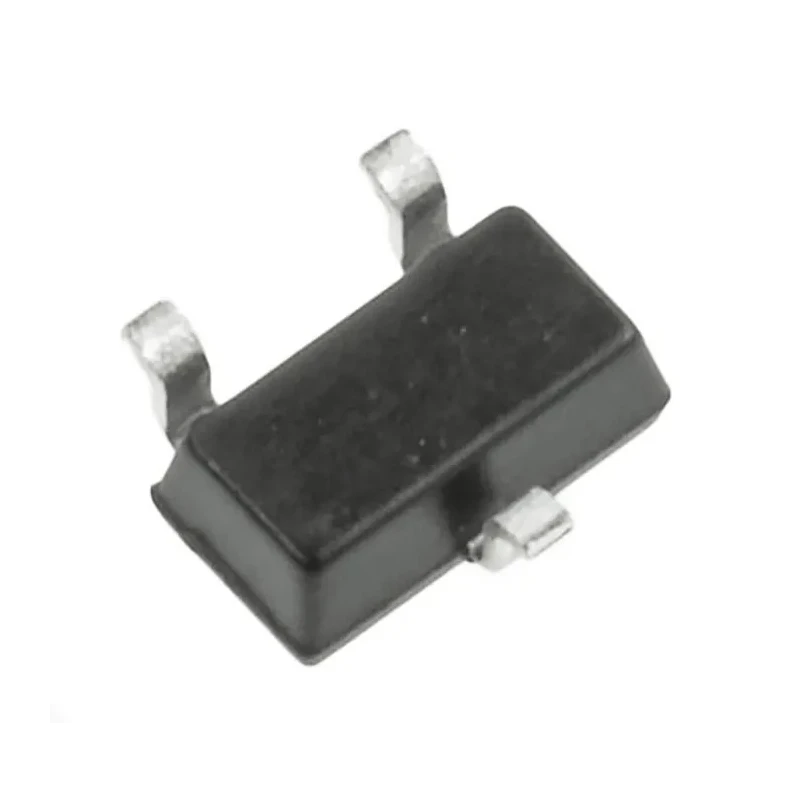

DiodesZetex Small Signal NPN Transistor 100 mA 65 V 3-Pin SOT-323 BC846AW-7-F

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Small Signal NPN Transistor 100 mA 65 V 3-Pin SOT-323 BC846AW-7-F

Name: DiodesZetex Small Signal NPN Transistor 100 mA 65 V 3-Pin SOT-323 BC846AW-7-F
Brand: DiodesZetex
SKU: 316023
Price: 2.31 INR
Availability: InStock



Category Bipolar Transistors Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.1mm
Length	3mm
Model	BC846AW-7-F
Width	2.5mm
Mount Type	Surface
Series	BC846AW
Maximum Operating Temperature	150°C
Package Type	SOT-323
Minimum Operating Temperature	-65°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	65V
Minimum DC Current Gain hFE	110
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	6V
Maximum Collector Base Voltage VCBO	80V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	200mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
Maximum Transition Frequency ft	100MHz

Key Features

This transistor features a maximum power dissipation of 200 mW ensuring safe operation under typical load conditions.
It has a minimum DC current gain (hFE) of 110 for effective amplification in signal circuits.
The device supports a maximum transition frequency of 100 MHz making it suitable for high-frequency applications.
Its rated operating temperature range spans from -65°C up to 150°C for reliable performance in industrial environments.
The small footprint SOT-323 package allows surface mounting on PCBs for space-constrained designs.
The transistor configuration is single and it is designed with NPN polarity typical of bipolar junction transistors.
The component complies with automotive standard AEC-Q101, confirming its quality for automotive electronics.
Physical dimensions measure 3 mm length, 2.5 mm width, and 1.1 mm height.

Product Description

DiodesZetex BC846AW-7-F is a high-quality small signal NPN transistor designed for industrial, automotive, and electronic circuit applications requiring reliable signal amplification and switching.

It supports a maximum DC collector current of 100 mA and can handle collector emitter voltages up to 65 V, making it versatile for a wide range of low power applications in electronics and automation.

The transistor's maximum power dissipation is rated at 200 mW, which helps ensure efficient heat management during operation. It features a minimum current gain (hFE) of 110 which is essential in amplification tasks.

This transistor operates effectively over a wide temperature range from -65°C to 150°C, which suits it well for harsh environmental conditions seen in automotive and industrial settings.

The device uses a surface mountable SOT-323 package with a compact three-pin configuration. Its small physical size (3 mm length, 2.5 mm width, 1.1 mm height) facilitates incorporation into dense printed circuit board layouts.

With a maximum transition frequency of 100 MHz, it provides rapid switching suitable for signal processing and frequency-related applications. The BC846AW series from DiodesZetex is known for robustness and reliability, complying with automotive AEC-Q101 standards, underscoring its suitability for automotive electronics.

This product is ideal for use in electronic circuits, automotive electronics, industrial control systems, and general semiconductor applications. Set includes a single BC846AW-7-F transistor in SOT-323 package ready for surface mount usage.

Explore the EnvMart catalog for more semiconductor components and bipolars transistors engineered for professional use cases.

Explore more products in our Bipolar Transistors category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business
