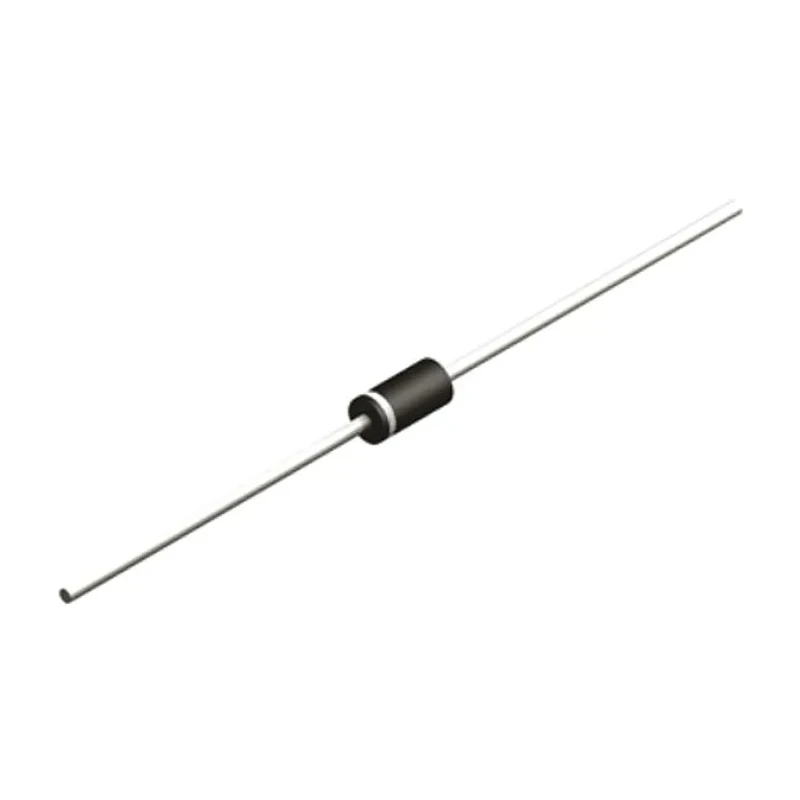

Vishay 1.51 V General Purpose Zener Diode Single 1.3 W 5 % Through Hole 2-Pin DO-41 ZPY51-TR

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1.51 V General Purpose Zener Diode Single 1.3 W 5 % Through Hole 2-Pin DO-41 ZPY51-TR

Name: Vishay 1.51 V General Purpose Zener Diode Single 1.3 W 5 % Through Hole 2-Pin DO-41 ZPY51-TR
Brand: Vishay
SKU: 315774
Price: 0.09 USD
Availability: InStock



Category Zener Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Length	4.1mm
Model	ZPY51-TR
Mount Type	Through Hole
Maximum Operating Temperature	175°C
Package Type	DO-41
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	1.3W
Diode Configuration	Single
Test Current It	10mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	51V
Zener Type	General Purpose
Maximum Zener Impedance	100Ω
Magnatec, 51V Zener Diode 5% 1.3 W Through Hole 2-Pin DO-41Brand	Magnatec

Key Features

Single diode configuration suitable for stable voltage regulation.
Nominal zener voltage of 1.51 volts with ±5% tolerance.
Supports maximum power dissipation of 1.3 watts.
Through hole mount type with DO-41 package ensures easy PCB installation.
Pin count of 2 with a length of 4.1 mm for compact design.
Maximum zener impedance of 100 ohms enhances performance stability.
Test current set at 10 mA for reliable operation testing.
Maximum reverse leakage current of 500 nA for improved efficiency.

Product Description

Vishay ZPY51-TR general purpose Zener diode offers a nominal zener voltage of 1.51 volts with a maximum power dissipation rating of 1.3 watts. Designed as a single diode configuration with a ±5% voltage tolerance, it features a through hole mount type with a 2-pin DO-41 package, measuring 4.1 mm in length. This silicon planar power Zener Diode is highly suitable for applications in voltage stabilization and clipping circuits requiring high power rating and reliability.

The diode operates efficiently at a test current of 10 mA and exhibits a low maximum zener impedance of 100 ohms, which helps maintain voltage stability in circuits. It supports a maximum reverse leakage current of 500 nA and can function reliably within a temperature range from -55°C to 175°C, making it appropriate for a wide scope of industrial and electronic applications.

Compliant with RoHS standards, this diode is environmentally safe and meets the necessary regulatory requirements. It is widely used in electronic components, power supplies, and control circuits in industrial, laboratory, and manufacturing environments. Available in a reliable Vishay package with a through hole mount, it ensures ease of assembly and maintenance in printed circuit boards.

Single diode configuration for precise voltage regulation. Nominal voltage of 1.51 V with ±5% tolerance to ensure stability. Maximum power dissipation of 1.3 W suitable for moderate power requirements. Compact through hole mount DO-41 package for efficient PCB layout.

Operating temperature range from -55°C up to 175°C for harsh environments. Maximum zener impedance of 100 ohms enhances voltage consistency. Low reverse leakage current of 500 nA reduces losses. Tested at 10 mA for reliable operational standards.

RoHS compliant ensuring alignment with environmental standards. Ideal for industrial, laboratory, and manufacturing voltage stabilization applications. Explore more high-quality semiconductor components from Vishay to optimize your electronic designs and industrial projects at EnvMart.
