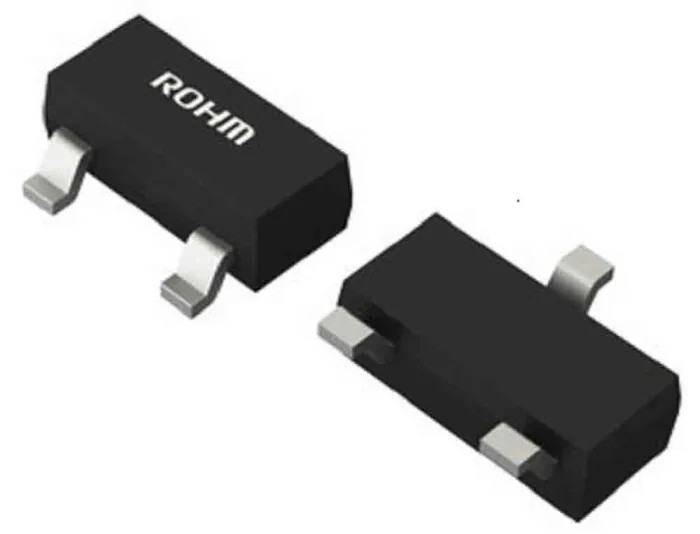

ROHM Zener Diode 16 V 250 mW Surface Mount 3-Pin SOT-23 BZX84B16VLYT116

Name: ROHM Zener Diode 16 V 250 mW Surface Mount 3-Pin SOT-23 BZX84B16VLYT116
Brand: ROHM
SKU: 291687
Price: 0.07 USD
Availability: InStock



Category Zener Diode Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	1.15mm
Length	3.1mm
Model	BZX84B16VLYT116
Mount Type	Surface
Series	BZX84B
Maximum Operating Temperature	150°C
Package Type	SOT-23
Standards/Approvals	RoHS
Pin Count	3
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	100nA
Nominal Zener Voltage Vz	16V
Zener Type	Voltage Regulator
Maximum Zener Impedance	40Ω
Typical Voltage Temperature Coefficient	14.3mV/°C

Key Features

This diode is designed for voltage regulation with a single diode configuration.
It features a small mold type with high reliability for electronic circuit protection.
The device supports automotive applications meeting the AEC-Q101 standard.
Maximum reverse leakage current is low at 100 nA, ensuring minimal power loss.
Operating temperature ranges up to 150°C for robust performance.
The package has a length of 3.1 mm and height of 1.15 mm for space-efficient mounting.
Maximum zener impedance is 40 ohms, providing stable voltage regulation.
The test current is 5 mA, suitable for typical voltage regulation scenarios.

Product Description

The ROHM BZX84B16VLYT116 Zener Diode is ideal for precise voltage regulation in electronic circuits. It has a nominal zener voltage of 16 volts and a maximum power dissipation of 250 milliwatts. Encapsulated in a compact SOT-23 3-pin surface mount package, it delivers efficient space utilization while providing reliable performance.

This diode is configured as a single element per chip and is designed for surface mounting, facilitating automated PCB assembly. The device boasts a low maximum reverse leakage current of 100 nA and a maximum zener impedance of 40 ohms, resulting in stable voltage regulation and minimal power consumption.

Its maximum operating temperature of 150°C enables durability and robust operation across a wide thermal range. ROHM’s BZX84B series Zener Diodes are recognized for their high reliability, small mold size, and automotive-grade qualification (AEC-Q101), making them suitable for automotive, industrial, and consumer electronic applications.

This diode is suited for use in voltage regulator circuits to maintain constant voltage levels. Compact SOT-23 packaging allows integration into space-constrained PCB layouts. High reliability and adherence to RoHS standards ensure environmental compliance and longevity.

Designed for tightly controlled electrical characteristics, aiding precision analog and digital circuit designs. Typical applications include power supply protection, voltage clamping, and circuit stabilization. This product is extensively used in industrial, automotive, consumer electronics, and other high-reliability environments requiring accurate voltage regulation.
