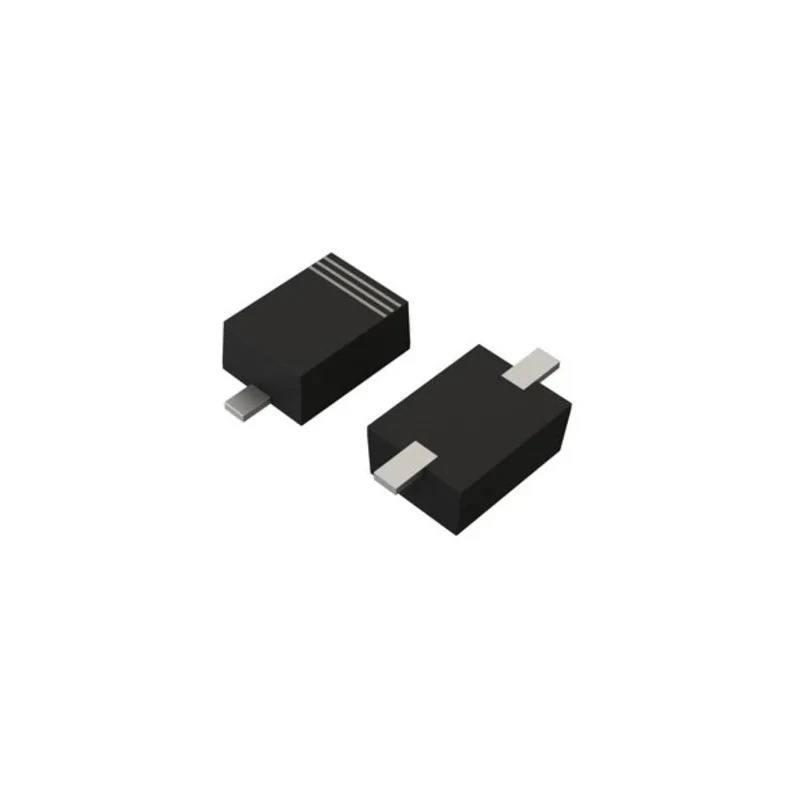

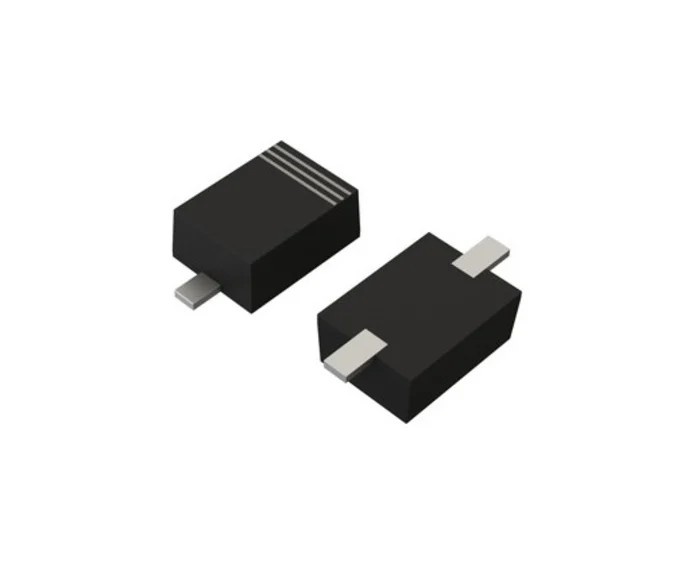

ROHM 120 V Zener Diode Isolated Surface Mount 200 mW Power Dissipation SOD-323FL UDZLVFHTE-17120

ROHM UDZLVFHTE-17120 120 V Zener Diode is designed as a compact, isolated voltage regulator diode suitable for integration into modern electronic circuits. Its surface mount SOD-323FL package allows for efficient PCB space usage. The diode features a maximum power dissipation of 200 mW, making it ideal for low power voltage regulation applications in automotive, industrial, and commercial electronic devices.

Thanks to its high maximum operating temperature of up to 150°C and wide temperature operating range from -55°C, this diode offers high reliability even in extreme environmental conditions. Its low maximum reverse leakage current of 200 nA minimizes unwanted power loss and improves circuit efficiency.

The device meets RoHS compliance requirements and the stringent automotive industry standard AEC-Q101, ensuring quality and safety in automotive electronics systems. With a test current of 1 mA, the device's specifications are rigorously validated for consistent performance.

The physical dimensions feature a length of 2.7 mm and a height of 0.9 mm, permitting compact and dense PCB design implementations. The isolated diode configuration supports a broad range of circuit designs requiring voltage regulation while maintaining electrical isolation.

Nominal voltage rating of 120 V suitable for high-voltage stability. Compact surface mount package type SOD-323FL for modern electronic assembly. 200 mW maximum power dissipation enables use in sensitive low-power applications.

Wide operating temperature range from -55°C to +150°C for harsh environments. Low leakage current and stable voltage regulation ensure long-term reliability. Conforms to RoHS and AEC-Q101 automotive standards. Small form factor improves space utilization on PCBs.

Pin count of 2 reflects typical diode interface simplicity.

This Zener diode is well suited for industrial, automotive, consumer electronics, and laboratory power regulation circuits. It offers calibrated voltage regulation to protect sensitive components and maintain system stability under varying electrical loads.
