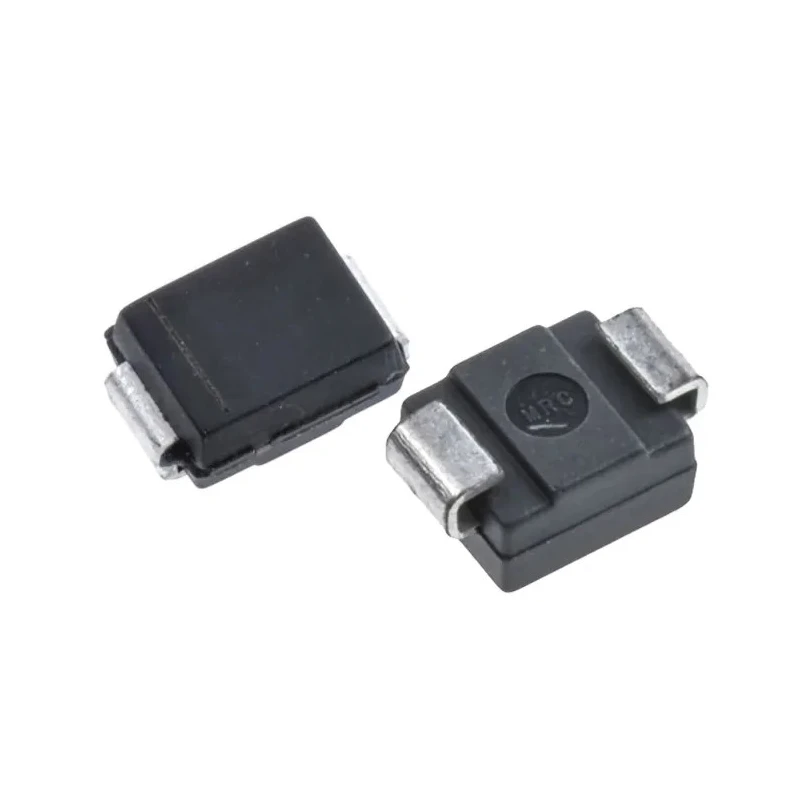

STMicroelectronics 1, 64.1 V Bi-Directional Zener Diode Surface Mount DO-214AA (SMB) 600 W SM6T75CAY

Name: STMicroelectronics 1, 64.1 V Bi-Directional Zener Diode Surface Mount DO-214AA (SMB) 600 W SM6T75CAY
Brand: STMicroelectronics
SKU: 262507
Price: 0.21 USD
Availability: InStock



Category Zener Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.45mm
Length	5.6mm
Model	SM6T75CAY
Mount Type	Surface
Series	SM6TY
Maximum Operating Temperature	150°C
Package Type	DO-214AA (SMB)
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	600W
Diode Configuration	Single
Maximum Reverse Leakage Current	200nA
Nominal Zener Voltage Vz	64.1V
Zener Type	Bi-Directional
Low leakage current	0.2 μA at 25 °C and 1 μA at 85 °C
Peak pulse power	600 W (10/1000 μs) and 4 kW (8/20 μs)
High power capability at Tj max.	up to 515 W (10/1000 μs)
Lead finishing	matte tin plating

Key Features

Designed to protect sensitive automotive circuits against surges and electrostatic discharges.
Utilizes planar technology for low leakage current and high junction temperature stability.
Peak pulse power ratings are 600 W (10/1000 μs) and 4 kW (8/20 μs).
Operating temperature range from -55°C to 150°C ensuring reliable performance.
Features matte tin plating on leads for enhanced solderability.
Low leakage current of 0.2 μA at 25 °C and 1 μA at 85 °C.
Complies with automotive standard AEC-Q101 for robust automotive applications.

Product Description

STMicroelectronics SM6T75CAY is a high-performance 64.1 V bi-directional Zener diode designed for surface mount applications in the DO-214AA (SMB) package. It is engineered primarily for automotive circuits to provide protection against transient surges and electrostatic discharge, enhancing circuit reliability and longevity.

This diode features planar technology that supports low leakage currents and high junction temperatures up to 150 °C, ensuring long-term stability under demanding conditions. The device's peak pulse power capabilities include 600 W for 10/1000 μs pulses and 4 kW for 8/20 μs pulses, providing robust transient suppression.

Specifically compliant with the automotive grade standard AEC-Q101, it meets stringent qualifications for use in critical automotive and industrial environments. The diode is designed with 2 pins and a compact form factor measuring 5.6 mm in length and 2.45 mm in height, facilitating easy integration into compact PCB designs.

This product is suited for industrial, automotive, and electronics manufacturing applications where reliable voltage regulation and surge protection are essential. It exhibits a minimal reverse leakage current of 200 nA and operational temperature range from -55 °C to 150 °C, allowing versatile usage across various environmental conditions.

Protects automotive and sensitive electronic circuits from voltage surges and electrostatic events. Planar technology supports low leakage and high temperature operation. Peak pulse power up to 600 W (10/1000 μs) and 4 kW (8/20 μs) for transient suppression.

Compact DO-214AA (SMB) package suitable for surface mount installations. Dark matte tin plating on leads ensures solderability and long-term reliability. Meets AEC-Q101 automotive standard requirements. Operates reliably from -55 °C to 150 °C ambient temperature.

Low reverse leakage current ensures stable performance.

This Zener Diode model SM6T75CAY from STMicroelectronics is an ideal component for applications requiring precise voltage regulation and high surge immunity. Explore more products in our Electronics & Electricals catalog for automotive and industrial semiconductor solutions.
