| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.7mm |
| Length | 1.7mm |
| Model | EDZVFHT2R10B |
| Mount Type | Surface |
| Series | EDZVFH |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 150mW |
| Diode Configuration | Isolated |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 10.21V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 60Ω |

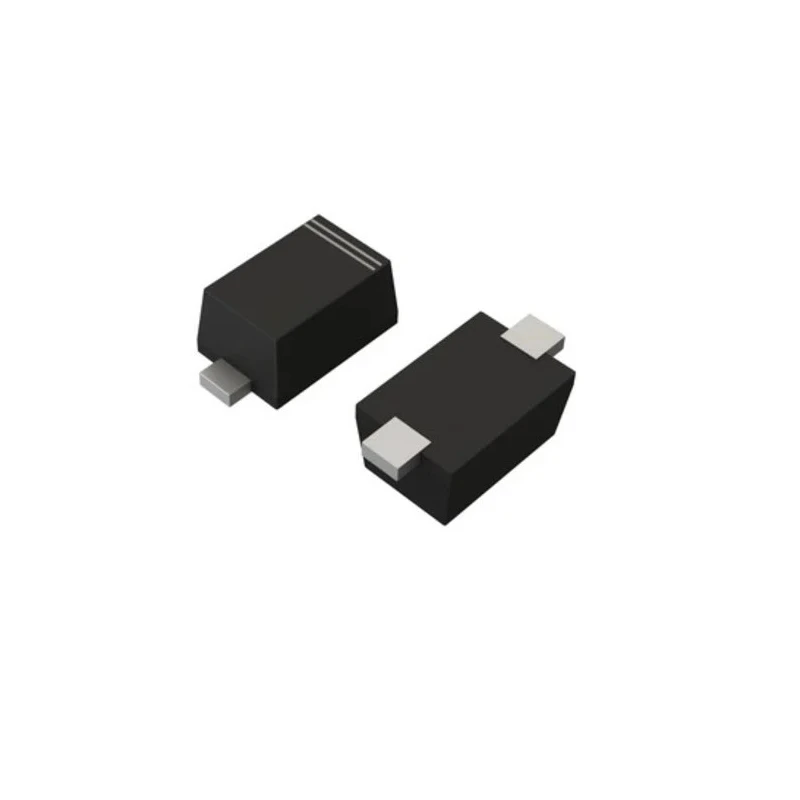

The ROHM EDZVFHT2R10B Zener Diode offers a nominal Zener voltage of 10.21 V with an isolated diode configuration designed for precise voltage regulation in electronic devices. Housed in a compact SOD-523 surface mount package, it supports a maximum power dissipation of 150 mW. This diode features a maximum operating temperature of 150°C, making it suitable for use in industrial, automotive, laboratory, and consumer electronics applications where thermal stability and reliability are critical.
Constructed using a silicon epitaxial planar structure, it ensures high performance and durability. The diode exhibits low maximum reverse leakage current of 100 nA and a maximum Zener impedance of 60 Ω, enhancing efficiency and reducing power loss. The 2-pin configuration enables easy implementation in circuit designs focused on voltage regulation and protection.
Complying with the AEC-Q101 automotive standard, this diode provides tested reliability expected in stringent automotive and industrial environments. Its small mold type and surface mount design help optimize PCB layout and reduce space requirements.
Nominal Zener voltage of 10.21 V for effective voltage regulation. Isolated diode configuration minimizes interference and leakage. 150 mW maximum power dissipation supports moderate power circuits. AEC-Q101 certification ensures automotive-grade reliability.
Compact SOD-523 package aids in space-saving device assembly. High maximum operating temperature of 150°C enhances environmental resilience. Low reverse leakage current improves energy efficiency. Silicon epitaxial planar technology enhances diode stability.
2-pin surface mount configuration facilitates easy PCB integration.
This ROHM Zener Diode model EDZVFHT2R10B is ideal for applications requiring stable voltage regulation such as power supplies, automotive electronics, instrumentation, industrial controls, and telecommunications equipment.
