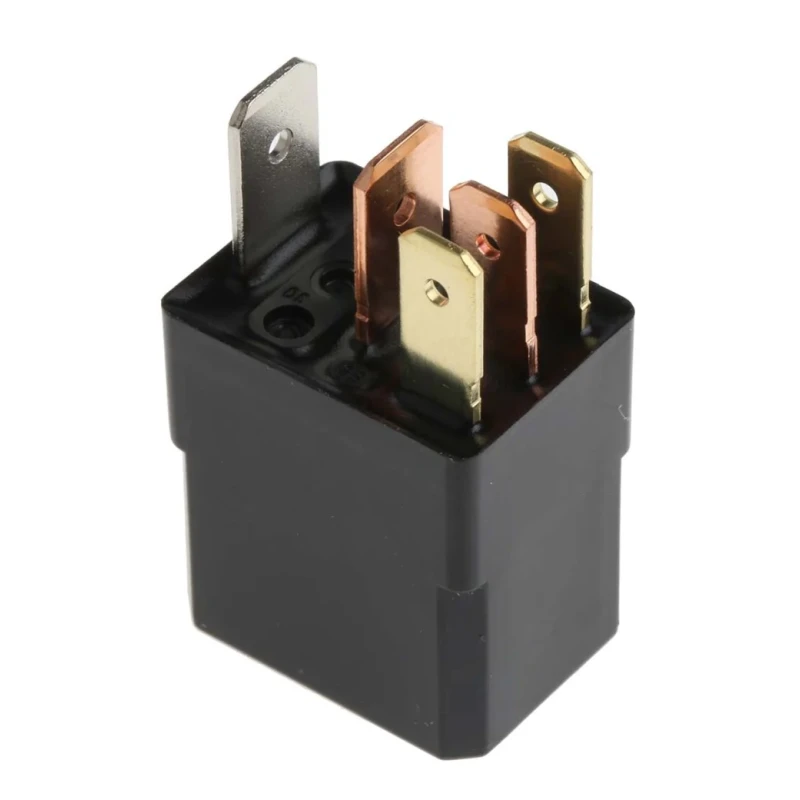

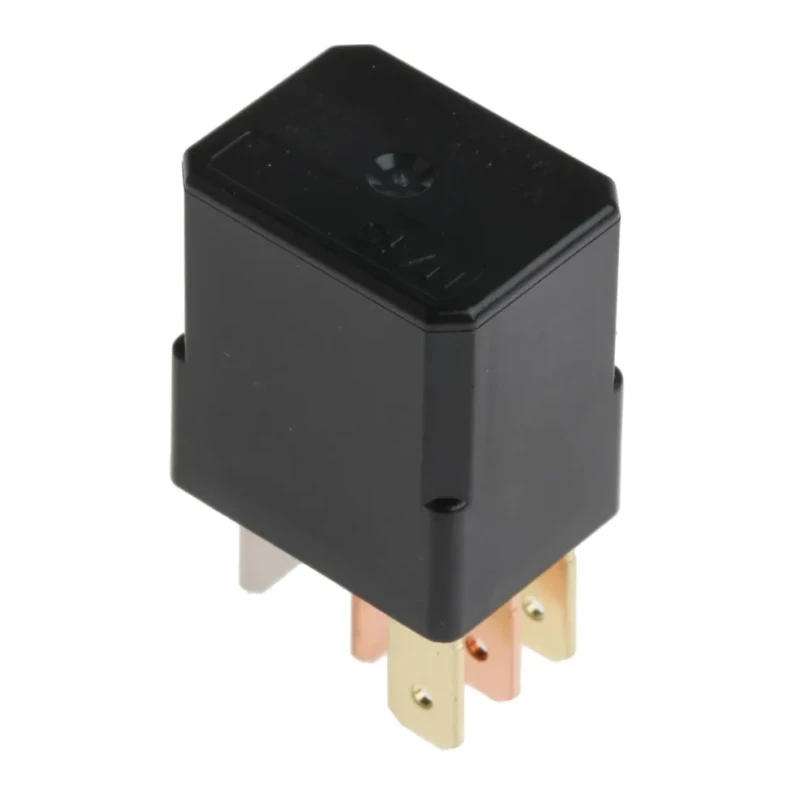

Panasonic Automotive Plug-in Relay 12V DC Coil Voltage 35A Switching Current SPDT CM1-12V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 22mm |
| Length | 20mm |
| Model | CM1-12V |
| Depth | 15mm |
| Mount Type | Plug-in |
| Contact Material | Silver Alloy |
| Series | CM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Small size | L20 x W15 x H22 mm |
| Minimum Operating Temperature | -40°C |
| Terminal type | Plug-In |
| Number of Poles | 1 |
| Coil Resistance | 96Ω |
| Coil Power | 1.5W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Compact micro-ISO size with dimensions L20 x W15 x H22 mm.
- Plug-in mount type with standard ISO terminal arrangement for easy installation.
- Coil power rating of 1.5W and coil resistance of 96Ω ensures reliable operation.
- Silver alloy contacts provide superior conductivity and durability.
- Operating temperature range from -40°C to 85°C for wide environmental tolerance.
- Isolation voltage of 500Vrms between coil and contacts for safe operation.
- Single pole double throw (SPDT) contact configuration suitable for diverse automotive electrical applications.
- Designed for automotive system uses including fan motors, heaters, headlamps, air compressors, EPS, ABS, blower fans, and defoggers.
Product Description
The Panasonic CM1-12V Automotive Plug-in Relay is engineered for high-performance automotive applications, featuring a 12V DC coil voltage and capable of switching currents up to 35A with an SPDT contact configuration. Its compact micro-ISO form factor (20mm length, 15mm depth, 22mm height) facilitates integration into automotive electrical systems where space is a premium.
This relay employs a plug-in mount type with international ISO terminal arrangements, allowing straightforward installation in various settings. The coil consumes 1.5W power and has a coil resistance of 96Ω, delivering precise operational control. Moreover, the silver alloy contact material enhances conductivity and extends service life under rigorous conditions.
Rated for operation across a broad temperature range from -40°C to 85°C, the CM1-12V relay withstands harsh automotive environments. Electrical isolation of 500Vrms between coil and contacts ensures operational safety and reduces interference.
Common industrial and automotive use cases include fan motors, heaters, headlamps, air compressors, electronic power steering (EPS), anti-lock braking systems (ABS), blower fans, and defogger systems. This versatile relay is designed to meet demanding automotive requirements and regulatory standards.
Compact micro-ISO relay with plug-in terminals. Standard ISO terminal layout for compatibility. High-capacity 35A load switching capability. Durable silver alloy contact material. Wide operating temperature range of -40°C to +85°C.
Coil to contact isolation voltage 500Vrms for safety. Applications in various automotive electrical systems. Reliable performance for fan motors, heaters, compressors, and more.
This product is classified under Automotive Relays in the electronics and electricals category on EnvMart. Discover more Panasonic relays and related components for automotive and industrial automation needs in our extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is capable of switching currents up to 35A, making it suitable for various automotive applications.
The relay has compact dimensions of 20mm in length, 15mm in depth, and 22mm in height.
It operates with a 12V DC coil voltage and has a coil power rating of 1.5W.
The CM1-12V features a single pole double throw (SPDT) contact configuration.
This relay can operate in a temperature range from -40°C to 85°C, suitable for harsh environments.
It utilizes a plug-in mount type with a standard ISO terminal arrangement for easy installation.
The coil resistance is 96Ω, which contributes to its operational efficiency.
The contacts are made from silver alloy, which enhances conductivity and durability.
The relay has an isolation voltage of 500Vrms between the coil and contacts, ensuring operational safety.
It is suitable for various automotive applications including fan motors, heaters, headlamps, and air compressors.
This product is manufactured in India.
The compact micro-ISO size facilitates integration into automotive electrical systems where space is limited.
