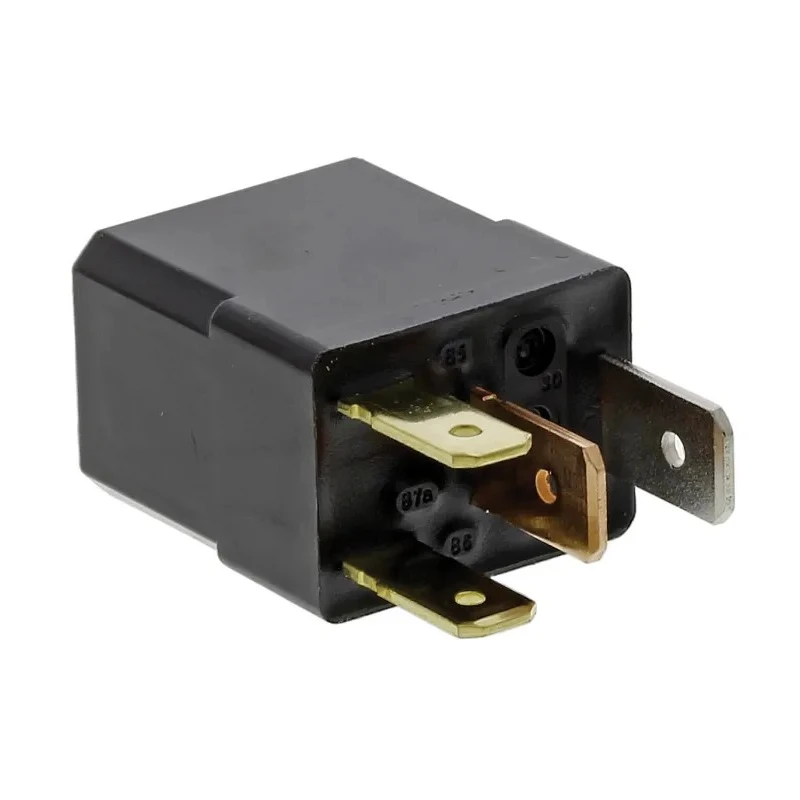

Panasonic Automotive Relay 12V DC Coil Voltage 35A Switching Current SPST CM1A-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 22mm |
| Length | 20mm |
| Model | CM1A-12V |
| Depth | 15mm |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Small size | L20 x W15 x H22 mm |
| Minimum Operating Temperature | -40°C |
| Terminal type | Plug-In |
| Number of Poles | 1 |
| Coil Resistance | 96Ω |
| Coil Power | 1.5W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Compact size of 20mm length, 15mm width, and 22mm height for space-saving installation.
- Coil power consumption of 1.5W with coil resistance of 96 ohms.
- High thermal resistance up to 125°C and operational temperature range from -40°C to 85°C.
- Silver alloy contact material ensures durability and conductivity.
- Plug-In terminal type with 1 pole and SPST contact configuration.
- Offers isolation of 500Vrms between coil and contacts.
- Suitable for automotive systems including fan motors, heaters, air compressors, and engine applications.
- Micro-ISO terminal design meeting international ISO standards.
Product Description
Panasonic CM1A-12V automotive relay features a 12V DC coil voltage and switches up to 35A current with an SPST contact configuration. It is designed as a plug-in mount relay with silver alloy contacts and a sealed protective construction for durability and reliability in harsh environments.
This relay offers a compact form factor measuring 20mm in length, 15mm in depth, and 22mm in height, making it ideal for installations with space constraints. It consumes 1.5W coil power and has a coil resistance of 96 ohms, delivering efficient electrical performance. The relay withstands high thermal stress with resistance up to 125°C and operates in a broad temperature range from -40°C to 85°C.
The device provides excellent isolation of 500Vrms between coil and contacts, ensuring safe operation in automotive electrical systems. Its plug-in terminal type and single-pole single-throw (SPST) contact layout facilitate easy integration. The contact material is silver alloy, maximizing conductivity and wear resistance.
Common applications include use in fan motors, heaters, air compressors, automotive engines, electronic power steering (EPS), anti-lock braking systems (ABS), blower fans, headlamps, and defoggers. The relay complies with micro-ISO terminal standards for broad automotive compatibility, making it a versatile choice for various automotive electronic systems.
Compact micro-ISO plug-in type terminals. High current switching capacity of 35A. Wide operating temperature range suitable for automotive environments. Durable silver alloy contact material. Sealed, high-reliability construction.
Efficient with low coil power consumption. Robust isolation between coil and contacts. Industry standard dimensions for easy replacement and integration.
This Panasonic Automotive Relay CM1A-12V is built for reliability and long service life in industrial and automotive applications. Browse EnvMart's relation electronics & electricals category for more automotive-related relay solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
It can switch up to 35A current.
This model has a compact size of 20mm in length, 15mm in depth, and 22mm in height.
The relay features a single-pole single-throw (SPST) contact configuration.
It operates within a temperature range of -40°C to 85°C.
It uses a plug-in terminal type for easy installation.
The contact material is silver alloy, which enhances conductivity and durability.
The coil resistance is 96 ohms.
It offers an isolation of 500Vrms between the coil and contacts.
It is suitable for automotive systems including fan motors, heaters, air compressors, and engine applications.
The coil power consumption is 1.5W.
The relay is manufactured in Japan.
