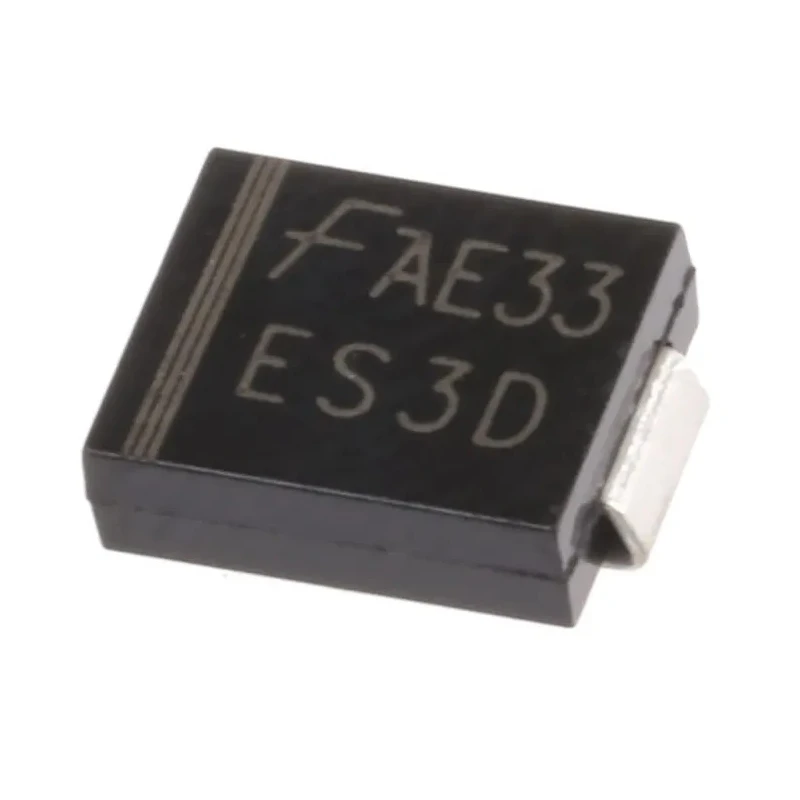

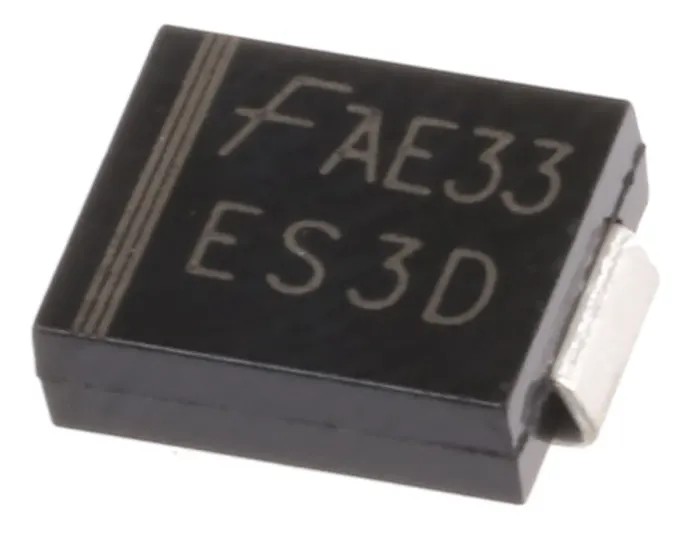

onsemi 200 V 3 A Switching Diode Surface Mount DO-214AB Package ES3D
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.45mm |
| Length | 7.15mm |
| Model | ES3D |
| Width | 6.25mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -50°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 950mV |
| Peak Reverse Recovery Time trr | 20ns |
Key Features
- This diode features a maximum forward voltage of 950 mV.
- Peak reverse repetitive voltage is rated at 200 V.
- It supports a peak non-repetitive forward surge current of 100 A.
- Designed for surface mount applications with a compact 2-pin DO-214AB package.
- Operates efficiently within the temperature range of -50°C to 150°C.
- Peak reverse current is very low at 10 μA, enhancing circuit reliability.
- Has a rapid peak reverse recovery time of 20 ns suitable for high-speed switching.
- Non-automotive standard device without additional certifications.
Product Description
onsemi ES3D is a high-performance switching diode designed for electronic and power applications requiring reliable switching at voltages up to 200 V and currents up to 3 A. Encapsulated in a compact DO-214AB (SMC) surface mount package with 2 pins, it facilitates easy PCB mounting and space-saving layouts.
This single diode configuration offers a maximum forward voltage of 950 mV, ensuring efficient conduction with minimal losses. It can withstand a peak non-repetitive forward surge current of 100 A, providing robustness against transient conditions.
The device operates within a wide temperature range of -50°C to 150°C, making it suitable for applications in industrial, automotive (non-certified) and general electronic circuit designs. Its low peak reverse current of 10 μA helps reduce leakage, while a quick 20 ns reverse recovery time supports high-speed switching operations.
Mechanical dimensions of the ES3D include height 2.45 mm, length 7.15 mm, and width 6.25 mm, facilitating integration into compact electronic assemblies. Although it lacks formal standards approvals, the diode meets typical quality and reliability requirements for semiconductors.
This switching diode enables enhanced efficiency in power rectification and switching circuits. Ideal for use in power supplies, inverters, converters, and circuitry requiring robust diode performance. Surface mount design supports automated assembly and high-density PCB layouts.
Compact footprint suits modern electronics demanding miniaturization. onsemi brand reliability ensures consistent product quality for industrial electronics.
Available for purchase as an individual component or in bulk packs, the ES3D diode serves engineers and manufacturers seeking dependable semiconductor switching solutions. Explore more semiconductor devices on EnvMart for your electronic design and production needs.
