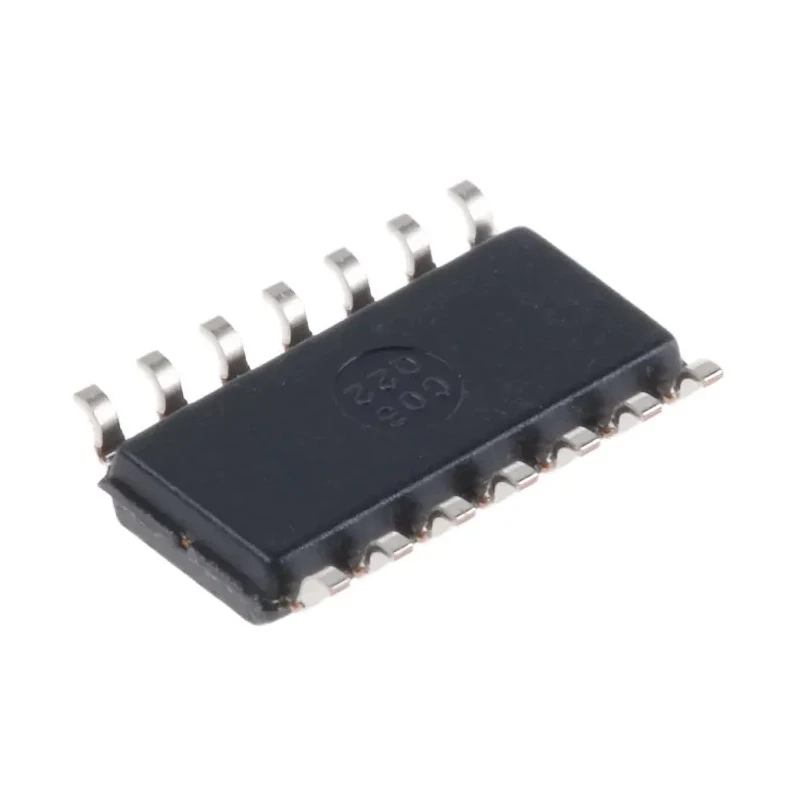

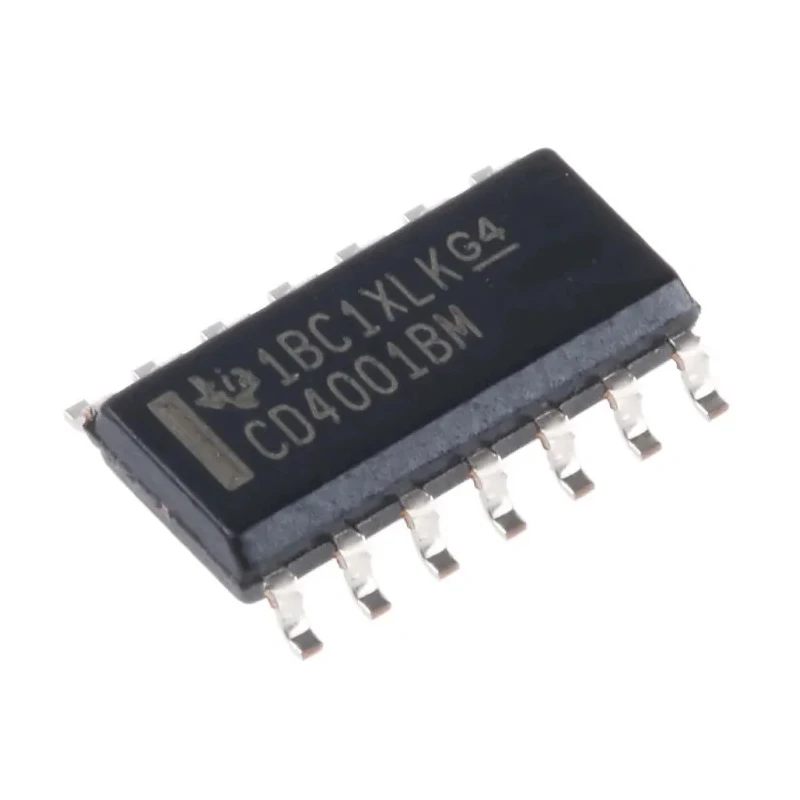

Texas Instruments 4 2-Input NOR Logic Gate, 14-Pin SOIC CD4001BM

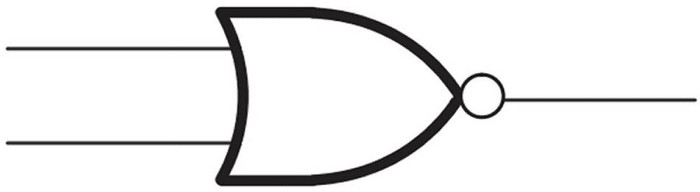

Texas Instruments CD4001BM 4 2-Input NOR Logic Gate in a 14-Pin SOIC package is a CMOS logic device widely used in industrial, commercial, and laboratory electronic applications for performing NOR logic operations. The device contains four independent 2-input NOR gates, providing versatility in digital circuit design and logic signal processing.

Operating over a broad voltage range from 3V up to 18V allows integration in various systems requiring low power consumption and high noise immunity. Its compact dimensions of 1.58 mm height and 8.65 mm length, together with the SOIC surface mount packaging, enable high-density PCB layouts, suitable for modern electronics manufacturing processes.

The device features a maximum propagation delay time of 90 nanoseconds at capacitive load, supporting moderate speed digital functions. With an operating temperature range from -55°C to 125°C, it is suitable for demanding environmental conditions found in industrial controls and instrumentation. Output currents of ±4.2 mA ensure sufficient driving capability for typical logic loads.

Non-Schmitt trigger CMOS inputs maintain standard logic behavior to interface cleanly with other CMOS logic families. The product is part of the CD40 series of Texas Instruments 4000 CMOS logic gates, well-known for their reliability and robustness.

This device provides 4 independent 2-input NOR gates. Wide operating voltage range from 3V to 18V enhances flexibility. Compact SOIC package facilitates automated PCB assembly. Robust operating temperature range from -55°C to 125°C.

Low propagation delay of 90 nanoseconds at load capacitance. Output type buffer suits diverse logic output requirements. Maximum output currents ±4.2 mA support effective signal driving. Compatible with 4000 series CMOS logic family specifications.

This Texas Instruments CD4001BM Logic Gate is ideal for electronic design in automation, industrial control systems, educational laboratory setups, and various semiconductor circuit applications. Explore the full range of semiconductor products and logic ICs available at EnvMart for your precise engineering needs.
