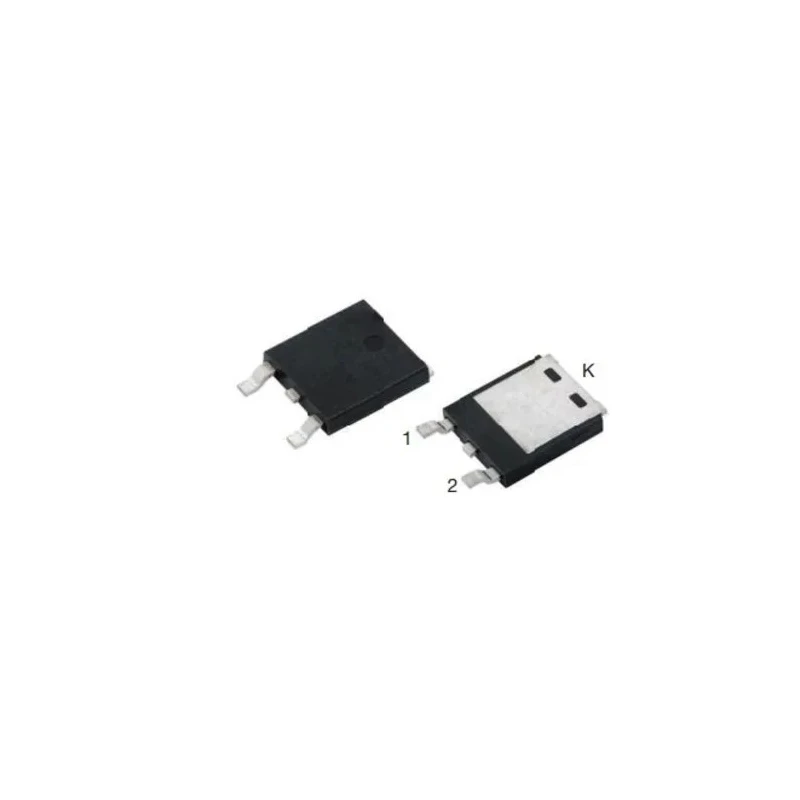

Vishay 45 V 20 A Rectifier & Schottky Diode Surface Mount TO-252 Package V20PW45CHM3/I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.3mm |
| Length | 9.4mm |
| Model | V20PW45CHM3/I |
| Width | 6.32mm |
| Mount Type | Surface |
| Series | TMBS |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS and AEC-Q101, JESD 201 Class 2 whisker test |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 0.6V |
Key Features
- Maximum continuous forward current of 20 A ensures robust power handling.
- Peak reverse repetitive voltage rating of 45 V suits low voltage applications.
- Surface mount TO-252 package with compact dimensions provides space savings on PCB.
- Trench MOS Schottky technology minimizes power losses and heat generation.
- Designed to operate at temperatures from -40°C to 150°C for reliable performance.
- Low typical forward voltage of 0.6 V leads to high efficiency operation.
- Peak non-repetitive forward surge current rating of 150 A offers transient robustness.
- Complies with automotive standard AEC-Q101 ensuring quality and reliability.
Product Description
Vishay V20PW45CHM3/I Rectifier & Schottky Diode is a surface mount 2x common cathode pair Schottky rectifier designed for industrial and automotive electronic applications. With a maximum continuous forward current of 20 A and peak repetitive voltage of 45 V, this device supports high current, low voltage DC/DC converters, freewheeling diode circuits, and polarity protection.
The diode features trench MOS Schottky technology, delivering low forward voltage (0.6 V typical) and reduced power losses for efficient operation. Its TO-252 (DPAK) package provides a thin profile of 1.3 mm height and compact footprint for space-constrained designs. Rated for operation from -40°C to 150°C, it ensures durability in harsh environments.
The device meets automotive reliability standards including AEC-Q101 qualification and RoHS compliance. It also passes JESD 201 Class 2 whisker test to ensure long-term electrical stability. The peak non-repetitive forward surge current rating of 150 A adds transient robustness to the device.
This Vishay component is suitable for industrial power supplies, automotive electronic systems, manufacturing equipment, and other commercial electronics demanding high efficiency and reliable rectification. Its design supports automated PCB assembly with MSL level 1 certification for soldering temperature profiles.
Available as a 2x diode common cathode pair in a surface mount package, the V20PW45CHM3/I is a versatile and robust choice for power rectification needs in electronics manufacturing and laboratories.
Maximum continuous forward current of 20 A. Peak repetitive reverse voltage of 45 V. Low forward voltage drop via trench MOS Schottky technology. Compact TO-252 surface mount package with 9.4 mm length and 6.32 mm width.
Wide operating temperature range from -40°C to 150°C. Automotive standard compliant (AEC-Q101). RoHS compliant and tested for whisker performance. Explore more industrial-grade Schottky diode rectifiers and power semiconductor devices at EnvMart for your electronic component sourcing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the V20PW45CHM3/I is 20 A.
It has a peak reverse repetitive voltage rating of 45 V, making it suitable for low voltage applications.
The typical forward voltage drop for this diode is 0.6 V, which contributes to its high efficiency operation.
The TO-252 package has dimensions of 9.4 mm in length, 6.32 mm in width, and a height of 1.3 mm.
This model operates within a temperature range of -40°C to 150°C, ensuring reliable performance in various environments.
The peak non-repetitive forward surge current rating for this diode is 150 A, providing transient robustness.
Yes, it complies with the automotive standard AEC-Q101, ensuring quality and reliability for automotive applications.
It features a 2x common cathode pair diode configuration, suitable for various applications.
The V20PW45CHM3/I is RoHS compliant and has passed the JESD 201 Class 2 whisker test for long-term electrical stability.
It is suitable for industrial power supplies, automotive electronic systems, and other commercial electronics requiring high efficiency and reliable rectification.
This model utilizes a surface mount design, which facilitates automated PCB assembly.
It employs trench MOS Schottky technology, which helps reduce power losses and heat generation during operation.
