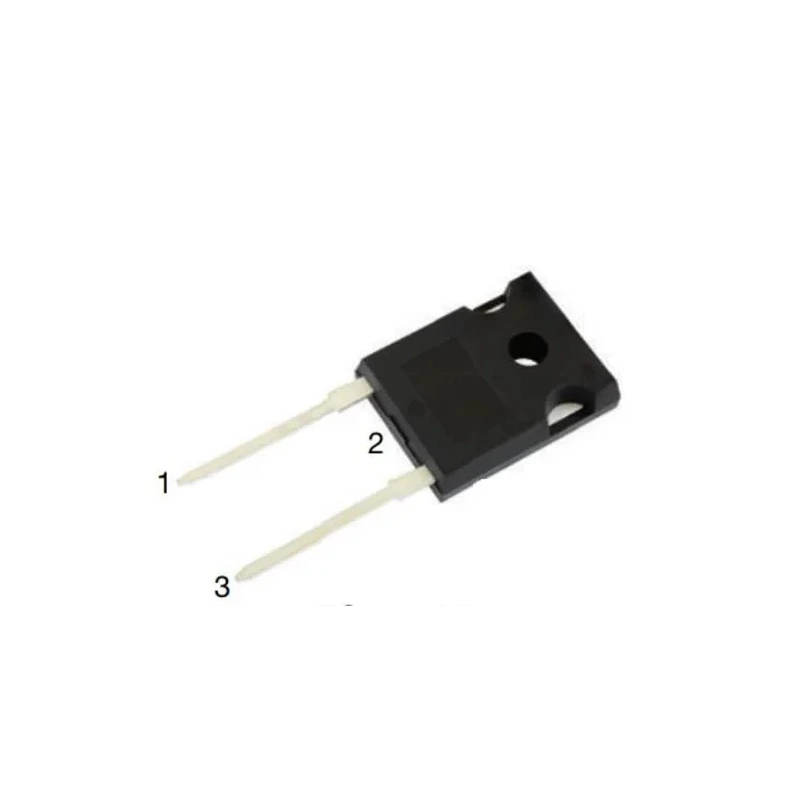

Vishay 600 V 150 A Rectifier & Schottky Diode General Purpose TO-247AD 2L VS-E5PX7506LHN3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-E5PX7506LHN3 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD 2L |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 150A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 565A |
| Maximum Forward Voltage Vf | 2.2V |
| Peak Reverse Recovery Time trr | 75ns |
Key Features
- Mount type is Through Hole with TO-247AD 2L package.
- Maximum forward voltage is 2.2 V ensuring efficiency in power applications.
- Operates reliably between -55°C and 175°C operating temperature range.
- Peak non-repetitive forward surge current is rated at 565 A.
- Peak reverse recovery time is 75 ns, suitable for high-speed switching.
- Compliant with RoHS standards for environmental safety.
- Single diode configuration optimized for general purpose rectification.
- Designed for use in medium frequency hard switching and soft switched resonant converters.
Product Description
Vishay VS-E5PX7506LHN3 is a high-performance 600 V, 150 A Rectifier & Schottky Diode designed for general purpose applications requiring efficient power conversion and high reliability. Packaged in a robust TO-247AD 2L through-hole format, it provides excellent thermal and electrical characteristics suitable for industrial, automotive, and power electronics sectors.
This device delivers best-in-class forward voltage drop of 2.2 V and optimized switching losses, making it ideal for use in high-speed switching applications such as resonant and soft-switched converters. It boasts a peak reverse recovery time of only 75 ns, ensuring minimal switching losses and heat generation during operation.
The operating temperature range from -55°C to 175°C enables performance stability under demanding environmental conditions. The diode can handle peak non-repetitive surge currents up to 565 A, offering robustness during transient load conditions.
Compliant with RoHS directives, the VS-E5PX7506LHN3 is engineered to meet modern environmental standards without compromising performance. It is especially optimized for LLC output rectification stages found in EV and HEV onboard battery chargers and meets stringent AEC-Q101 qualifications including JESD 201 class 1A whisker testing.
Through hole mount, TO-247AD 2L package ensures secure mechanical installation. Maximum continuous forward current of 150 A supports high power applications. Peak reverse repetitive voltage of 600 V for reliable blocking capability.
Single diode configuration suitable for a variety of rectification needs. Hyperfast diode with optimized Qrr to balance conduction and switching losses. Provides high efficiency in hard and soft switching power conversion stages.
Wide temperature range operation for industrial and automotive applications. RoHS compliant and automotive grade certified for quality assurance.
This Vishay rectifier and Schottky diode is applicable in industrial power supplies, renewable energy systems, electric vehicle charging stations, and other commercial electronic applications requiring fast switching and efficient power handling.
Explore the full range of semiconductor and power components at EnvMart for comprehensive industrial solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 175°C.
This diode has a peak reverse repetitive voltage rating of 600 V.
It can handle a maximum continuous forward current of 150 A.
The package type is TO-247AD 2L, designed for through-hole mounting.
The peak non-repetitive forward surge current is rated at 565 A.
The maximum forward voltage drop is 2.2 V, ensuring efficiency in power applications.
The peak reverse recovery time is 75 ns, suitable for high-speed switching applications.
It operates reliably between -55°C and 175°C.
Yes, it is compliant with RoHS standards for environmental safety.
This model features a single diode configuration optimized for general purpose rectification.
It is applicable in industrial power supplies, renewable energy systems, and electric vehicle charging stations.
It is a general purpose rectifier and Schottky diode designed for efficient power conversion.
