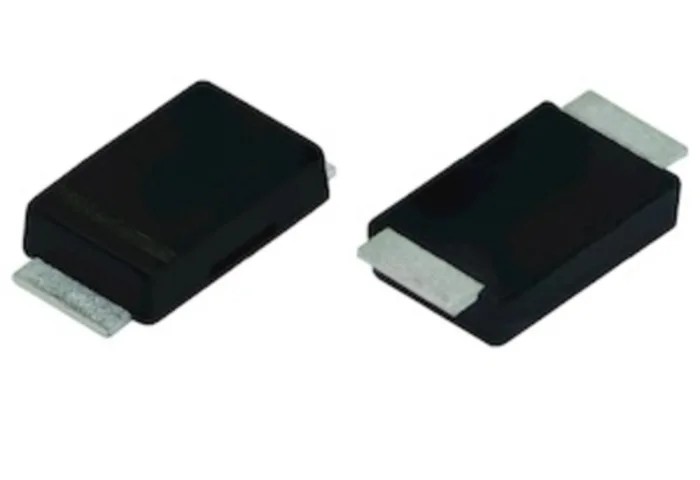

Vishay 150 V 2 A Schottky Barrier Rectifier 2-Pin DO-221AD VSS8D2M15-M3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5mm |
| Model | VSS8D2M15-M3/H |
| Mount Type | Surface |
| Series | VSS8D2M15 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221AD |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.64V |
Key Features
- Offers low forward voltage drop of 0.64 V for improved efficiency.
- Features a maximum non-repetitive forward surge current of 50 A.
- Operates reliably between -40°C and 175°C for extended temperature range.
- Surface mount package suitable for automated assembly processes.
- Complies with RoHS and automotive AEC-Q101 standards for quality assurance.
- Designed for switching, polarity protection, and DC/DC converter applications.
- Manufactured in China ensuring standardized production quality.
Product Description
Vishay VSS8D2M15-M3/H is a Schottky Barrier Rectifier diode designed for high-frequency switching and low voltage drop applications. It supports a maximum continuous forward current of 2 A and a peak reverse voltage of 150 V in a surface mount DO-221AD package.
The diode features a maximum forward voltage drop of 0.64 V, contributing to low power loss and improved efficiency in circuits. It withstands surge currents up to 50 A, making it suitable for transient load conditions.
Operating temperature range from -40°C to 175°C allows robust performance in demanding industrial, automotive, and commercial environments. Its compliance with RoHS and the automotive standard AEC-Q101 ensures reliable quality and environmental safety.
The compact physical size, with a length of 5 mm and height of 2.7 mm, supports space-saving PCB designs and automated placement in manufacturing. Low forward voltage drop minimizes power dissipation. High surge current capability provides transient endurance.
Wide operating temperature range suits harsh environments. Surface mount capability enhances assembly efficiency. Designed according to automotive AEC-Q101 for critical applications. RoHS compliance for environmental safety.
Compact DO-221AD package for versatile electronic designs. High reliability for DC/DC converter, inverter, and polarity protection usage.
This Schottky barrier diode is ideal for usage in industrial electronics, automotive systems, power supplies, and high-frequency switching circuits, offering efficient performance and durability.
Explore more semiconductor components and Vishay products on EnvMart for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VSS8D2M15-M3/H Schottky diode is 2 A.
This model has a peak reverse repetitive voltage rating of 150 V.
It features a maximum forward voltage drop of 0.64 V, which contributes to low power loss.
The operating temperature range for this diode is from -40°C to 175°C.
It is packaged in a surface mount DO-221AD package, suitable for automated assembly processes.
The diode can withstand a maximum non-repetitive forward surge current of 50 A.
This diode complies with the automotive standard AEC-Q101, ensuring quality for automotive applications.
The dimensions are 5 mm in length and 2.7 mm in height.
It is designed for switching, polarity protection, and DC/DC converter applications.
Yes, the Vishay VSS8D2M15-M3/H is compliant with RoHS standards for environmental safety.
This model is a single diode configuration.
It is manufactured in China, ensuring standardized production quality.
