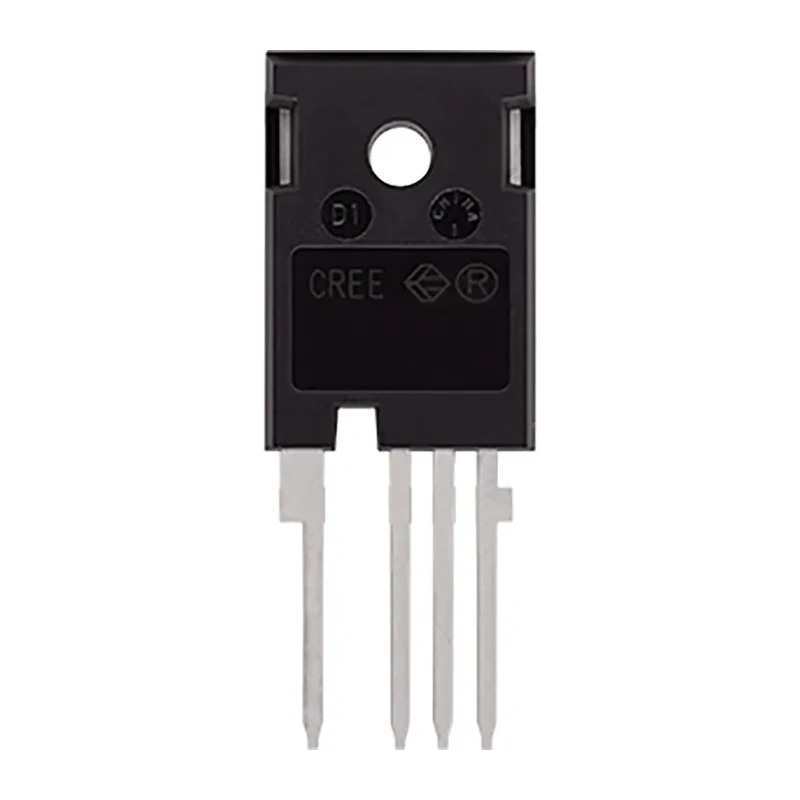

Wolfspeed N-Channel MOSFET, 63 A Continuous Drain Current, 1.2 kV Drain-Source Voltage, 283W Power Dissipation C3M0032120K

Free Delivery in India | Lowest Global Shipping Charges

Wolfspeed N-Channel MOSFET, 63 A Continuous Drain Current, 1.2 kV Drain-Source Voltage, 283W Power Dissipation C3M0032120K

Name: Wolfspeed N-Channel MOSFET, 63 A Continuous Drain Current, 1.2 kV Drain-Source Voltage, 283W Power Dissipation C3M0032120K
Brand: Wolfspeed
SKU: 304846
Price: 3300.47 INR
Availability: InStock



Category MOSFET Brand Wolfspeed Condition New

Specifications

Country of Origin	China
Brand	Wolfspeed
Height	23.6mm
Length	16.13mm
Model	C3M0032120K
Width	5.21mm
Mount Type	Through Hole
Maximum Operating Temperature	175°C
Package Type	TO-247
Minimum Operating Temperature	-40°C
Pin Count	4
Channel Type	N
Maximum Continuous Drain Current Id	63A
Maximum Drain Source Voltage Vds	1.2kV
Maximum Drain Source Resistance Rds	32mΩ
Channel Mode	Enhancement
Maximum Power Dissipation Pd	283W
Typical Gate Charge Qg @ Vgs	118nC
Maximum Gate Source Voltage Vgs	-8, 19V
Forward Voltage Vf	4.6V

Key Features

This enhancement mode MOSFET provides a maximum power dissipation of 283 watts.
The device supports through-hole mounting with a length of 16.13 mm, width of 5.21 mm, and height of 23.6 mm.
It operates efficiently within a temperature range of -40°C to 175°C.
The MOSFET has a low maximum drain-source resistance of 32 milliohms, ensuring minimal power loss.
Typical gate charge at Vgs is 118 nanocoulombs, allowing fast switching characteristics.
The device includes a forward voltage of 4.6 volts and supports gate-source voltages of -8V to +19V.
It is suitable for high voltage and high current applications such as power conversion and motor drives.
Manufactured in China, this MOSFET meets stringent industrial requirements without automotive certification.

Product Description

Wolfspeed C3M0032120K is a high-performance N-Channel MOSFET designed for demanding power electronics applications. Featuring a continuous drain current rating of 63 amperes and a drain-source voltage of 1.2 kilovolts, this device delivers reliable high-voltage operation.

Housed in a durable TO-247 4-pin package suitable for through-hole mounting, the MOSFET offers efficient heat dissipation with a maximum power dissipation capacity of 283 watts. Its physical dimensions of 16.13 mm length, 5.21 mm width, and 23.6 mm height enable integration into standard power modules.

The device operates over a wide temperature range from -40°C to 175°C, making it ideal for harsh industrial environments. Its maximum drain-source resistance of 32 milliohms minimizes on-state losses during conduction, improving overall system efficiency.

With a typical gate charge of 118 nanocoulombs at specified gate voltages, the MOSFET supports fast switching speeds critical for switch-mode power supplies, motor controls, and inverters.

This enhancement MOSFET is designed to optimize performance in solar energy systems and energy storage. It is well suited for electric vehicle charging stations, uninterruptible power supplies (UPS), and motor drive circuits.

The low forward voltage of 4.6 volts enhances energy efficiency and reduces heat generation. Low-impedance packaging with a Kelvin source pin and over 8 mm of creepage distance between drain and source supports safety and electrical insulation standards.

Manufactured in China, conforming to industry standards for quality and performance.

With no specific automotive approvals, Wolfspeed C3M0032120K remains an excellent choice for high-reliability industrial and commercial power management applications. Enrich your design portfolio with this robust MOSFET offering enhanced switching and thermal capabilities.
