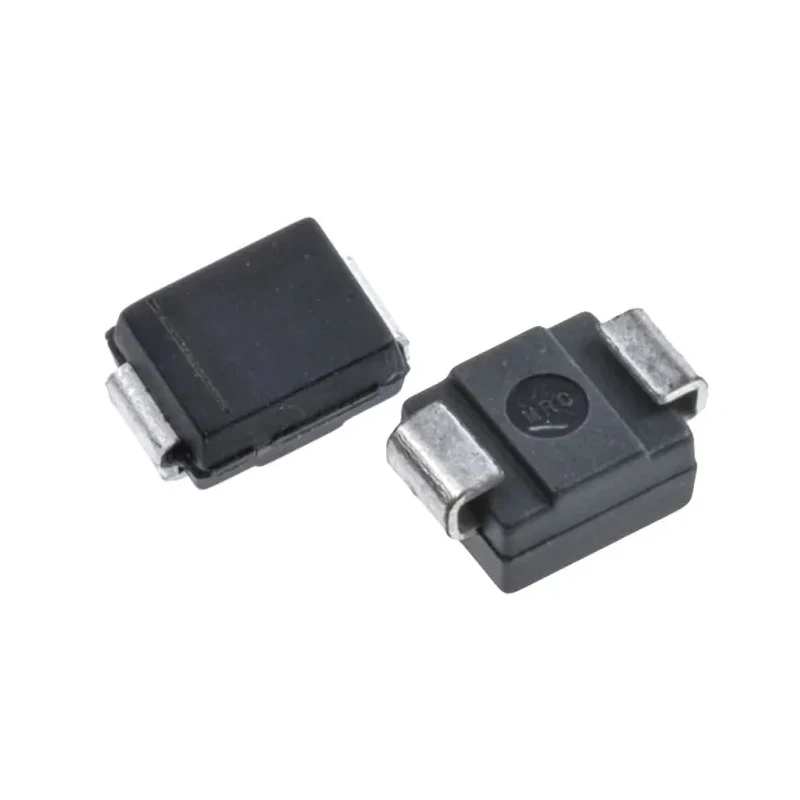

onsemi 50 V 2 A Surface Mount Schottky Diode 2-Pin DO-214AA SS25

onsemi SS25 is a surface mount Schottky diode with a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 50 V. Packaged in a compact DO-214AA 2-pin format, this diode is engineered for high efficiency and low power dissipation, making it suitable for a variety of industrial electronic applications.

The device features a low forward voltage of 0.7 V which reduces power losses during conduction. Its robust temperature tolerance from -65°C to 125°C allows it to function reliably in demanding environments.

Featuring a glass-passivated junction and clip bonded leg structure, the SS25 diode delivers excellent thermal performance and low electrical resistance. The package dimensions are 4.75 mm in length, 3.95 mm in width, and 2.45 mm in height.

This Schottky Diode is well-suited for general purpose use in power rectification, including free wheeling diodes for inductive loads, secondary rectification in power supplies, and reverse polarity protection in electronic circuits.

The diode supports a maximum continuous forward current of 2 amps. It has a peak reverse repetitive voltage rating of 50 volts. The forward voltage drop is limited to 0.7 volts for efficiency. Temperature operating range is broad, from -65°C to 125°C for versatility.

Compact DO-214AA package ideal for space-efficient surface mount assembly. Glass-passivated junctions increase device reliability. Peak non-repetitive forward surge current capability of 50 amps ensures high transient tolerance.

The diode is configured with 2 pins for simple integration.

This product is essential in industrial electronics, power conversion, automotive systems, and electronic manufacturing applications needing reliable rectification with minimal losses. Consider browsing more semiconductor and diode components in the Electronics & Electrical section at EnvMart for complementary solutions.
