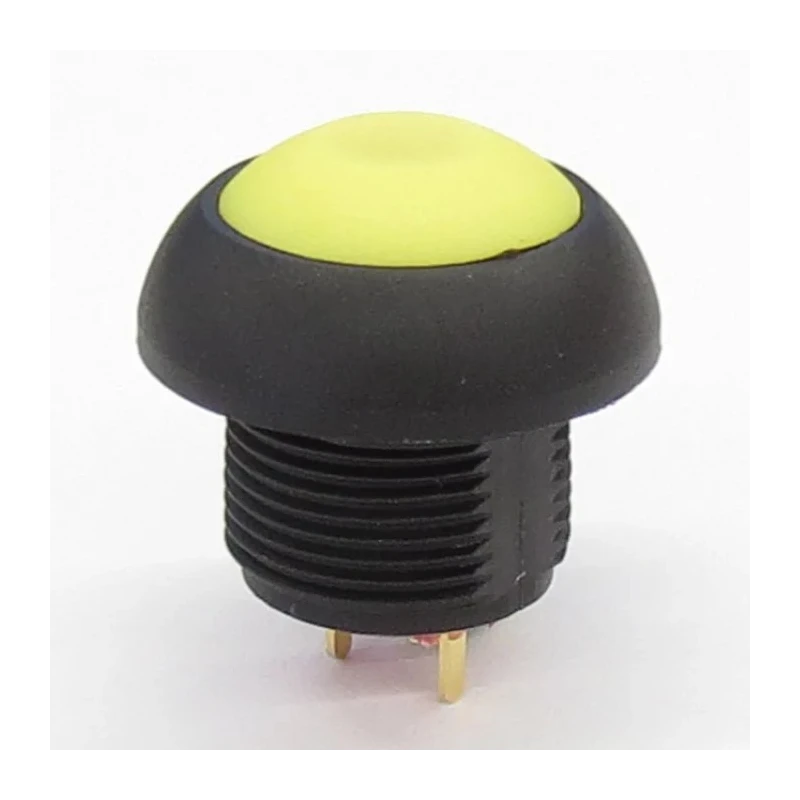

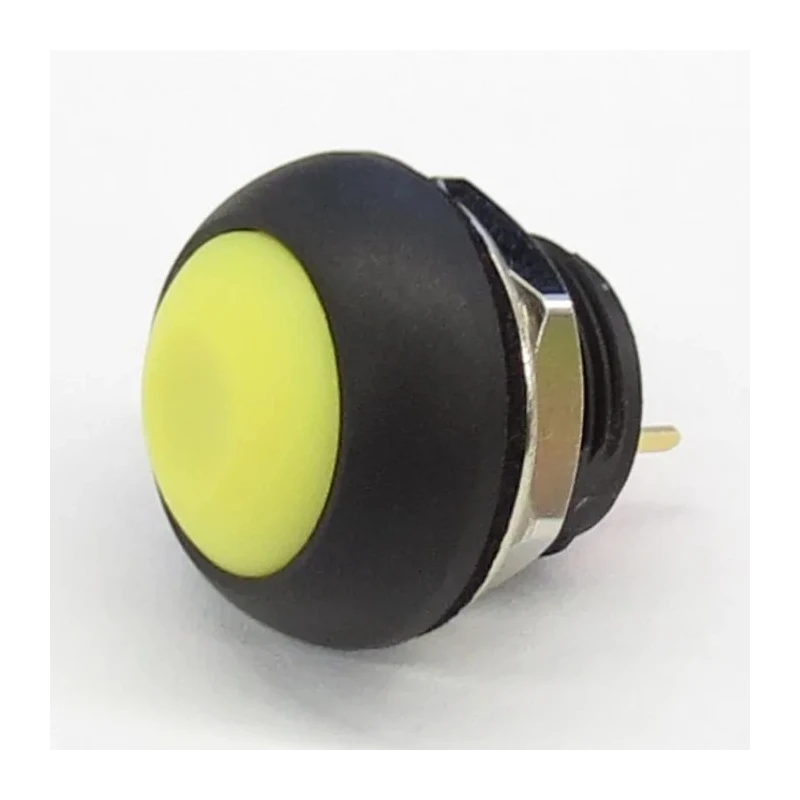

RS PRO Push Button Switch Momentary Panel Mount Yellow LED IP67 50 V dc 144-4359
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 144-4359 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | PC Pin |
| LED Colour | Yellow |
| Switch Operation | Momentary |
| Actuator Colour | Yellow |
| Contact DC Voltage | 50V dc |
| Actuator Style | Round |
| Switch Contact Current | 100, 125, 200, 400, 500mA |
| Legend | OFF |
| Standards/ApprovalsEN 60529 | 1991+A1:2001, IEC 60529:2001 |
| EN 60529 | 1991+A1:2001, IEC 60529:2001 |
Key Features
- Suitable for industrial environments requiring robust and reliable switch operation.
- Panel cutout size of 13.6 mm diameter for easy installation.
- Supports a DC contact voltage of 50 V for various low voltage applications.
- Operating temperature range from -30°C to 85°C ensuring durability in harsh conditions.
- Round actuator style with yellow color for clear visual indication.
- Switch contact current options include 100, 125, 200, 400, and 500 mA.
- SPST momentary switch operation ideal for momentary control circuits.
- Terminal type is PC Pin ensuring secure electrical connections.
Product Description
RS PRO 144-4359 Push Button Switch is a high-quality momentary panel mount switch designed for industrial, automation, and electrical control applications. Featuring a yellow round actuator and an IP67 rated enclosure, this switch is highly resistant to dust and water, making it ideal for harsh environments such as industrial processing plants, heavy-duty equipment, and arcade machines.
The switch cuts out a 13.6 mm diameter panel hole and operates as a Single Pole Single Throw (SPST) momentary push button with a contact DC voltage rating of 50 V. It supports multiple current ratings ranging from 100 mA up to 500 mA, accommodating various low power control circuits commonly used in industrial automation and electrical control panels.
This switch is engineered to operate reliably over a wide temperature range of -30°C to 85°C, which ensures sustained functionality under extreme environmental conditions. The actuator and LED are both yellow in color, providing clear and instantaneous visual feedback when the switch is actuated.
The terminal type is PC Pin, ensuring robust and secure electrical connections in panel mount installations. The IP67 protection rating certifies that the device is fully dust tight and capable of withstanding water immersion, making it suitable for use in demanding industrial applications.
Momentary push button switch with SPST contact configuration. Yellow round actuator color with matching yellow LED illumination. Panel cutout size of 13.6 mm diameter for compatibility with standard cutouts. IP67 ingress protection for resistance against dust and water.
Operating temperature range from -30°C to 85°C for extreme condition endurance. Contact DC voltage of 50 V suitable for low voltage control circuits. Switch contact current ratings from 100 mA up to 500 mA for versatile applications.
PC Pin terminal type for secure electrical connections in panel mount applications. Complies with EN 60529 and IEC 60529 IP rating standards, ensuring reliability and quality.
This RS PRO push button switch 144-4359 is an excellent choice for engineers and technicians requiring a durable, reliable, and highly visible momentary switch for industrial machines, control panels, arcade equipment, and other applications where dust and moisture resistance is critical.
Explore EnvMart's extensive range of Push Button Switches and electrical components to find the ideal solutions for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This switch requires a panel cutout size of 13.6 mm in diameter for installation.
The switch features a Single Pole Single Throw (SPST) contact configuration.
It has a contact DC voltage rating of 50 V, suitable for low voltage applications.
The switch supports contact current ratings of 100 mA, 125 mA, 200 mA, 400 mA, and 500 mA.
This model uses PC Pin terminals for secure electrical connections.
The push button switch has an IP67 rating, making it resistant to dust and water immersion.
Both the actuator and the LED are yellow, providing clear visual feedback.
The minimum operating temperature for this switch is -30°C.
This push button switch is manufactured in India.
It complies with EN 60529 and IEC 60529 standards for ingress protection ratings.
This model operates as a momentary switch, ideal for momentary control circuits.
