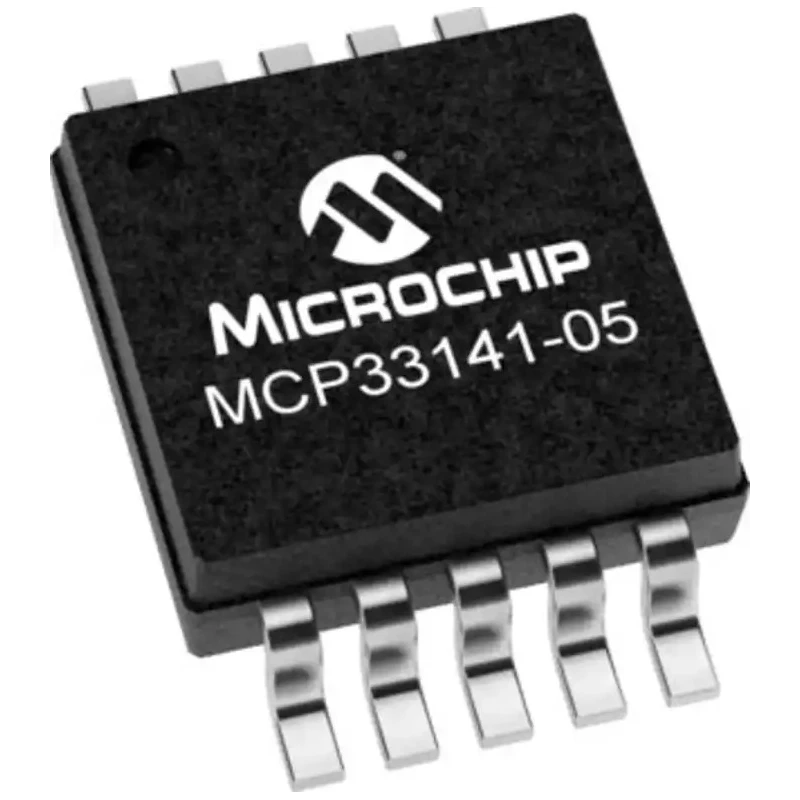

Microchip 14 bit SAR Architecture Single ADC 500ksps Serial Interface Surface Mount ADC MCP33141-05-E/MS
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 14 bit |
| Brand | Microchip |
| Height | 1.1mm |
| Length | 3mm |
| Model | MCP33141-05-E/MS |
| Mount Type | Surface |
| Sampling rate | 500ksps |
| Series | MCP33151/41-XX |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial |
| Architecture | SAR |
| Standards/Approvals | AEC-Q100 |
| Pin Count | 10 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Number of ADCs | 1 |
Key Features
- High resolution 14 bit successive approximation register (SAR) architecture ADC.
- Single input ADC with 500,000 samples per second (ksps) conversion rate.
- Standard 10-pin MSOP small package with serial SPI interface.
- Wide operating temperature range from -40°C to 125°C.
- Low power consumption suitable for battery powered and remote applications.
- Maximum supply voltage of 5.5V supporting automotive industry standards.
- Ideal for automotive, industrial, medical instrumentation, and motor control systems.
- Compliant with AEC-Q100 automotive standard ensuring reliability in harsh environments.
Product Description
Microchip MCP33141-05-E/MS is a high performance 14-bit Analog-to-Digital Converter (ADC) based on SAR architecture. Featuring a single-ended input with a sampling rate of 500ksps, this ADC offers precise and rapid signal conversion ideal for demanding applications.
The device is housed in a compact 10-pin MSOP surface mount package measuring 3mm in length and 1.1mm in height, making it suitable for space-constrained designs.
Operating over a wide temperature range from -40°C to 125°C, it fulfills rigorous automotive AEC-Q100 standards, ensuring durability in harsh environments such as automotive battery management systems, motor control, and medical instrumentation.
Power consumption is minimized, boasting a typical active current of 0.33mA and a standby current as low as 1.5μA, making it highly efficient for battery-operated systems and remote data acquisition.
The MCP33141-05-E/MS utilizes a standard serial SPI interface, enabling seamless integration with PIC microcontrollers and other digital systems. High precision 14-bit resolution using SAR architecture. Single ADC channel with 500,000 samples per second speed.
Surface mount 10-pin package for compact designs. Wide temperature operating range meeting automotive requirements. Low power consumption for extended battery life. Maximum operating voltage of 5.5V for flexibility. AEC-Q100 compliance for automotive and industrial robustness.
Applications include medical instrumentation, EV battery management, and industrial motor control.
This ADC is ideal for industrial automation, automotive systems, medical devices, and other environments requiring precise analog signal conversion under strict operating conditions.
Explore the Microchip range and other semiconductor components on EnvMart for reliable industrial and automotive solutions.
Explore more products in our Analogue to Digital Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sampling rate of this model is 500,000 samples per second (ksps).
It features a resolution of 14 bits, allowing for high precision in analog signal conversion.
This model has a single-ended input type, suitable for various applications requiring analog signal conversion.
The MCP33141-05-E/MS operates over a wide temperature range from -40°C to 125°C, making it suitable for harsh environments.
The maximum supply voltage for the MCP33141-05-E/MS is 5.5V, providing flexibility in various applications.
It utilizes a standard serial SPI interface, allowing for easy integration with microcontrollers and digital systems.
This ADC has a length of 3mm and a height of 1.1mm, making it suitable for compact designs.
Yes, it is compliant with the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
The typical active current consumption is 0.33mA, which is beneficial for battery-powered applications.
This ADC is ideal for applications in automotive systems, medical instrumentation, and industrial motor control.
This model features a single ADC channel, designed for specific analog signal conversion tasks.
It has a surface mount type, which is advantageous for space-constrained designs.
